ID
1405810
$ 23.53
1-2 weeks delivery time
-
+

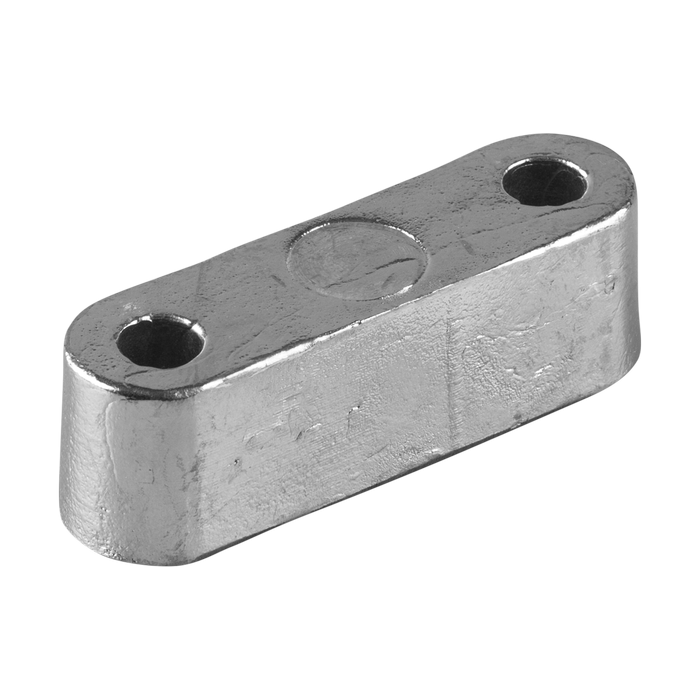

The Tecnoseal 02521AL is an aluminium sacrificial short bar anode designed for Hamilton Jet HJ274, HJ322 and HJ362 waterjet propulsion systems, corresponding to OEM part number 203124. It features an elongated body with rounded ends and two mounting holes, measuring 79 mm (3.11 in) in length, 23 mm (0.91 in) in width and 25 mm (0.98 in) in height. The mounting holes have a diameter of 10.5 mm (0.41 in) and are spaced 57 mm (2.24 in) centre-to-centre. Weighing 0.12 kg (0.26 lbs), this aluminium anode provides sacrificial corrosion protection for compatible Hamilton Jet waterjet propulsion components.
- Description
- Ask a Question
-

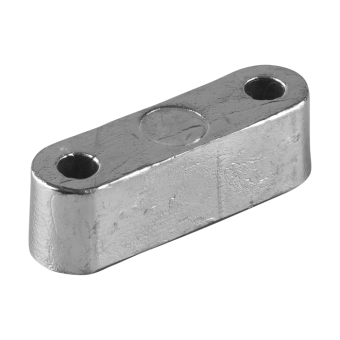

Tecnoseal 203124 Hamilton Jet HJ274/HJ322/HJ362 Short Bar Aluminium Anode 79 mm
The Tecnoseal 02521AL is an aluminium sacrificial short bar anode designed for Hamilton Jet HJ274, HJ322 and HJ362 waterjet propulsion systems. Corresponding to Hamilton Jet OEM part number 203124, this replacement anode helps protect compatible metallic waterjet propulsion components against galvanic corrosion.
The anode features an elongated bar-shaped body with rounded ends and two mounting holes. According to the Tecnoseal catalogue, it measures 79 mm (3.11 in) in overall length, 23 mm (0.91 in) in width and 25 mm (0.98 in) in height. The mounting holes have a diameter of 10.5 mm (0.41 in) and a centre-to-centre spacing of 57 mm (2.24 in).
Manufactured from aluminium, the Tecnoseal 02521AL weighs 0.12 kg (0.26 lbs). Its two-hole mounting configuration is intended for compatible Hamilton Jet waterjet propulsion components.
Technical Specifications
Manufacturer Tecnoseal Product Code 02521AL Product Type Short Bar Sacrificial Anode Compatible Brand Hamilton Jet Compatible Models HJ274, HJ322, HJ362 OEM Reference 203124 Material Aluminium Weight 0.12 kg (0.26 lbs) Length (l) 79 mm (3.11 in) Width (a) 23 mm (0.91 in) Height (h) 25 mm (0.98 in) Mounting Hole Spacing (i) 57 mm (2.24 in) Mounting Hole Diameter (Ø) 10.5 mm (0.41 in) EAN 8058774839007
Dimensions and Mounting
- Overall Length (l): 79 mm (3.11 in)
- Width (a): 23 mm (0.91 in)
- Height (h): 25 mm (0.98 in)
- Mounting Hole Spacing (i): 57 mm (2.24 in)
- Mounting Hole Diameter (Ø): 10.5 mm (0.41 in)
- Design: Elongated bar with rounded ends and two mounting holes
OEM and Product Cross-References
- Hamilton Jet OEM: 203124
- Tecnoseal Aluminium: 02521AL
Key Features
- Aluminium sacrificial short bar anode for Hamilton Jet waterjet propulsion systems.
- Designed for Hamilton Jet HJ274, HJ322 and HJ362 models.
- 79 x 23 x 25 mm overall dimensions.
- Two mounting holes with 57 mm centre-to-centre spacing.
- 10.5 mm mounting hole diameter.
- Corresponds to Hamilton Jet OEM part number 203124.
- Helps protect compatible metallic waterjet propulsion components against galvanic corrosion.
Compatibility: Designed for Hamilton Jet HJ274, HJ322 and HJ362 waterjet propulsion systems, corresponding to OEM reference 203124. Verify the existing anode dimensions, 57 mm mounting hole spacing and 10.5 mm mounting hole diameter before ordering.
-
