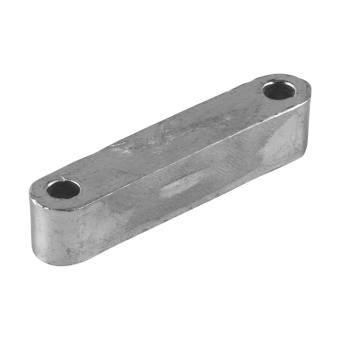

Tecnoseal 104634 Hamilton Jet HJ291/HJ364 Long Bar Anode 98 mm

Name: Tecnoseal 104634 Hamilton Jet HJ291/HJ364 Long Bar Anode 98 mm
SKU: Tecnoseal 02520

ID 1405806

$ 34.86

1-2 weeks delivery time

Type:

Zinc
Aluminium

Item:

100 g
220 g

The Tecnoseal 02520 series consists of long bar sacrificial anodes designed for Hamilton Jet HJ291 and HJ364 waterjet propulsion systems, corresponding to OEM part number 104634. Each anode features an elongated body with rounded ends and two mounting holes, measuring 98 mm (3.86 in) in length, 19 mm (0.75 in) in width and 20 mm (0.79 in) in height. The mounting holes have a diameter of 9 mm (0.35 in) and are spaced 80 mm (3.15 in) centre-to-centre. Available in zinc (02520, 0.22 kg / 0.49 lbs) and aluminium (02520AL, 0.10 kg / 0.22 lbs), both versions share identical dimensions and provide sacrificial corrosion protection for compatible Hamilton Jet components.

Description
Ask a Question

Tecnoseal 104634 Hamilton Jet HJ291/HJ364 Long Bar Anode 98 mm – Zinc or Aluminium

The Tecnoseal 02520 series consists of long bar sacrificial anodes designed for Hamilton Jet HJ291 and HJ364 waterjet propulsion systems. These replacement anodes correspond to Hamilton Jet OEM part number 104634 and help protect compatible metallic propulsion components against galvanic corrosion.

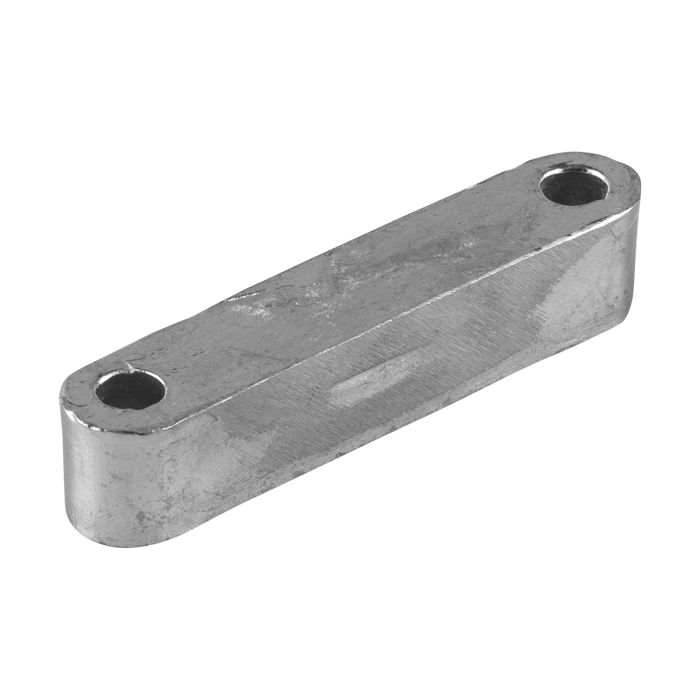

The anode features an elongated bar-shaped body with rounded ends and two mounting holes. It measures 98 mm (3.86 in) in overall length, 19 mm (0.75 in) in width and 20 mm (0.79 in) in height. The mounting holes have a diameter of 9 mm (0.35 in) and a centre-to-centre spacing of 80 mm (3.15 in).

Two material versions are available: zinc (Tecnoseal 02520) and aluminium (Tecnoseal 02520AL). Both versions have identical dimensions and mounting specifications, while their weights differ according to the selected sacrificial material.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Long Bar Sacrificial Anode
Compatible Brand	Hamilton Jet
Compatible Models	HJ291, HJ364
OEM Reference	104634
Available Materials	Zinc, Aluminium
Length (l)	98 mm (3.86 in)
Width (a)	19 mm (0.75 in)
Height (h)	20 mm (0.79 in)
Mounting Hole Spacing (i)	80 mm (3.15 in)
Mounting Hole Diameter (Ø)	9 mm (0.35 in)

Available Versions and Product References

Tecnoseal Code	Material	Weight	EAN
02520	Zinc	0.22 kg (0.49 lbs)	8033837066545
02520AL	Aluminium	0.10 kg (0.22 lbs)	8058774838987

Dimensions and Mounting

Overall Length (l): 98 mm (3.86 in)
Width (a): 19 mm (0.75 in)
Height (h): 20 mm (0.79 in)
Mounting Hole Spacing (i): 80 mm (3.15 in)
Mounting Hole Diameter (Ø): 9 mm (0.35 in)
Design: Elongated bar with rounded ends and two mounting holes

Tecnoseal 02520 – Zinc Long Bar Anode

The Tecnoseal 02520 is the zinc version of the Hamilton Jet long bar anode. Designed for HJ291 and HJ364 waterjet propulsion systems, it measures 98 x 19 x 20 mm and features two 9 mm mounting holes spaced 80 mm apart.

Material: Zinc
Weight: 0.22 kg (0.49 lbs)
OEM Reference: 104634
EAN: 8033837066545

Tecnoseal 02520AL – Aluminium Long Bar Anode

The Tecnoseal 02520AL is the aluminium version of the Hamilton Jet long bar anode for HJ291 and HJ364 waterjet propulsion systems. It has the same dimensions and mounting configuration as the zinc version, with a weight of 0.10 kg.

Material: Aluminium
Weight: 0.10 kg (0.22 lbs)
OEM Reference: 104634
EAN: 8058774838987

OEM and Product Cross-References

Hamilton Jet OEM: 104634
Tecnoseal Zinc: 02520
Tecnoseal Aluminium: 02520AL

Key Features

Long bar sacrificial anode for Hamilton Jet HJ291 and HJ364 waterjet propulsion systems.
98 x 19 x 20 mm overall dimensions.
Two mounting holes with 80 mm centre-to-centre spacing.
9 mm mounting hole diameter.
Available in zinc and aluminium versions.
Corresponds to Hamilton Jet OEM part number 104634.
Helps protect compatible metallic waterjet propulsion components against galvanic corrosion.

Compatibility: Designed for Hamilton Jet HJ291 and HJ364 waterjet propulsion systems, corresponding to OEM reference 104634. Verify the existing anode dimensions, 80 mm mounting hole spacing and 9 mm mounting hole diameter before ordering. Select the appropriate sacrificial material according to the manufacturer's recommendations and operating water conditions.
