The Tecnoseal 02521 is a zinc sacrificial short bar anode designed for Hamilton Jet HJ274, HJ322 and HJ362 waterjet propulsion systems, corresponding to OEM part number 103359. It features an elongated body with rounded ends and two mounting holes, measuring 80 mm (3.15 in) in length, 24 mm (0.94 in) in dimension a and 25 mm (0.98 in) in dimension h. The mounting holes have a diameter of 10.5 mm (0.41 in) and are spaced 57 mm (2.24 in) centre-to-centre. Weighing 0.27 kg (0.60 lbs), this zinc anode provides sacrificial corrosion protection for compatible Hamilton Jet components.
- Description
- Ask a Question
-

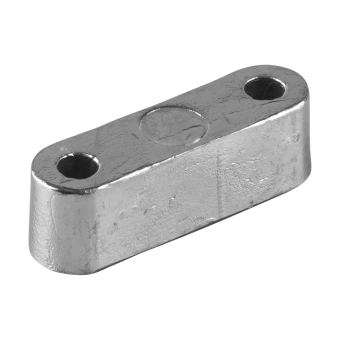

Tecnoseal 103359 Hamilton Jet HJ274/HJ322/HJ362 Short Bar Zinc Anode 80 mm
The Tecnoseal 02521 is a zinc sacrificial short bar anode designed for Hamilton Jet HJ274, HJ322 and HJ362 waterjet propulsion systems. Corresponding to Hamilton Jet OEM part number 103359, this replacement anode helps protect compatible metallic jet drive components against galvanic corrosion.

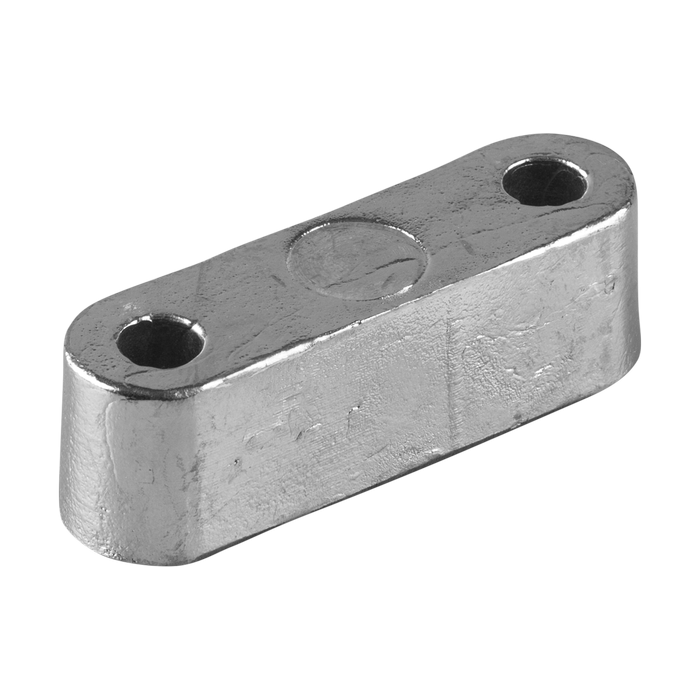

The anode features an elongated bar-shaped body with rounded ends and two mounting holes. According to the Tecnoseal catalogue, it measures 80 mm (3.15 in) in overall length, with dimension a of 24 mm (0.94 in) and dimension h of 25 mm (0.98 in). The mounting holes have a diameter of 10.5 mm (0.41 in) and a centre-to-centre spacing of 57 mm (2.24 in).
Manufactured from zinc, the Tecnoseal 02521 weighs 0.27 kg (0.60 lbs). Its two-hole mounting configuration is intended for compatible Hamilton Jet waterjet propulsion components.
Technical Specifications
Manufacturer Tecnoseal Product Code 02521 Product Type Short Bar Sacrificial Anode Compatible Brand Hamilton Jet Compatible Models HJ274, HJ322, HJ362 OEM Reference 103359 Material Zinc Weight 0.27 kg (0.60 lbs) Length (l) 80 mm (3.15 in) Dimension (a) 24 mm (0.94 in) Dimension (h) 25 mm (0.98 in) Mounting Hole Spacing (i) 57 mm (2.24 in) Mounting Hole Diameter (Ø) 10.5 mm (0.41 in) EAN 8033837066552
Dimensions and Mounting
- Overall Length (l): 80 mm (3.15 in)
- Dimension (a): 24 mm (0.94 in)
- Dimension (h): 25 mm (0.98 in)
- Mounting Hole Spacing (i): 57 mm (2.24 in)
- Mounting Hole Diameter (Ø): 10.5 mm (0.41 in)
- Construction: Elongated bar with rounded ends and two mounting holes
OEM and Product Cross-References
- Hamilton Jet OEM: 103359
- Tecnoseal Zinc: 02521
Key Features
- Zinc sacrificial short bar anode for Hamilton Jet waterjet propulsion systems.
- Compatible with Hamilton Jet HJ274, HJ322 and HJ362.
- 80 mm overall length with dimensions a = 24 mm and h = 25 mm.
- Two mounting holes with 57 mm centre-to-centre spacing.
- 10.5 mm mounting hole diameter.
- Corresponds to Hamilton Jet OEM part number 103359.
- Helps protect compatible metallic waterjet propulsion components against galvanic corrosion.
Compatibility: Designed for Hamilton Jet HJ274, HJ322 and HJ362 waterjet propulsion systems, corresponding to OEM reference 103359. Verify the existing anode dimensions, 57 mm mounting hole spacing and 10.5 mm mounting hole diameter before ordering.
-
