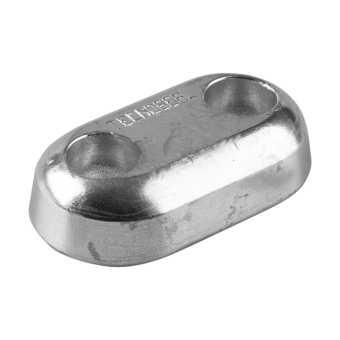

Tecnoseal 111059 / 203130 Hamilton Jet Plate Anode 118x59x26 mm

Name: Tecnoseal 111059 / 203130 Hamilton Jet Plate Anode 118x59x26 mm
SKU: Tecnoseal 02524

ID 1405814

$ 49.22

1-2 weeks delivery time

Type:

Zinc
Aluminium

Item:

380 g
1 kg

The Tecnoseal 02524 series consists of sacrificial plate anodes designed for Hamilton Jet HJ274, HJ292, HJ322, HJ362 and HM422 waterjet propulsion systems, corresponding to OEM part numbers 111059 and 203130. The anode features an elongated oval body with two recessed mounting holes and measures 118 mm (4.65 in) in length, 59 mm (2.32 in) in width and 26 mm (1.02 in) in height. The mounting holes are spaced 60 mm (2.36 in) centre-to-centre, with a 9.5 mm (0.37 in) through-hole diameter and a 20 mm (0.79 in) recess diameter. Available in zinc (02524, 1.00 kg / 2.20 lbs) and aluminium (02524AL, 0.38 kg / 0.84 lbs), both versions share identical dimensions and provide sacrificial corrosion protection for compatible Hamilton Jet components.

Description
Ask a Question

Tecnoseal 111059 / 203130 Hamilton Jet Plate Anode 118x59x26 mm – Zinc or Aluminium

The Tecnoseal 02524 series consists of sacrificial plate anodes designed for Hamilton Jet waterjet propulsion systems. Corresponding to Hamilton Jet OEM part numbers 111059 and 203130, these replacement anodes help protect compatible metallic propulsion components against galvanic corrosion.

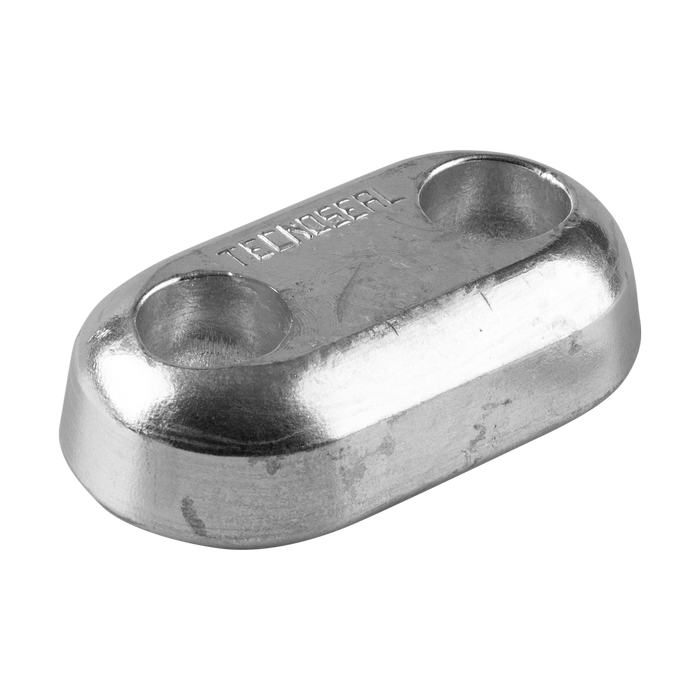

The anode features an elongated oval-shaped body with rounded ends and two recessed mounting holes. According to the Tecnoseal catalogue, it measures 118 mm (4.65 in) in overall length, 59 mm (2.32 in) in width and 26 mm (1.02 in) in height. The mounting holes are spaced 60 mm (2.36 in) centre-to-centre, with a 9.5 mm (0.37 in) through-hole diameter and a 20 mm (0.79 in) recess diameter.

Two material versions are available: zinc (Tecnoseal 02524) and aluminium (Tecnoseal 02524AL). Both versions share identical dimensions and mounting specifications, with different weights depending on the selected sacrificial material. The anodes are listed for Hamilton Jet HJ274, HJ292, HJ322, HJ362 and HM422 propulsion systems.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Plate Sacrificial Anode
Compatible Brand	Hamilton Jet
Compatible Models	HJ274, HJ292, HJ322, HJ362, HM422
OEM References	111059, 203130
Available Materials	Zinc, Aluminium
Length (a)	118 mm (4.65 in)
Width (b)	59 mm (2.32 in)
Height (h)	26 mm (1.02 in)
Mounting Hole Spacing (i)	60 mm (2.36 in)
Through-Hole Diameter (Ø)	9.5 mm (0.37 in)
Mounting Recess Diameter (Ø1)	20 mm (0.79 in)
Design	Oval plate with two recessed mounting holes

Available Versions and Product References

Tecnoseal Code	Material	Weight	EAN
02524	Zinc	1.00 kg (2.20 lbs)	8033837066583
02524AL	Aluminium	0.38 kg (0.84 lbs)	8052744983172

Dimensions and Mounting

Overall Length (a): 118 mm (4.65 in)
Width (b): 59 mm (2.32 in)
Height (h): 26 mm (1.02 in)
Mounting Hole Spacing (i): 60 mm (2.36 in)
Through-Hole Diameter (Ø): 9.5 mm (0.37 in)
Mounting Recess Diameter (Ø1): 20 mm (0.79 in)
Construction: Elongated oval plate with rounded ends and two recessed mounting holes

Tecnoseal 02524 – Zinc Plate Anode

The Tecnoseal 02524 is the zinc version of the Hamilton Jet plate anode. It measures 118 x 59 x 26 mm and features two recessed mounting holes spaced 60 mm apart. It is designed for compatible HJ274, HJ292, HJ322, HJ362 and HM422 waterjet propulsion systems.

Material: Zinc
Weight: 1.00 kg (2.20 lbs)
EAN: 8033837066583

Tecnoseal 02524AL – Aluminium Plate Anode

The Tecnoseal 02524AL is the aluminium version of the Hamilton Jet plate anode. It shares the same dimensions and recessed two-hole mounting configuration as the zinc version, with a weight of 0.38 kg.

Material: Aluminium
Weight: 0.38 kg (0.84 lbs)
EAN: 8052744983172

Compatible Hamilton Jet Models

Hamilton Jet HJ274
Hamilton Jet HJ292
Hamilton Jet HJ322
Hamilton Jet HJ362
Hamilton Jet HM422

OEM and Product Cross-References

Hamilton Jet OEM: 111059
Hamilton Jet OEM: 203130
Tecnoseal Zinc: 02524
Tecnoseal Aluminium: 02524AL

Key Features

Sacrificial plate anode for Hamilton Jet waterjet propulsion systems.
Compatible with HJ274, HJ292, HJ322, HJ362 and HM422 models.
118 x 59 x 26 mm overall dimensions.
Two recessed mounting holes spaced 60 mm centre-to-centre.
9.5 mm through-hole diameter and 20 mm mounting recess diameter.
Available in zinc and aluminium versions.
Corresponds to Hamilton Jet OEM references 111059 and 203130.
Helps protect compatible metallic propulsion components against galvanic corrosion.

Compatibility: Designed for Hamilton Jet HJ274, HJ292, HJ322, HJ362 and HM422 waterjet propulsion systems. Verify the existing anode dimensions, 60 mm mounting hole spacing, 9.5 mm through-hole diameter and 20 mm recess diameter before ordering. Select the appropriate sacrificial material according to the manufacturer's recommendations and operating water conditions.
