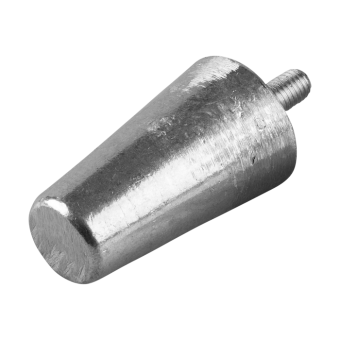

Tecnoseal 111644 Hamilton Jet HJ363/HJ391 Large Conical Rod Anode Ø40 mm M8

Name: Tecnoseal 111644 Hamilton Jet HJ363/HJ391 Large Conical Rod Anode Ø40 mm M8
SKU: Tecnoseal 02525-1

ID 1405820

$ 55.57

1-2 weeks delivery time

Type:

Zinc
Aluminium

Item:

150 g
390 g

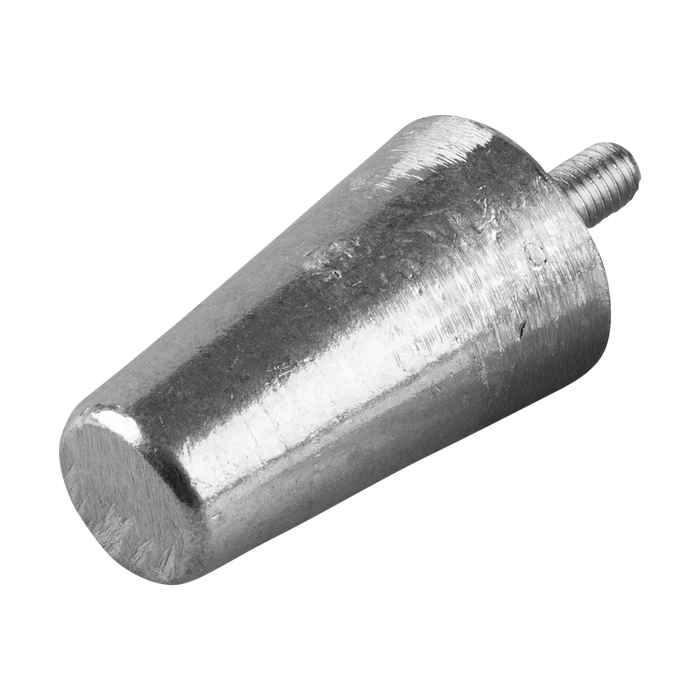

The Tecnoseal 02525-1 series consists of large conical rod sacrificial anodes designed for Hamilton Jet HJ363 and HJ391 waterjet propulsion systems, corresponding to OEM part number 111644. Each anode features a tapered cylindrical body with an M8 threaded mounting stud, measuring 70 mm (2.76 in) in body length, 40 mm (1.57 in) in diameter and 22 mm (0.87 in) in dimension h, with an additional 20 mm (0.79 in) mounting stud length. Available in zinc (02525-1, 0.39 kg / 0.86 lbs) and aluminium (02525-1AL, 0.15 kg / 0.33 lbs), both versions share the same dimensions and mounting configuration and provide sacrificial corrosion protection for compatible Hamilton Jet propulsion components.

Description
Ask a Question

Tecnoseal 111644 Hamilton Jet HJ363/HJ391 Large Conical Rod Anode Ø40 mm M8 – Zinc or Aluminium

The Tecnoseal 02525-1 series consists of large conical rod sacrificial anodes designed for Hamilton Jet HJ363 and HJ391 waterjet propulsion systems. Corresponding to Hamilton Jet OEM part number 111644, these replacement anodes help protect compatible metallic propulsion components against galvanic corrosion.

The anode features a tapered cylindrical body with an M8 threaded mounting stud. According to the Tecnoseal catalogue, it measures 70 mm (2.76 in) in body length, 40 mm (1.57 in) in diameter and 22 mm (0.87 in) in dimension h. The projecting mounting stud length (l1) is 20 mm (0.79 in).

Two material versions are available: zinc (Tecnoseal 02525-1) and aluminium (Tecnoseal 02525-1AL). Both versions have identical dimensions and mounting specifications, with different weights depending on the sacrificial material selected.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Large Conical Rod Sacrificial Anode
Compatible Brand	Hamilton Jet
Compatible Models	HJ363, HJ391
OEM Reference	111644
Available Materials	Zinc, Aluminium
Body Length (l)	70 mm (2.76 in)
Dimension (h)	22 mm (0.87 in)
Mounting Stud Length (l1)	20 mm (0.79 in)
Diameter (Ø)	40 mm (1.57 in)
Thread (m)	M8
Construction	Tapered cylindrical body with threaded mounting stud

Available Versions and Product References

Tecnoseal Code	Material	Weight	EAN
02525-1	Zinc	0.39 kg (0.86 lbs)	8052744983189
02525-1AL	Aluminium	0.15 kg (0.33 lbs)	8052744983196

Dimensions and Mounting

Body Length (l): 70 mm (2.76 in)
Dimension (h): 22 mm (0.87 in)
Mounting Stud Length (l1): 20 mm (0.79 in)
Diameter (Ø): 40 mm (1.57 in)
Thread (m): M8
Design: Large conical rod with threaded mounting stud

Tecnoseal 02525-1 – Zinc Large Conical Rod Anode

The Tecnoseal 02525-1 is the zinc version of the Hamilton Jet large conical rod anode. Designed for HJ363 and HJ391 waterjet propulsion systems, it features a 70 mm long tapered body, 40 mm diameter and M8 threaded mounting stud.

Material: Zinc
Weight: 0.39 kg (0.86 lbs)
Hamilton Jet OEM: 111644
EAN: 8052744983189

Tecnoseal 02525-1AL – Aluminium Large Conical Rod Anode

The Tecnoseal 02525-1AL is the aluminium version of the Hamilton Jet large conical rod anode. It shares the same tapered profile, dimensions and M8 threaded mounting configuration as the zinc version, with a weight of 0.15 kg.

Material: Aluminium
Weight: 0.15 kg (0.33 lbs)
Hamilton Jet OEM: 111644
EAN: 8052744983196

Compatible Hamilton Jet Models

Hamilton Jet HJ363
Hamilton Jet HJ391

OEM and Product Cross-References

Hamilton Jet OEM: 111644
Tecnoseal Zinc: 02525-1
Tecnoseal Aluminium: 02525-1AL

Key Features

Large conical rod sacrificial anode for Hamilton Jet waterjet propulsion systems.
Designed for Hamilton Jet HJ363 and HJ391 models.
70 mm body length and 40 mm diameter.
M8 threaded mounting stud with 20 mm projecting length.
Available in zinc and aluminium versions.
Corresponds to Hamilton Jet OEM part number 111644.
Helps protect compatible metallic waterjet propulsion components against galvanic corrosion.

Compatibility: Designed for Hamilton Jet HJ363 and HJ391 waterjet propulsion systems, corresponding to OEM reference 111644. Verify the existing anode dimensions, tapered body configuration and M8 mounting thread before ordering. Select the appropriate sacrificial material according to the manufacturer's recommendations and operating water conditions.
