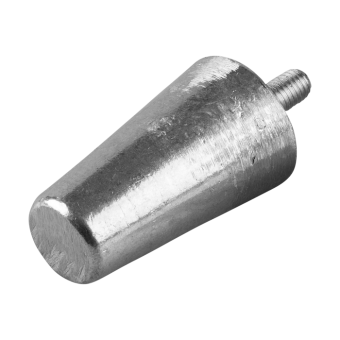

Tecnoseal 111654-111593 / 111647-203133 Hamilton Jet Conical Rod Anode Ø33 mm M8

Name: Tecnoseal 111654-111593 / 111647-203133 Hamilton Jet Conical Rod Anode Ø33 mm M8
SKU: Tecnoseal 02525

ID 1405817

$ 50.54

1-2 weeks delivery time

Type:

Zinc
Aluminium

Item:

100 g
260 g

The Tecnoseal 02525 series consists of conical rod sacrificial anodes designed for Hamilton Jet HJ274, HJ322 and HJ362 waterjet propulsion systems, corresponding to OEM references 111654, 111593, 111647 and 203133. The anode features a tapered cylindrical body measuring 58 mm (2.28 in) in length, 33 mm (1.30 in) in diameter and 22 mm (0.87 in) in height, with a 20 mm (0.79 in) mounting stud length and an M8 threaded connection. Available in zinc (02525, 0.26 kg / 0.57 lbs) and aluminium (02525AL, 0.10 kg / 0.22 lbs), both versions share identical dimensions and provide sacrificial corrosion protection for compatible Hamilton Jet components.

Description
Ask a Question

Tecnoseal 111654-111593 / 111647-203133 Hamilton Jet Conical Rod Anode Ø33 mm M8 – Zinc or Aluminium

The Tecnoseal 02525 series consists of conical rod sacrificial anodes designed for Hamilton Jet HJ274, HJ322 and HJ362 waterjet propulsion systems. These replacement anodes correspond to Hamilton Jet OEM references 111654, 111593, 111647 and 203133, helping protect compatible metallic propulsion components against galvanic corrosion.

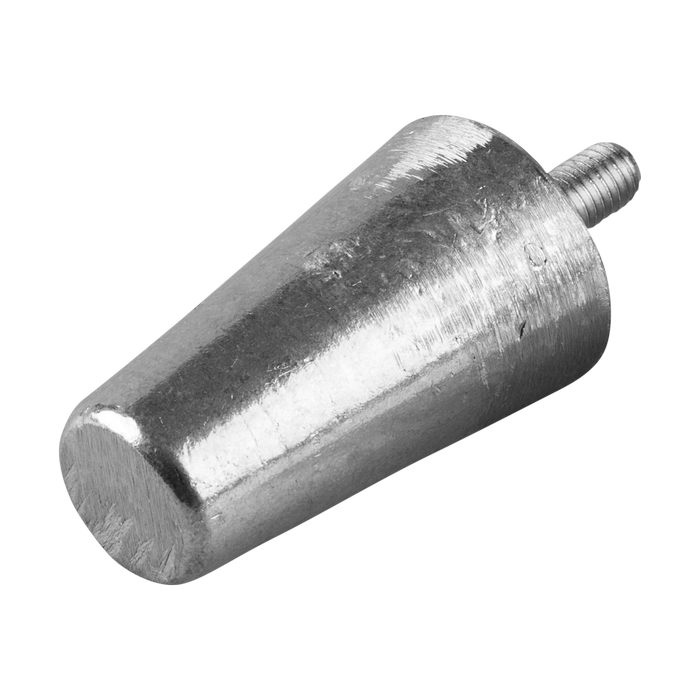

The anode features a tapered cylindrical body with an M8 threaded mounting stud. According to the Tecnoseal catalogue, the body measures 58 mm (2.28 in) in length, with a diameter of 33 mm (1.30 in) and dimension h of 22 mm (0.87 in). The mounting stud length (l1) is 20 mm (0.79 in).

Two material versions are available: zinc (Tecnoseal 02525) and aluminium (Tecnoseal 02525AL). Both versions share the same dimensions and threaded mounting configuration, with weights of 0.26 kg and 0.10 kg respectively.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Conical Rod Sacrificial Anode
Compatible Brand	Hamilton Jet
Compatible Models	HJ274, HJ322, HJ362
OEM References	111654, 111593, 111647, 203133
Available Materials	Zinc, Aluminium
Body Length (l)	58 mm (2.28 in)
Dimension (h)	22 mm (0.87 in)
Mounting Stud Length (l1)	20 mm (0.79 in)
Diameter (Ø)	33 mm (1.30 in)
Thread (m)	M8
Design	Tapered cylindrical body with threaded mounting stud

Available Versions and Product References

Tecnoseal Code	Material	Weight	EAN
02525	Zinc	0.26 kg (0.57 lbs)	8033837066590
02525AL	Aluminium	0.10 kg (0.22 lbs)	8052744983202

Dimensions and Mounting

Length (l): 58 mm (2.28 in)
Dimension (h): 22 mm (0.87 in)
Mounting Stud Length (l1): 20 mm (0.79 in)
Diameter (Ø): 33 mm (1.30 in)
Thread (m): M8
Construction: Conical rod with threaded mounting stud

Tecnoseal 02525 – Zinc Conical Rod Anode

The Tecnoseal 02525 is the zinc version of the Hamilton Jet conical rod anode. It features a tapered body with a 33 mm diameter, 58 mm length and M8 threaded mounting stud.

Material: Zinc
Weight: 0.26 kg (0.57 lbs)
EAN: 8033837066590

Tecnoseal 02525AL – Aluminium Conical Rod Anode

The Tecnoseal 02525AL is the aluminium version of the Hamilton Jet conical rod anode. It shares the same tapered profile, dimensions and M8 mounting configuration as the zinc version, with a weight of 0.10 kg.

Material: Aluminium
Weight: 0.10 kg (0.22 lbs)
EAN: 8052744983202

Compatible Hamilton Jet Models

Hamilton Jet HJ274
Hamilton Jet HJ322
Hamilton Jet HJ362

OEM and Product Cross-References

Hamilton Jet OEM: 111654
Hamilton Jet OEM: 111593
Hamilton Jet OEM: 111647
Hamilton Jet OEM: 203133
Tecnoseal Zinc: 02525
Tecnoseal Aluminium: 02525AL

Key Features

Conical rod sacrificial anode for Hamilton Jet waterjet propulsion systems.
Designed for HJ274, HJ322 and HJ362 models.
58 mm body length and 33 mm diameter.
20 mm mounting stud length with M8 thread.
Available in zinc and aluminium versions.
Corresponds to Hamilton Jet OEM references 111654, 111593, 111647 and 203133.
Helps protect compatible metallic waterjet propulsion components against galvanic corrosion.

Compatibility: Designed for Hamilton Jet HJ274, HJ322 and HJ362 waterjet propulsion systems. Verify the existing anode dimensions, tapered body configuration and M8 mounting thread before ordering. Select the appropriate sacrificial material according to the manufacturer's recommendations and operating water conditions.
