The Tecnoseal 02526 is a large round zinc sacrificial plate anode designed for Hamilton Jet HJ362, HJ363, HJ391, HJ402 and HM422 waterjet propulsion systems, corresponding to OEM part numbers 103862 and 203121. The anode features a circular body with two recessed mounting holes, measuring 175 mm in outer diameter and 57 mm in overall height, with a 42 mm recessed-section height. The mounting holes have a 70 mm centre-to-centre spacing, a 15 mm through-hole diameter and a 32 mm counterbore diameter. Weighing 9.14 kg (20.15 lbs), this zinc anode provides sacrificial corrosion protection for compatible Hamilton Jet propulsion components.
- Description
- Ask a Question
-

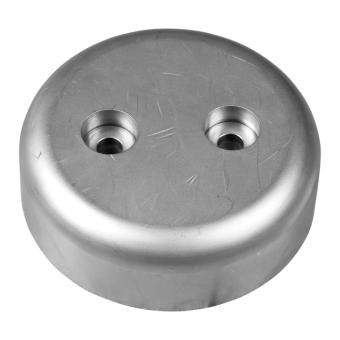

Tecnoseal 103862 / 203121 Hamilton Jet Big Round Zinc Plate Anode Ø175 mm
The Tecnoseal 02526 is a large round zinc sacrificial plate anode designed for Hamilton Jet waterjet propulsion systems. Corresponding to Hamilton Jet OEM part numbers 103862 and 203121, this replacement anode helps protect compatible metallic propulsion components against galvanic corrosion.

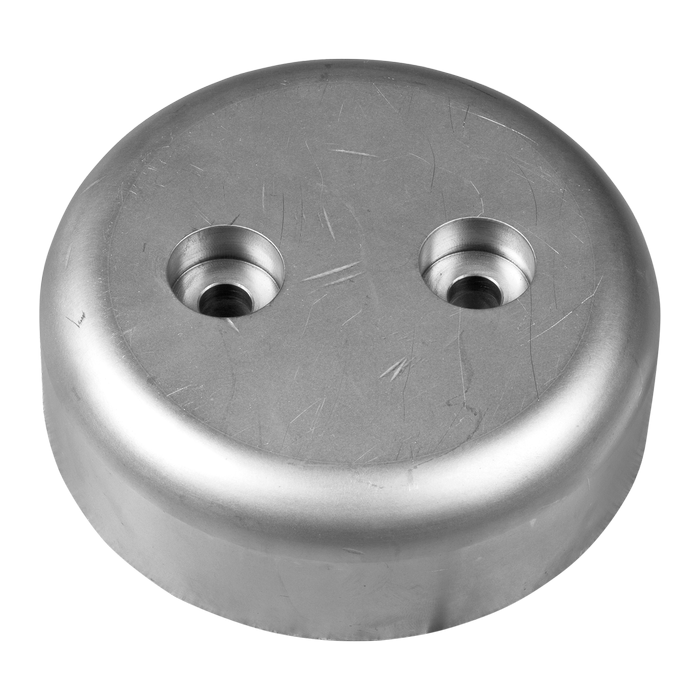

The anode features a circular body with two recessed mounting holes. According to the Tecnoseal catalogue, it measures 175 mm in outer diameter and 57 mm in overall height, with an additional height dimension (h1) of 42 mm. The mounting holes are spaced 70 mm centre-to-centre, with a 15 mm through-hole diameter and a 32 mm counterbore diameter.
Manufactured from zinc, the Tecnoseal 02526 weighs 9.14 kg (20.15 lbs). It is listed for Hamilton Jet HJ362, HJ363, HJ391, HJ402 and HM422 waterjet propulsion systems.
Technical Specifications
Manufacturer Tecnoseal Product Code 02526 Product Type Large Round Plate Sacrificial Anode Compatible Brand Hamilton Jet Compatible Models HJ362, HJ363, HJ391, HJ402, HM422 OEM References 103862, 203121 Material Zinc Weight 9.14 kg (20.15 lbs) Diameter (l) 175 mm (6.89 in) Overall Height (h) 57 mm (2.24 in) Height (h1) 42 mm (1.65 in) Mounting Hole Spacing (i) 70 mm (2.76 in) Through-Hole Diameter (Ø) 15 mm (0.59 in) Counterbore Diameter (Ø1) 32 mm (1.26 in) EAN 8033837066606
Dimensions and Mounting
- Overall Diameter (l): 175 mm (6.89 in)
- Overall Height (h): 57 mm (2.24 in)
- Height (h1): 42 mm (1.65 in)
- Mounting Hole Spacing (i): 70 mm (2.76 in)
- Through-Hole Diameter (Ø): 15 mm (0.59 in)
- Counterbore Diameter (Ø1): 32 mm (1.26 in)
- Construction: Round plate with two recessed mounting holes
Compatible Hamilton Jet Models
- Hamilton Jet HJ362
- Hamilton Jet HJ363
- Hamilton Jet HJ391
- Hamilton Jet HJ402
- Hamilton Jet HM422
OEM and Product Cross-References
- Hamilton Jet OEM: 103862
- Hamilton Jet OEM: 203121
- Tecnoseal Zinc: 02526
Key Features
- Large round zinc sacrificial anode for Hamilton Jet waterjet propulsion systems.
- Compatible with HJ362, HJ363, HJ391, HJ402 and HM422 models.
- 175 mm overall diameter and 57 mm height.
- Two recessed mounting holes spaced 70 mm centre-to-centre.
- 15 mm mounting through-holes with 32 mm counterbores.
- Corresponds to Hamilton Jet OEM references 103862 and 203121.
- Provides sacrificial corrosion protection for compatible metallic propulsion components.
Compatibility: Designed for Hamilton Jet HJ362, HJ363, HJ391, HJ402 and HM422 waterjet propulsion systems. Verify the existing anode dimensions, 70 mm mounting hole spacing and mounting hole diameters before ordering.
-
