Tecnoseal Castoldi Large Engine Washer Anode Ø80 mm

Tecnoseal Castoldi Large Engine Washer Anode Ø80 mm – Zinc, Aluminium or Magnesium

The Tecnoseal 02404 series consists of large sacrificial washer anodes designed for Castoldi marine engines. These anodes help protect compatible metallic engine components against galvanic corrosion.

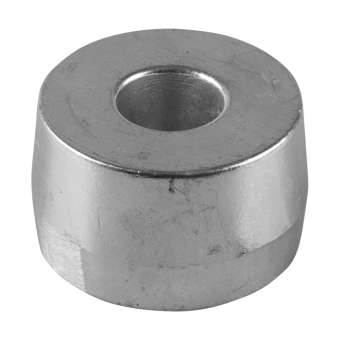

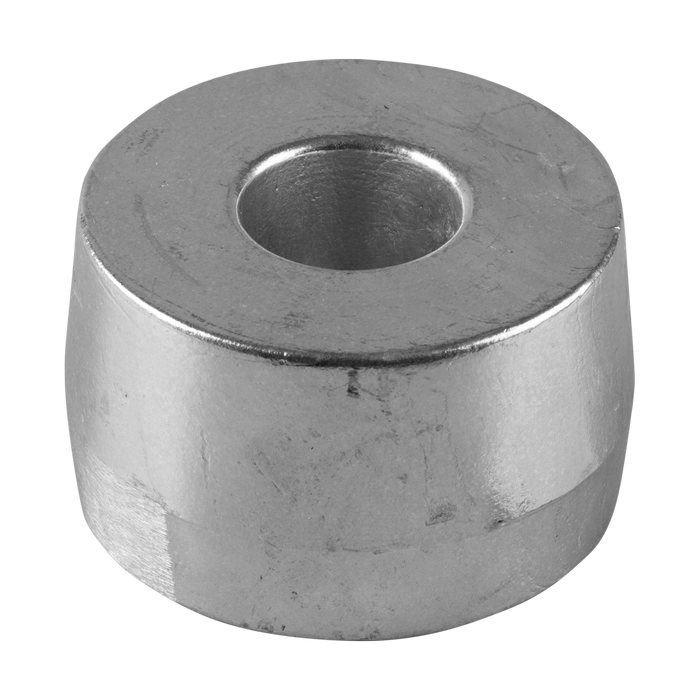

The anode features a cylindrical body with a recessed central mounting hole. It measures 80 mm (3.15 in) in outer diameter and 50 mm (1.97 in) in height. The central mounting recess has a diameter of 30 mm (1.18 in), while the through-hole measures 12 mm (0.47 in).

Three material versions are available: zinc (Tecnoseal 02404), aluminium (Tecnoseal 02404AL) and magnesium (Tecnoseal 02404MG). All three versions share identical dimensions and mounting specifications, with different weights depending on the selected sacrificial material.

Technical Specifications

Available Versions and Product References

Dimensions and Mounting

• Outer Diameter (Ø): 80 mm (3.15 in)
• Height (h): 50 mm (1.97 in)
• Mounting Recess Diameter (Ø1): 30 mm (1.18 in)
• Through-Hole Diameter (Ø2): 12 mm (0.47 in)
• Construction: Cylindrical body with central recessed mounting hole

Tecnoseal 02404 – Zinc Washer Anode

The Tecnoseal 02404 is the zinc version of the Castoldi large engine washer anode. It features an 80 mm outer diameter, 50 mm height, 30 mm mounting recess and 12 mm central through-hole.

• Material: Zinc
• Weight: 1.51 kg (3.33 lbs)
• EAN: 8033837066491

Tecnoseal 02404AL – Aluminium Washer Anode

The Tecnoseal 02404AL is the aluminium version of the Castoldi large engine washer anode. It shares the same dimensions and mounting configuration as the zinc version and weighs 0.59 kg.

• Material: Aluminium
• Weight: 0.59 kg (1.30 lbs)
• EAN: 8059617813802

Tecnoseal 02404MG – Magnesium Washer Anode

The Tecnoseal 02404MG is the magnesium version of the Castoldi large engine washer anode. It has the same 80 mm outer diameter, 50 mm height and recessed mounting configuration as the other versions, with a weight of 0.38 kg.

• Material: Magnesium
• Weight: 0.38 kg (0.84 lbs)
• EAN: 8059617813819

Product References

• Tecnoseal Zinc: 02404
• Tecnoseal Aluminium: 02404AL
• Tecnoseal Magnesium: 02404MG

Key Features

• Large sacrificial washer anode for Castoldi marine engines.
• Cylindrical body with recessed central mounting hole.
• 80 mm outer diameter and 50 mm overall height.
• 30 mm mounting recess and 12 mm through-hole.
• Available in zinc, aluminium and magnesium versions.
• Identical dimensions and mounting configuration across all three versions.
• Helps protect compatible metallic engine components against galvanic corrosion.

Compatibility: Intended for compatible Castoldi marine engine applications. Verify the existing anode dimensions, 30 mm mounting recess and 12 mm through-hole before ordering. Select the appropriate sacrificial material according to the manufacturer's recommendations and operating water conditions.
