The Tecnoseal 02452BIS is a zinc sacrificial medium collar anode with mounting straps, designed for Kamewa Jet FF375S waterjet propulsion systems and corresponding to OEM part number 37517411. The anode features a circular ring-shaped body with an outer diameter of 230 mm (9.06 in), an inner diameter of 126 mm (4.96 in) and a height of 19 mm (0.75 in). The mounting straps have a dimension c of 28 mm (1.10 in) and feature 11 x 17 mm (0.43 x 0.67 in) mounting slots. Weighing 3.00 kg (6.61 lbs), this zinc anode provides sacrificial corrosion protection for compatible Kamewa Jet FF375S propulsion components.
- Description
- Ask a Question
-
Tecnoseal 37517411 Kamewa Jet FF375S Zinc Medium Collar Anode with Straps Ø230 mm
The Tecnoseal 02452BIS is a zinc sacrificial medium collar anode with mounting straps, designed for Kamewa Jet FF375S waterjet propulsion systems. Corresponding to Kamewa OEM part number 37517411, this replacement anode helps protect compatible metallic propulsion components against galvanic corrosion.

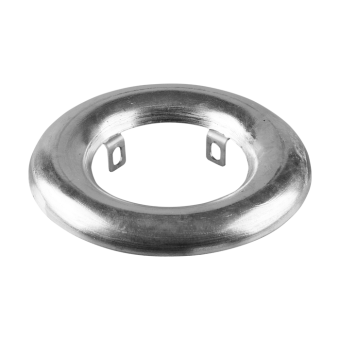

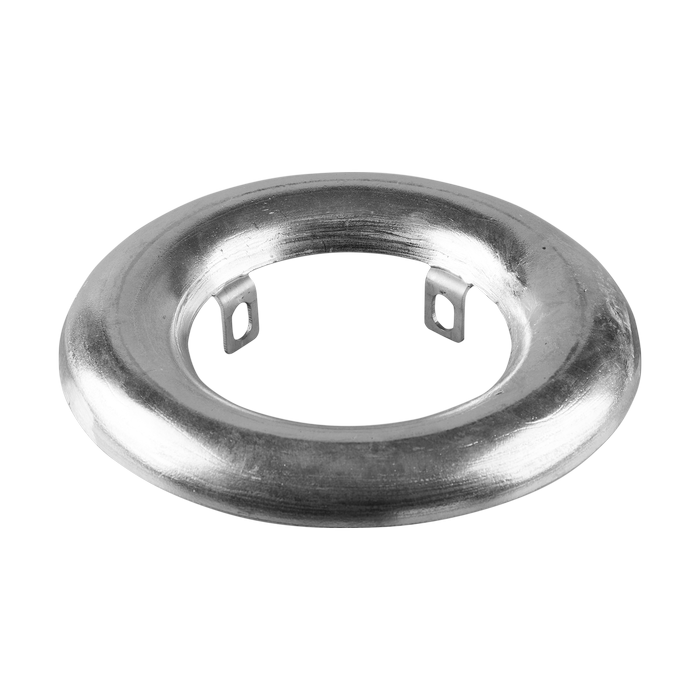

The anode features a circular ring-shaped body with mounting straps extending from the collar. According to the Tecnoseal catalogue, it measures 230 mm (9.06 in) in outer diameter, 126 mm (4.96 in) in inner diameter and 19 mm (0.75 in) in height. The additional mounting dimension (c) is 28 mm (1.10 in), while the mounting slots measure 11 x 17 mm (0.43 x 0.67 in).
Manufactured from zinc, the Tecnoseal 02452BIS weighs 3.00 kg (6.61 lbs). Its circular collar construction and integrated mounting straps are intended for compatible Kamewa Jet FF375S propulsion systems.
Technical Specifications
Manufacturer Tecnoseal Product Code 02452BIS Product Type Medium Collar Sacrificial Anode with Straps Compatible Brand Kamewa / Rolls-Royce Compatible Model Kamewa Jet FF375S OEM Reference 37517411 Material Zinc Weight 3.00 kg (6.61 lbs) Outer Diameter (Ø) 230 mm (9.06 in) Inner Diameter (Ø1) 126 mm (4.96 in) Height (h) 19 mm (0.75 in) Mounting Dimension (c) 28 mm (1.10 in) Mounting Slot Size (Ø2) 11 x 17 mm (0.43 x 0.67 in) EAN 8033837067771
Dimensions and Mounting
- Outer Diameter (Ø): 230 mm (9.06 in)
- Inner Diameter (Ø1): 126 mm (4.96 in)
- Height (h): 19 mm (0.75 in)
- Mounting Dimension (c): 28 mm (1.10 in)
- Mounting Slot Size (Ø2): 11 x 17 mm (0.43 x 0.67 in)
- Construction: Circular collar with integrated mounting straps
Compatible Kamewa Jet Models
- Kamewa Jet FF375S
OEM and Product Cross-References
- Kamewa OEM: 37517411
- Tecnoseal Zinc: 02452BIS
Key Features
- Zinc sacrificial medium collar anode for Kamewa Jet FF375S waterjet propulsion systems.
- 230 mm outer diameter and 126 mm inner diameter.
- 19 mm collar height.
- Integrated mounting straps with 11 x 17 mm mounting slots.
- 28 mm additional mounting dimension.
- Corresponds to Kamewa OEM part number 37517411.
- Provides sacrificial corrosion protection for compatible metallic propulsion components.
Compatibility: Designed for the Kamewa Jet FF375S waterjet propulsion system, corresponding to OEM reference 37517411. Verify the existing collar dimensions, 126 mm inner diameter and mounting strap configuration before ordering.
-
