Tecnoseal BMW Sterndrive Mark 1 Zinc Propeller Anode

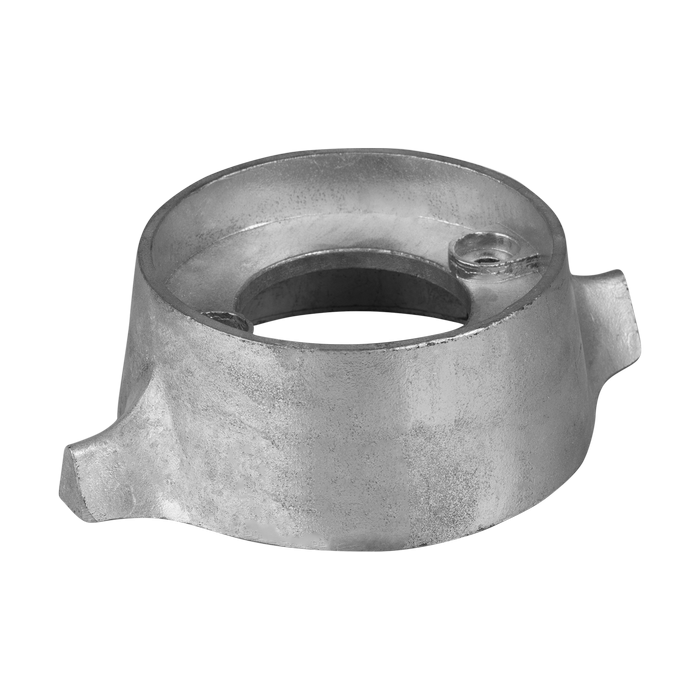

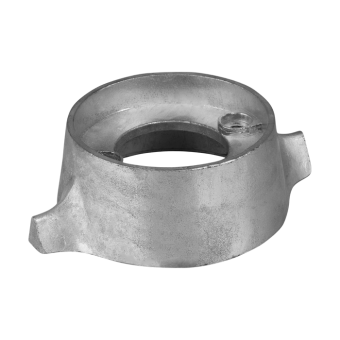

Tecnoseal 01000 BMW Sterndrive Mark 1 Zinc Propeller Anode

The Tecnoseal 01000 is a zinc sacrificial propeller anode designed for BMW Sterndrive Mark 1 marine propulsion installations. It serves as a replaceable corrosion protection component, helping protect electrically connected underwater metallic parts of the compatible sterndrive assembly against galvanic corrosion.

Manufactured from zinc, this anode is intended for applications where sacrificial corrosion protection is required in suitable marine operating conditions. When correctly installed with appropriate electrical contact, the zinc material corrodes preferentially, helping reduce corrosion of the metallic components requiring protection.

The Tecnoseal 01000 weighs 0.84 kg (1.84 lbs) and features several manufacturer-specified dimensional references. These include measurements of a = 165 mm, b = 101 mm, h = 54 mm and i = 80 mm, together with three diameter dimensions: Ø124 mm, Ø1 61 mm and Ø2 9 mm.

Technical Specifications

BMW Sterndrive Mark 1 Compatibility

The Tecnoseal 01000 is specified for BMW Sterndrive Mark 1 installations. Its application is associated with the propeller and underwater propulsion assembly, where sacrificial anode protection helps reduce galvanic corrosion of electrically connected metallic components.

Before selecting this replacement anode, confirm the sterndrive model and compare the original component with the manufacturer's dimensional specifications. Compatibility should be determined by the drive model and the anode's mounting geometry rather than by dimensions alone.

Dimensions and Mounting Considerations

The Tecnoseal 01000 is identified by several dimensional references used to describe its geometry and mounting arrangement. The supplied technical specifications indicate dimensions a = 165 mm, b = 101 mm, h = 54 mm and i = 80 mm.

Additional diameter measurements include Ø124 mm, Ø1 61 mm and Ø2 9 mm. These values should be matched to the corresponding positions on the manufacturer's technical drawing when verifying the replacement component.

Before installation, inspect the existing anode mounting location, fastening points and contact surfaces. Follow the sterndrive manufacturer's instructions for fitting and securing the replacement anode.

Zinc Sacrificial Corrosion Protection

Zinc is commonly used as a sacrificial anode material for saltwater marine applications. When the anode is correctly installed and electrically connected to the metallic component requiring protection, the zinc corrodes preferentially, helping reduce galvanic corrosion of the protected equipment.

The Tecnoseal 01000 provides a replaceable zinc component for corrosion protection maintenance of compatible BMW Sterndrive Mark 1 propulsion systems.

The suitability of zinc should be confirmed according to the vessel's operating water conditions and the existing corrosion protection arrangement.

Inspection and Replacement

Inspect the propeller anode as part of routine sterndrive maintenance. Replace it when the zinc material has become significantly depleted, physically damaged or no longer securely attached.

During replacement, inspect the mounting surfaces and fastening arrangement, verify compatibility with the original anode and ensure suitable electrical continuity between the anode and the metallic component requiring protection.

Scope of Supply

1 × Tecnoseal 01000 BMW Sterndrive Mark 1 Zinc Propeller Anode.
