The Marco UP3/E autoclave gear pump is a 12/24V DC electronically controlled unit with a maximum flow rate of 15 L/min and a pressure rating (cut-off pressure) of 2.5 bar. It includes a non-return valve and a progressive-turn motor for adjustable flow, uses PEEK helical gears, and draws 6/3 A. Connections are listed as 3/8 inch (9.5 mm) and 3/8 inch BSPP, with an outlet size of 3/8 x 13 mm; it is self-priming up to 1.5 m and requires a 15 A fuse (not included).
- Description
- Ask a Question
-

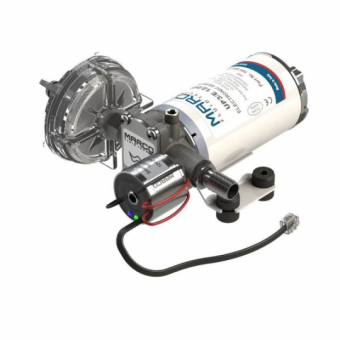

Marco UP3/E Autoclave Electronic Gear Pump
The Marco UP3/E is an electronically controlled gear pump designed for efficient, controlled water pressure system use across various applications. It is built around PEEK helical gears and includes a non-return valve to support stable operation and controlled flow delivery.
Technical Specifications

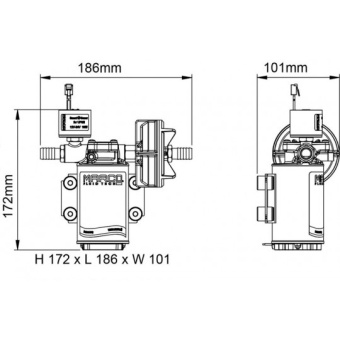

Manufacturer Part Number 16460215 FNI Part Number 1600005 EAN 8022278607295 Type Electronic gear pump with PEEK helical gears Voltage 12–24 V DC Current 6 / 3 A Max Flow Rate (Free Discharge) 15 L/min Cut-Off Pressure 2.5 bar Self-Priming Up to 1.5 m Connection 3/8 inch BSPP Connections (Listed) 3/8 inch (9.5 mm) Outlet Size 3/8 x 13 mm Fuse Requirement 15 A (not included) Dimensions (H x W x L) 189 x 101 x 186 mm Shipping Weight 2.50 kg Product Portfolio Water Pressure Systems
Features
- Electronic control for optimized flow
- Non-return valve
- Progressive-turn motor for adjustable flow rate
- Self-priming up to 1.5 m
Product Details
- Nickel-plated brass housing and connections
- Stainless steel spindle
- FKM seals
- NBR O-ring
- Also listed as available with an electronic control panel
- Also described with a non-return valve and electronic pressure sensor
-
