The MARCO UP6/A gear pump (part no. 16462012) is a 12V unit rated for 26 L/min at free discharge and a 2 bar pressure setting. It is self-priming up to 1.5 m, draws 8 A, and uses 1/2 inch connections (listed as 1/2 inch (12.7 mm) and 1/2 inch BSPP). Construction includes a nickel-plated brass housing, stainless steel spindle, FKM seals, and an NBR O-ring; overall size is 206 x 118 x 272 mm.
- Description
- Ask a Question
-

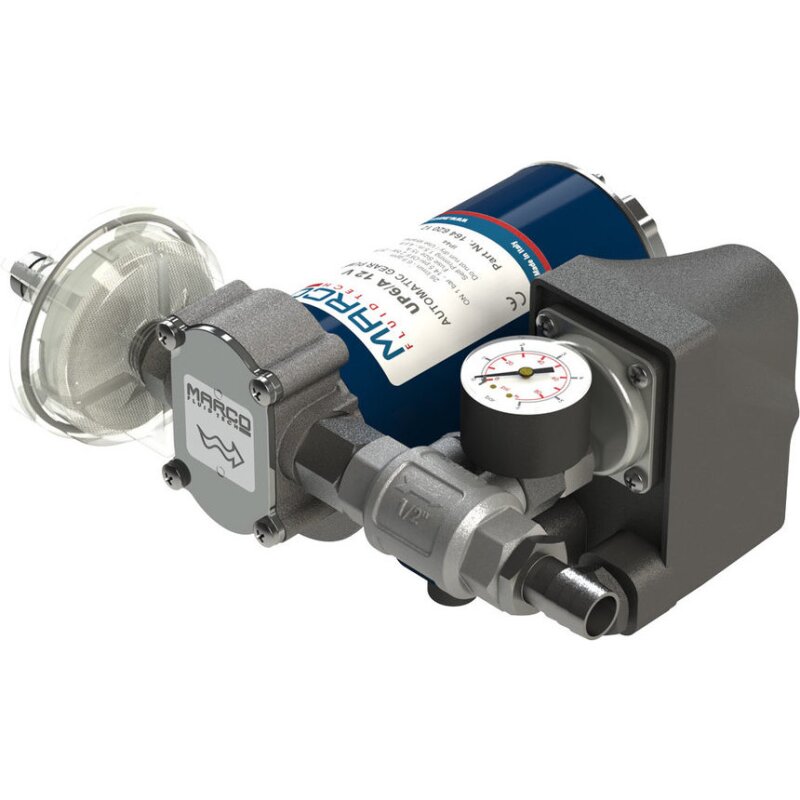

MARCO UP6/A 12V Gear Pump Assembly
The MARCO UP6/A gear pump (part number 16462012) is a self-priming electric pump for water pressure system applications. It is designed for in-line installation and is specified with durable metallic construction and chemical-resistant sealing materials for fluid handling where material compatibility must be verified.
Technical Specifications
Brand MARCO Model UP6/A Voltage 12V Output 26 L/min Flow Condition Free discharge (without back pressure) Pressure 2 bar Self-Priming Up to 1.5 m Current Consumption 8 A Connection (Listed) 1/2 inch (12.7 mm) Connection 1/2 inch BSPP Housing Material Nickel-plated brass Spindle Material Stainless steel Seal Material FKM O-Ring Material NBR Dimensions (H x W x L) 206 x 118 x 272 mm Product Portfolio Water Pressure Systems
Features
- Self-priming electric gear pump design
- Specified output of 26 L/min at free discharge
- 1/2 inch connections (including 1/2 inch BSPP as listed)
- Nickel-plated brass housing with stainless steel spindle
- FKM seals with NBR O-ring
- Listed equipment: in-line filter, pressure switch, and non-return valve
- Also available with an integrated expansion tank
Product Details
If you are unsure about material compatibility with the pumped liquid, verify compatibility of all pump materials in contact with the fluid before operation.
-
