ID
1353894
$ 195.58
1-2 weeks delivery time
-
+
The MARCO UP2 gear pump is a 12V electric transfer unit rated for 10 L/min (free discharge) with a cut-off pressure of 1.5 bar. It is self-priming up to 1.5 m, dry-run safe, and reversible, with 3/8 inch BSPP connections (9.5 mm) and a current consumption of 6 A. Construction includes a nickel-plated brass housing, bronze gears, a stainless steel spindle, FKM seals, and an NBR O-ring; size is 126 x 76 x 116 mm with a shipping weight of 1.60 kg.
- Description
- Ask a Question
-

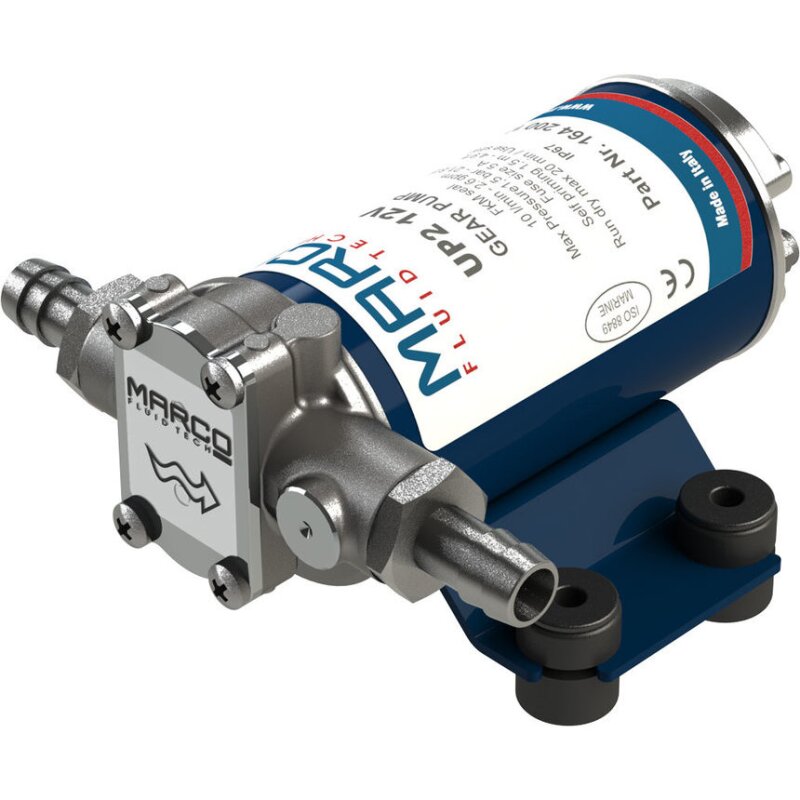

UP2 12V Gear Transfer Pump
The MARCO 16420012 is a self-priming, reversible electric gear pump intended for liquid transfer applications such as diesel. It is built with metal gears and specified sealing materials, and includes threaded connections for straightforward installation.
Technical Specifications
Flow Rate 10 L/min (free discharge / without back pressure) Cut-Off Pressure 1.5 bar Voltage 12V Current Consumption 6 A Self-Priming Up to 1.5 m Connection 3/8 inch BSPP Connection Size (Alternative) 3/8 inch (9.5 mm) Materials Nickel-plated brass housing; bronze gears; stainless steel spindle; FKM seals; NBR O-ring Dimensions (H x W x L) 126 x 76 x 116 mm Shipping Weight 1.60 kg Product Portfolio Diesel transfer pumps
Features
- Dry-run safe
- Self-priming up to 1.5 m
- Reversible operation
- Designed for transferring diesel
Product Details
If there is any uncertainty about material compatibility between the pump materials in contact with the liquid and the pumped medium, confirm compatibility before putting the pump into operation.
-
