The Marco UP1-J self-priming impeller pump is a 24V marine pump for emptying bilges and gray water, rated at 28 L/min with 4 A current draw. It features a rubber impeller, nickel-plated brass body, stainless steel shaft, internal brush holder with EMI anti-noise filter, waterproof cap, and a watertight cable gland. Connections are specified as 3/8X25 mm and 3/8 inch (9.5 mm) / 3/8 inch BSPP, with pressure listed as 1 bar and also as cut-off pressure 1.25 bar; dimensions are 161 x 82 x 95 mm.
- Description
- Ask a Question
-

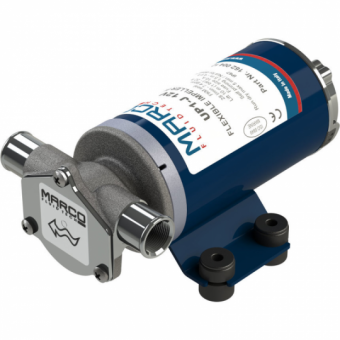

UP1-J 24V Self-Priming Marine Impeller Pump
The Marco UP1-J is a self-priming impeller pump designed for marine service, intended for tasks such as emptying bilges and gray water on boats. It is built with corrosion-resistant materials and includes electrical noise suppression components for dependable operation in demanding onboard conditions.
Technical Specifications

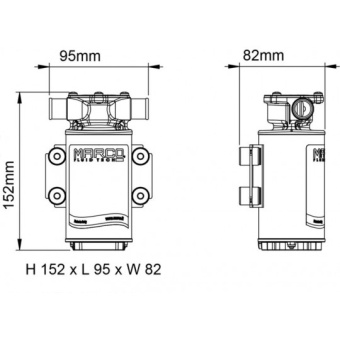

Brand Marco Part Number 16200413 FNI Product Number 1600003 EAN 8022278608612 Voltage 24V Pump Type Self-priming pump Flow Rate 28 L/min Current 4 A Pressure 1 bar Cut-Off Pressure 1.25 bar Self-Priming Up to 1.5 m Outlet Size 3/8X25 mm Connection 3/8 inch (9.5 mm) Connection Thread 3/8 inch BSPP Dimensions (H x W x L) 161 x 82 x 95 mm Shipping Weight 2.30 kg Certifications Listed ISO 8849; ISO 8846; ISO 8850
Features
- Internal brush holder with EMI anti-noise filter
- Rubber impeller (also described as a flexible nitrile rubber paddle wheel)
- Nickel-plated brass body/housing
- Stainless steel shaft
- Waterproof cap and watertight cable gland
- Reversible
Product Details
- Intended applications: emptying bilges and gray waters on all boat types
- Included components listed: brush holder with EMI filter, watertight cover, and cable entry
- Availability note listed: versions available with either an integrated on/off switch or a 3-position switch
-
