The Marco UP1-J self-priming marine impeller pump is a 12V DC electric unit for bilge and gray water transfer on boats. It delivers 28 L/min flow and draws 8 A, with pressure values listed as max 1 bar and cut-off pressure 1.25 bar. The pump features a nickel-plated brass body, stainless steel shaft, rubber (HNBR) impeller, waterproof cap, and watertight cable entry, with a 3/8 inch connection (also listed as 3/8 inch BSPP and outlet size 3/8 x 25 mm) and self-priming up to 1.5 m.
- Description
- Ask a Question
-

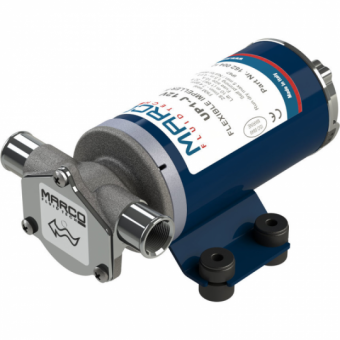

UP1-J 12V Marine Self-Priming Impeller Pump
The Marco UP1-J is a self-priming electric impeller pump intended for marine duties such as emptying bilges and transferring gray or waste water. Its construction and sealed electrical entry are designed for reliable operation in harsh onboard conditions.
Technical Specifications

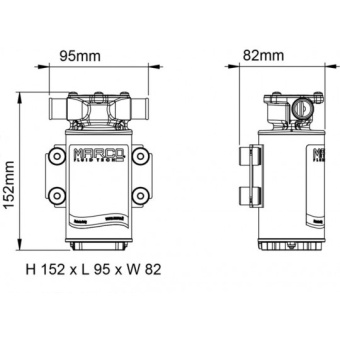

Brand Marco Manufacturer Part Number 16200412 Voltage 12V Current Draw 8 A Flow Rate 28 L/min (free discharge / without back pressure) Max Pressure 1 bar Cut-Off Pressure 1.25 bar Self-Priming Up to 1.5 m Connection 3/8 inch (9.5 mm) Connection (Additional Listing) 3/8 inch BSPP Outlet Size 3/8 x 25 mm Dimensions (H x W x L) 161 x 82 x 95 mm Shipping Weight 2.30 kg Standards ISO 8846; ISO 8849 EAN 8022278608605
Features
- Self-priming electric impeller pump
- Nickel-plated brass body / housing
- Stainless steel shaft
- Flexible rubber impeller (listed as HNBR / nitrile rubber)
- Internal brush holder with EMI anti-noise filter
- Waterproof cap / cover
- Watertight cable gland / cable entry (also described as a waterproof cable guide)
- Reversible
Product Details
- Applications: ideal for emptying bilges and gray waters on all types of boats
- Sealing materials listed: FKM seals and NBR O-ring
- Included components listed: brush holder with EMI filter, watertight cover, and cable entry
- Availability note: listed as available with either an integrated on/off switch or a 3-position switch
- Additional references: FNI product number 1600002; article number 17353200; manufacturer number 162 004 12
-
