ID
1316959
$ 192.10
1-2 weeks delivery time
-
+
The Wing Pump Sigma K-00 is a green self-priming double action wing pump with brass components and cast iron housing, designed for drum pumping, bilge pumping, and toilet flushing, offering 7 litres per minute capacity with 7 metre suction height and 3/8" pipe connections.
- Description
- Ask a Question
-

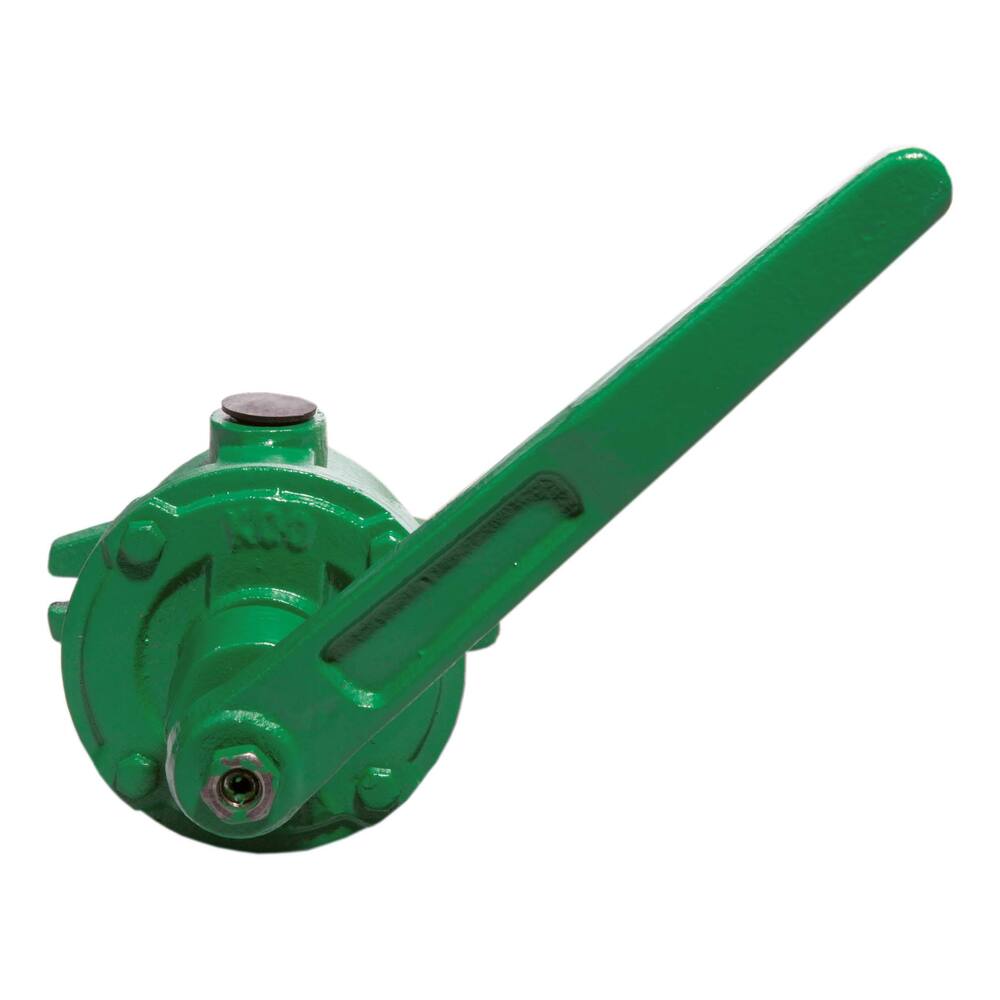

Wing Pump Sigma K-00 - 3/8"
This green Sigma wing pump is designed for various fluid transfer tasks such as pumping out drums, bilge pumping in lifeboats and engine rooms, and flushing toilets. It is a self-priming double action wing pump with horizontal rotation and a stuffing box shaft seal.
- Type: Sigma
- Colour: green
- Pump type: self-priming double action wing pump if filled
- Impeller type: wing
- Rotation: horizontal movement
- Shaft seal: stuffing box
- Material wing: brass
- Material valves: brass
- Material pump housing: cast iron
- Material pump shaft: steel
- Suitable liquids: water, sea water, gas oil, petrol, petroleum and oils with max viscosity of 10, plus other clean and low viscosity media
- Capacity measured with water at 20°C and suction/discharge height of 100 cm
- Supplied without flange
- Capacity: 7 litres per minute (80 strokes per minute)
- Suction height: 7 metres
- Installed length: 105 mm without flanges
- Weight: 3.2 kg
- Product code: 96.15.108
- Suction head: 7.0 m
- Pipe diameter pressure: 3/8"
- Pipe diameter suction: 3/8"
- Pump type: Hand pump, Vane pump
- Medium: Water, Gasoil, Lubricating oil
- Particle size: 2 mm
- Discharge head Max.: 25.0 m
- ATEX: No
- Free flow: 420 L/Hour
-
