ID
1316956
$ 710.74
1-2 weeks delivery time
-
+
The Beyer Hand Membrane Pump is a self-priming pump designed to handle both clean and contaminated liquids including oil, suitable for shipping, industrial, and domestic applications. This green-colored pump features oil-resistant rubber membranes and valves with steel cores, housed in cast iron construction, capable of handling 45 litres per minute at 50 strokes per minute with a maximum discharge head of 12.0 meters.
- Description
- Ask a Question
-

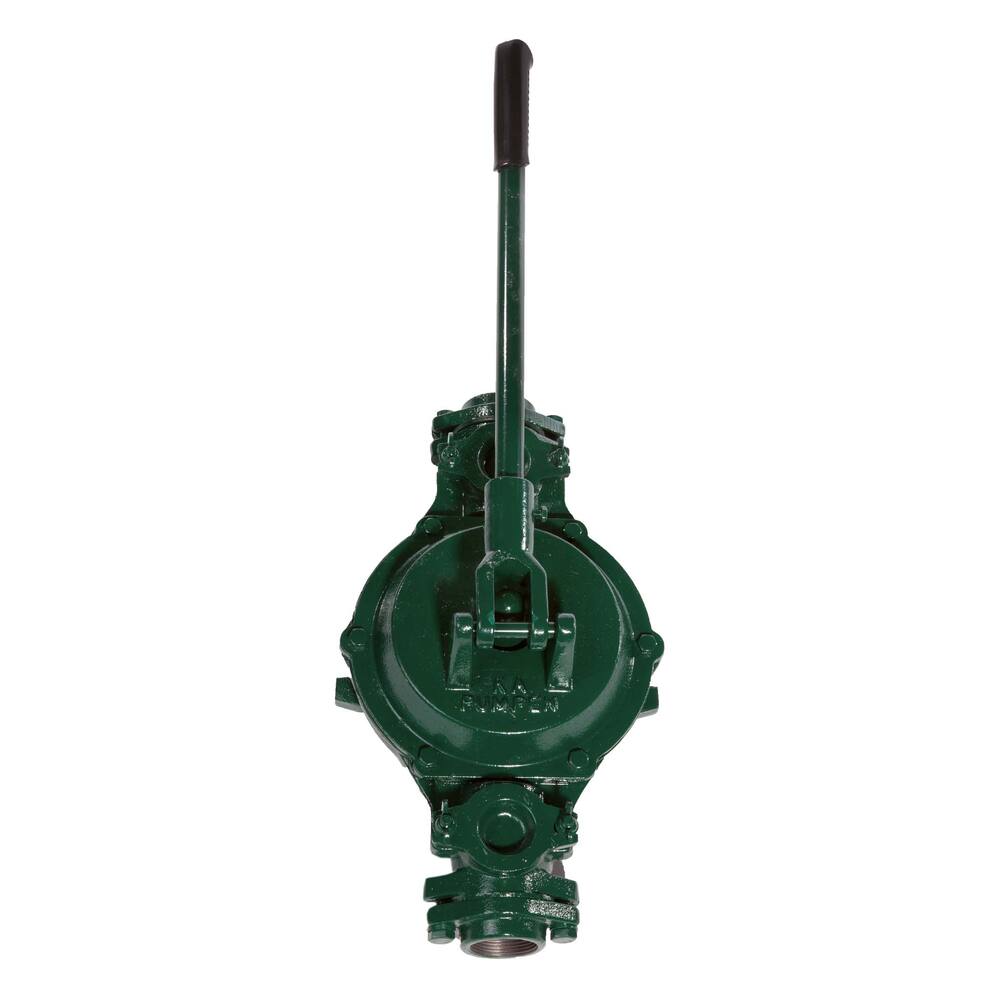

Beyer Hand Membrane Pump 1.1/2"
Designed for transporting both clean and contaminated liquids containing oil, this pump suits shipping, industrial, and domestic needs.
- Colour: green
- Pump type: self-priming hand membrane pump
- Impeller type: membrane
- Rotation: horizontal movement
- Material membrane: oil resistant rubber
- Material valves: rubber with steel core
- Material pump housing: cast iron
- Liquids handled: clean and dirty water, sea water
- Capacity: 45 litres per minute at 50 strokes per minute
- Installed length: 375 mm between the flanges
- Weight: 12.5 kg
- Reducing rings available for smaller connections (Article: 86.24.119 to 86.24.123)
- Product code: 96.16.200
- Suction head: 6.0 m
- Pipe diameter pressure: 1.1/2"
- Pipe diameter suction: 1.1/2"
- Mediums: Water, Gasoil, Lubricating oil
- Particle size capability: 25 mm
- Maximum discharge head: 12.0 m
- Free flow: 2700 L/Hour
-
