The Wing Pump Sigma K-3 is a green self-priming wing pump with 1.1/4" connections, offering 29 litres per minute capacity at 50 strokes per minute, weighing 11.5 kg with 7 metre suction height and maximum 22 metre discharge head.
- Description
- Ask a Question
-

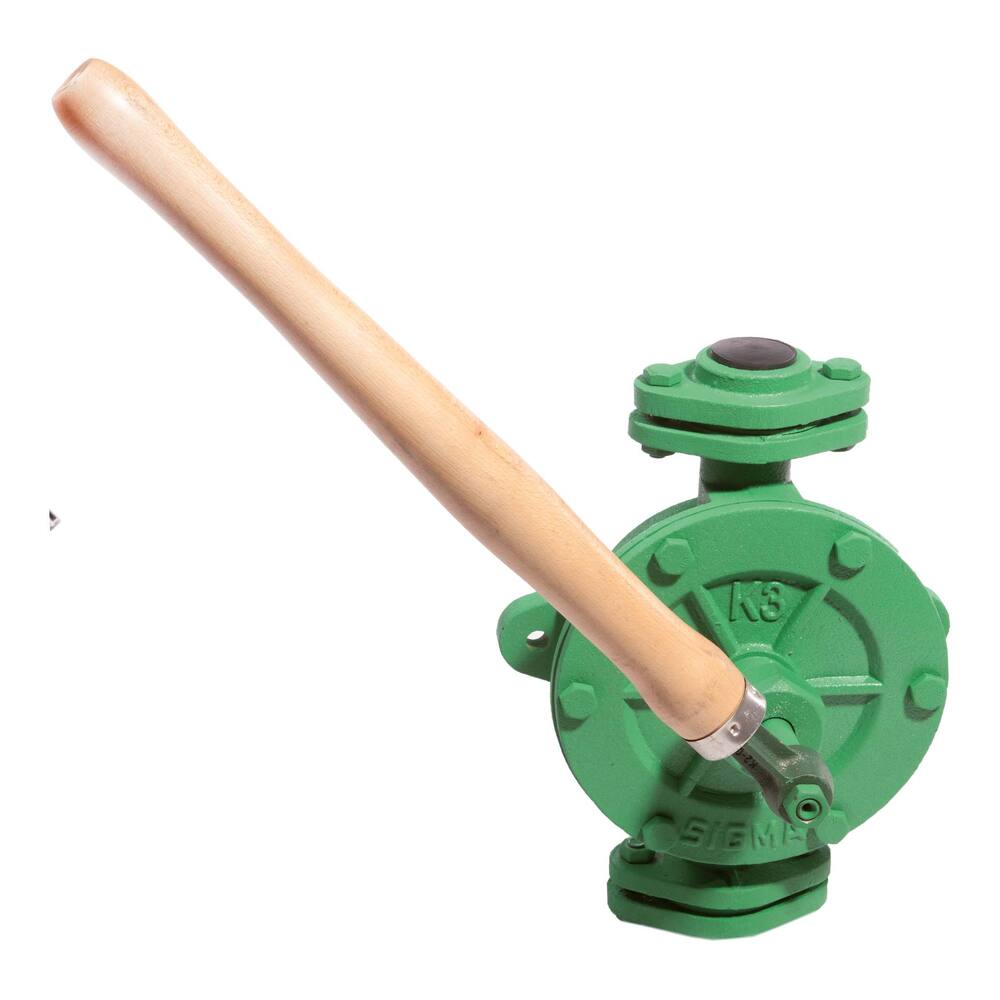

Wing Pump Sigma K-3 - 1.1/4"
This green Sigma wing pump is ideal for drum pumping, bilge pumping in lifeboats and engine rooms, and toilet flushing applications. It operates as a self-priming double action wing pump with horizontal rotation.
- Type: Sigma
- Colour: green
- Pump type: self-priming double action wing pump if filled
- Impeller type: wing
- Rotation: horizontal movement
- Shaft seal: stuffing box
- Material wing: brass
- Material valves: brass
- Material pump housing: cast iron
- Material pump shaft: steel
- Liquids: water, sea water, gas oil, petrol, petroleum and oils with max viscosity 10, and other clean low viscosity media
- Comes with: wooden handle and flanges
- Capacity: 29 litres per minute (50 strokes per minute)
- Suction height: 7 metres
- Installed length: 275 mm without flanges
- Weight: 11.5 kg
- Product code: 96.15.113
- Pipe diameter pressure: 1.1/4"
- Pipe diameter suction: 1.1/4"
- Pump type: Hand pump, Vane pump
- Mediums: Water, Gasoil, Lubricating oil
- Particle size max: 2 mm
- Discharge head max: 22.0 m
- Free flow: 1740 L/Hour
- Comment: Capacity measured with water at 20°C, suction and discharge heights of 100 cm
- ATEX: No
-
