ID
1317180
$ 2,078.09
1-2 weeks delivery time
-
+
The Victor Pumps S40G31T 1,1KW is a durable deck wash and bilge pump designed for commercial shipping, capable of pumping both clean and contaminated liquids including seawater and gas oil. It features a self-priming centrifugal pump with an open impeller that can handle particles up to 20 mm, delivering a flow rate of 13,500 litres/hour at 10 meters head and weighing 28 kg.
- Description
- Ask a Question
-

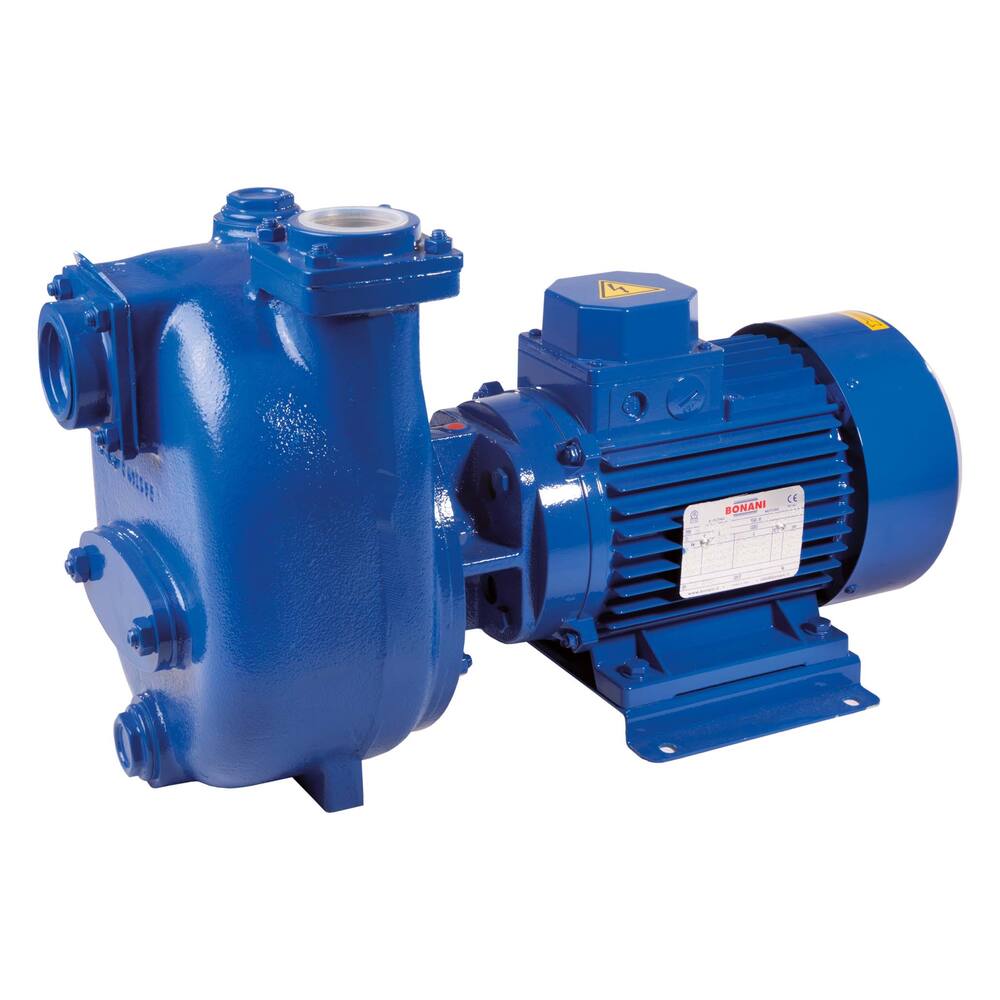

Victor Pumps S40G31T 1,1KW
This robust deck wash and bilge pump is designed for commercial shipping applications, providing reliable pumping of both clean and contaminated liquids, including sea water and gas oil. It features a self-priming centrifugal mechanism with an open impeller, suitable for handling liquids containing coarse particles up to 20 mm.
- Type: S
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Motor type: short circuit motor
- Fuse: NOT inbuilt
- Insulation class: IP55
- Shaft seal: SiC on ceramic mechanical seal with Viton, in oil bath
- Material impeller: cast steel
- Material wearing plate: cast steel
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids handled: clean and contaminated liquids with coarser particles such as water, sea water, gas oil
- Performance at 10 meters: 13,500 litres/hour
- Performance at 15 meters: 2,000 litres/hour
- Connections: 1 1/2” inside thread
- Dimensions (LxWxH): 498 x 210 x 296 mm
- Weight: 28 kg
- Current: 2.3 A
- Shaft power: 1.1 kW, 1.46 hp, 2,900 rpm
- Product code: 92.09.040
- Suction head: 8.0 m
- Pipe diameter pressure: 1.1/2"
- Pipe diameter suction: 1.1/2"
- Pump type: Dry set-up pump, self-priming
- Medium: Water and water with coarse components
- Maximum particle size: 20 mm
- Maximum discharge head: 16.0 m
- Voltage: 400 V
- Current type: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX certified: No
- Separate float switch: Not included
- Free flow: 22,500 L/hour
- Capacity at 5 meters: 20,500 L/hour
-
