ID
1317112
$ 3,464.64
1-2 weeks delivery time
-
+
The Speck Pressurized Water System PM10 + 50L without motor is a professional solution for marine applications. This plunger pump system is widely used in inland and seagoing shipping. It includes a 50-litre stainless steel membrane vessel with 7 litres useful capacity and supports multiple voltage options from 12V to 400V.
- Description
- Ask a Question
-

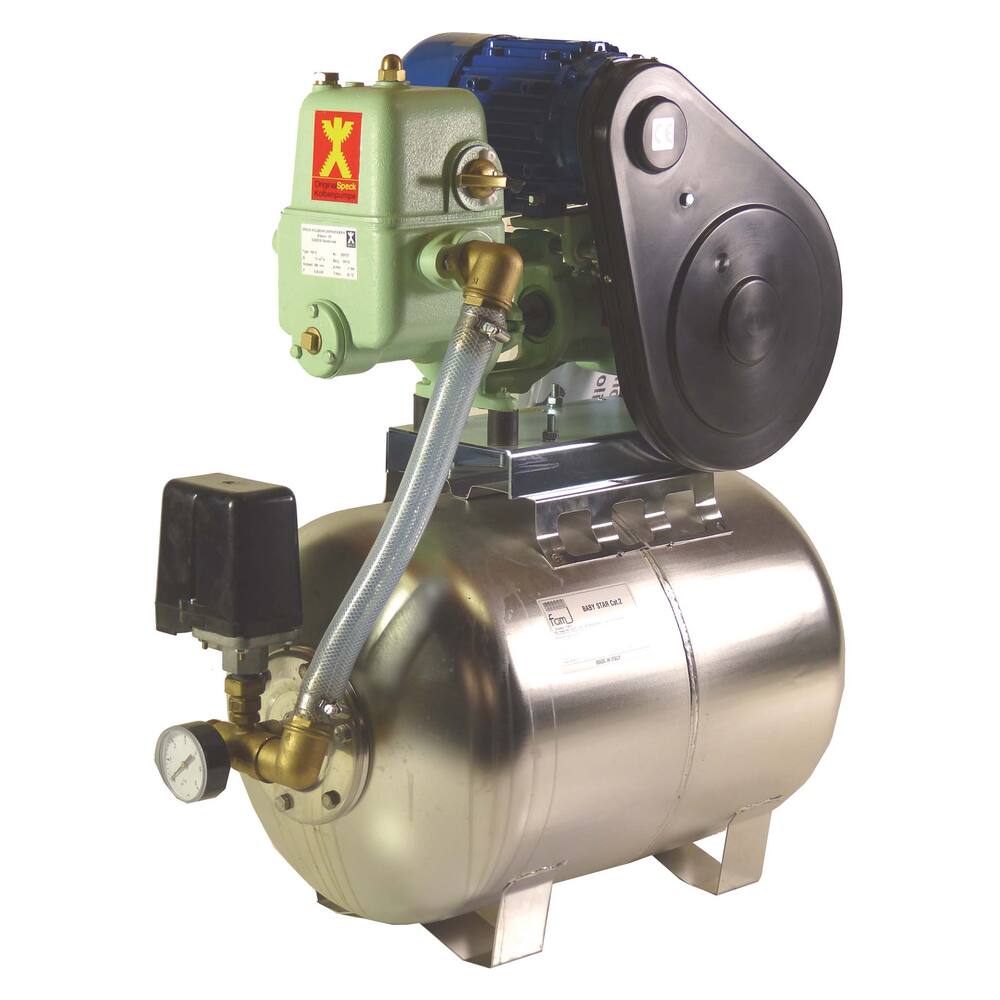

Speck Pressurized Water System PM10 + 50L Stainless Steel Membrane Vessel Without Motor
Professional water pressurization system widely used in inland and seagoing shipping as well as recreational craft. It includes a pressure vessel, non-return valve, manometer, and pressure switch, with an option to add an electric pump.
- Type: PM (Pumpmeister)
- Colour: light green
- Pump type: self-priming plunger pump with plunger (piston) impeller
- Motor type: brushless motor (not included)
- Shaft seal: stop bush
- Material plunger: Simrit
- Material cylinder bush: stainless steel
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids handled: clean water
- Voltage options: 12 V DC, 24 V DC (2 year IDEAAL guarantee), 230 V mains, 400 V three phase
- Capacity: 1,000 litres per hour at 3.5 bar
- Suction height: 8.0 metres
- Pressure vessel: horizontal 50 l stainless steel membrane vessel with approx. 7 litres useful water capacity
- Switch on pressure: 2.0 bar
- Switch off pressure: 3.5 bar
- Suitable for geyser and 2 or 3 draw off points (not used simultaneously)
- Connections: 1" internal thread
- Dimensions (LxWxH): 675 x 350 x 775 mm (depending on motor type)
- Weight: 57 kg (depending on motor type)
- Amperage: 12 V - 35.0 A, 24 V - 17.4 A (Ideaal 15.0 A), 230 V - 3.1 A, 400 V - 0.8 A
- Shaft power: 0.25 kW (0.33 hp) at 1,450 rpm
- Product code: 97.62.002
- Number of tapping points: geyser and 2-3 tapping points
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: pressurized water
- Medium: water
- Particle size: 2 mm
- Discharge head max: 35.0 m
- Protection class: IP68
- ATEX certification: None
- Free flow: 1000 L/hour
- Capacity at 5 meter: 1000 L/hour
- Note: Must be installed by an accredited installer.
-
