ID
1317110
$ 3,479.55
1-2 weeks delivery time
-
+
The Speck PY2071 system with 20L steel membrane vessel provides commercial-grade pressurized water delivery for shipping and marine applications. Operating at 360 L/h with 24V DC power, it features brass construction with open peripheral impeller design, automatic switching between 1.0-3.0 bar pressure and 8-meter suction head capability.
- Description
- Ask a Question
-

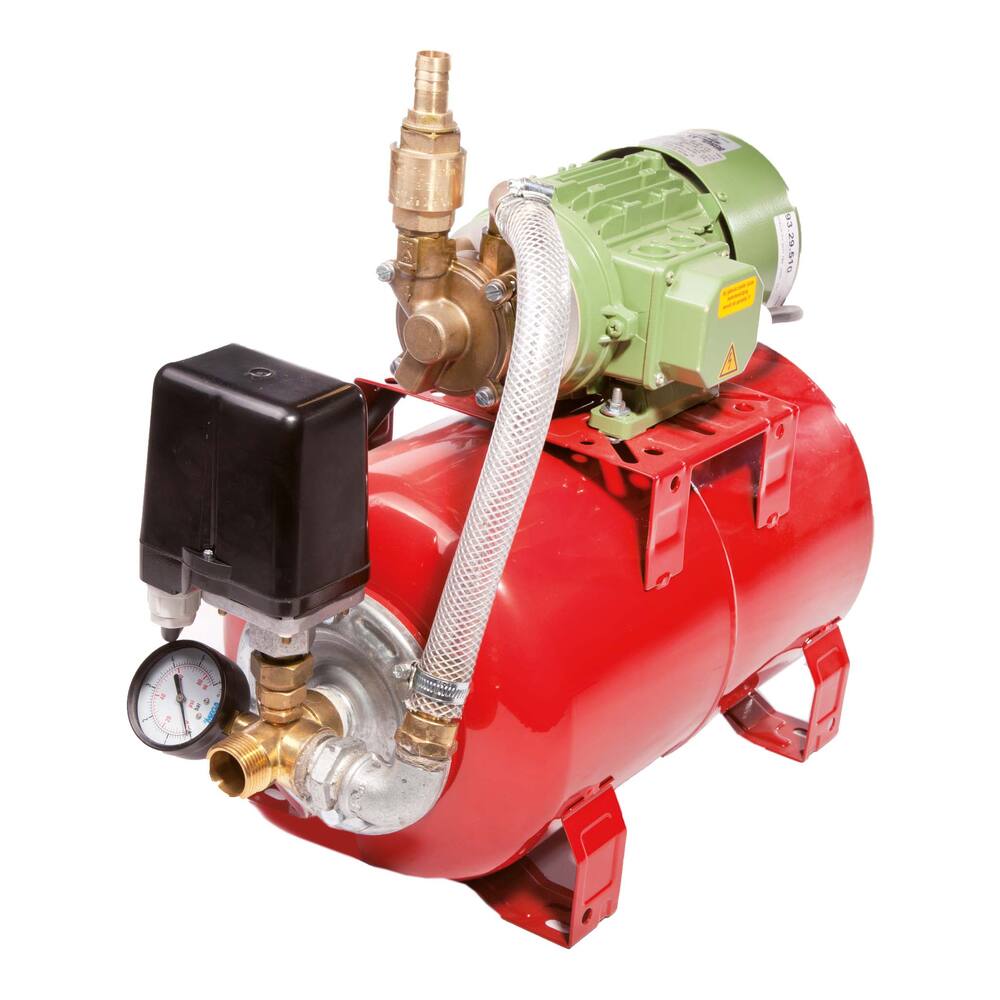

Speck Pressurized Water System PY2071 + 20L Steel Membrane Vessel 24V
Designed for commercial shipping and pleasure craft, this system includes a pressure vessel, non-return valve, manometer pressure switch, and electric pump, providing reliable water supply under pressure.
- Type: PY
- Colour: olive green with brass
- Pump type: self-priming centrifugal pump
- Impeller type: open peripheral impeller
- Motor type: brush motor
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: brass
- Material impeller housing: brass
- Material pump housing: brass
- Material pump shaft: stainless steel 1.4122
- Liquids handled: clean water
- Capacity: 360 litres per hour at 2.5 bar
- Type pressure vessel: horizontal 20 l membrane vessel with approx. 8 litres useful water capacity
- Switch on pressure: 1.0 bar
- Switch off pressure: 3.0 bar
- Dimensions (LxWxH): 530 x 280 x 460 mm
- Weight: 16 kg
- Amperage: 24.4 A
- Shaft power: 0.37 kW, 0.5 hp
- Item number of the pump: 93.29.510
- Product code: 97.29.010
- Number of tapping points: geyser and 2 tapping points
- Suction head: 8.0 m
- Pipe diameter pressure: 3/4"
- Pipe diameter suction: 1/2"
- Model: 20 Litre steel container
- Pump type: pressurized water
- Medium: water
- Particle size: 2 mm
- Discharge head max.: 30.0 m
- Voltage: 24 V DC
- Protection class: IP68
- ATEX: No
- Free flow (L/hour): 360
- Capacity at 5 meter (L/hour): 360
-
