The Speck PM10 + 50L with 24V DC motor is designed for marine and recreational craft applications. This professional system delivers 1,000 L/h at 3.5 bar with a self-priming plunger pump. It includes a 50-litre stainless steel membrane vessel and requires installation by an accredited installer.
- Description
- Ask a Question
-

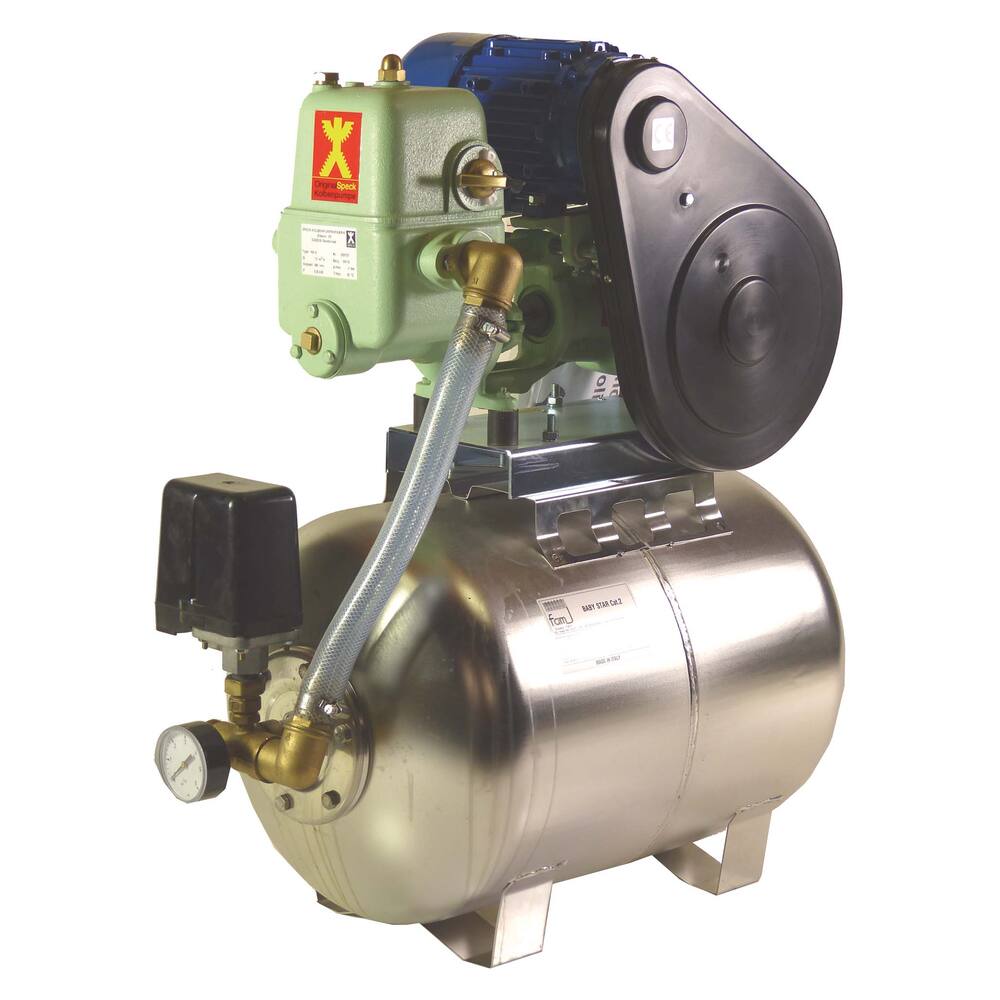

Speck Pressurized Water System PM10 + 50L Stainless Steel Membrane Vessel 24V
This professional water pressurization system is ideal for inland shipping, seagoing shipping, and recreational craft. It includes a pressure vessel, non-return valve, manometer, pressure switch, and an electric pump powered by 24 V DC.
- Type: PM (Pumpmeister)
- Colour: light green
- Pump type: self-priming plunger pump with plunger (piston) impeller
- Motor type: brushless motor
- Shaft seal: stop bush
- Material plunger: Simrit
- Material cylinder bush: stainless steel
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids handled: clean water
- Voltage: 24 V DC (2 year IDEAAL guarantee)
- Capacity: 1,000 litres per hour at 3.5 bar
- Pressure vessel: horizontal 50 l stainless steel membrane vessel with approx. 7 litres useful water capacity
- Switch on pressure: 2.0 bar
- Switch off pressure: 3.5 bar
- Suitable for geyser and 2 or 3 draw off points (not used simultaneously)
- Dimensions (LxWxH): 675 x 350 x 775 mm (depending on motor type)
- Weight: 57 kg (depending on motor type)
- Amperage: 24 V, 17.4 A (Ideaal 15.0 A)
- Shaft power: 0.25 kW (0.33 hp) at 1,450 rpm
- Product code: 97.62.005
- Number of tapping points: geyser and 2-3 tapping points
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: pressurized water
- Medium: water
- Particle size: 2 mm
- Discharge head max: 35.0 m
- Current: DC
- Protection class: IP68
- ATEX certification: No
- Free flow: 1000 L/hour
- Capacity at 5 meter: 1000 L/hour
- Note: Must be installed by an accredited installer.
-
