ID
1316843
$ 1,182.82
1-2 weeks delivery time
-
+
The Koshin FA-100 Drum Pump is an electric centrifugal pump designed for efficiently transferring small amounts of liquid from drums and jerry cans. Operating on 230V with a brush motor, this aluminum pump features an open impeller and double Viton lip seal, capable of handling gas oil, kerosene, and petroleum with flow rates ranging from 750 to 2,600 litres per hour depending on discharge head requirements.
- Description
- Ask a Question
-

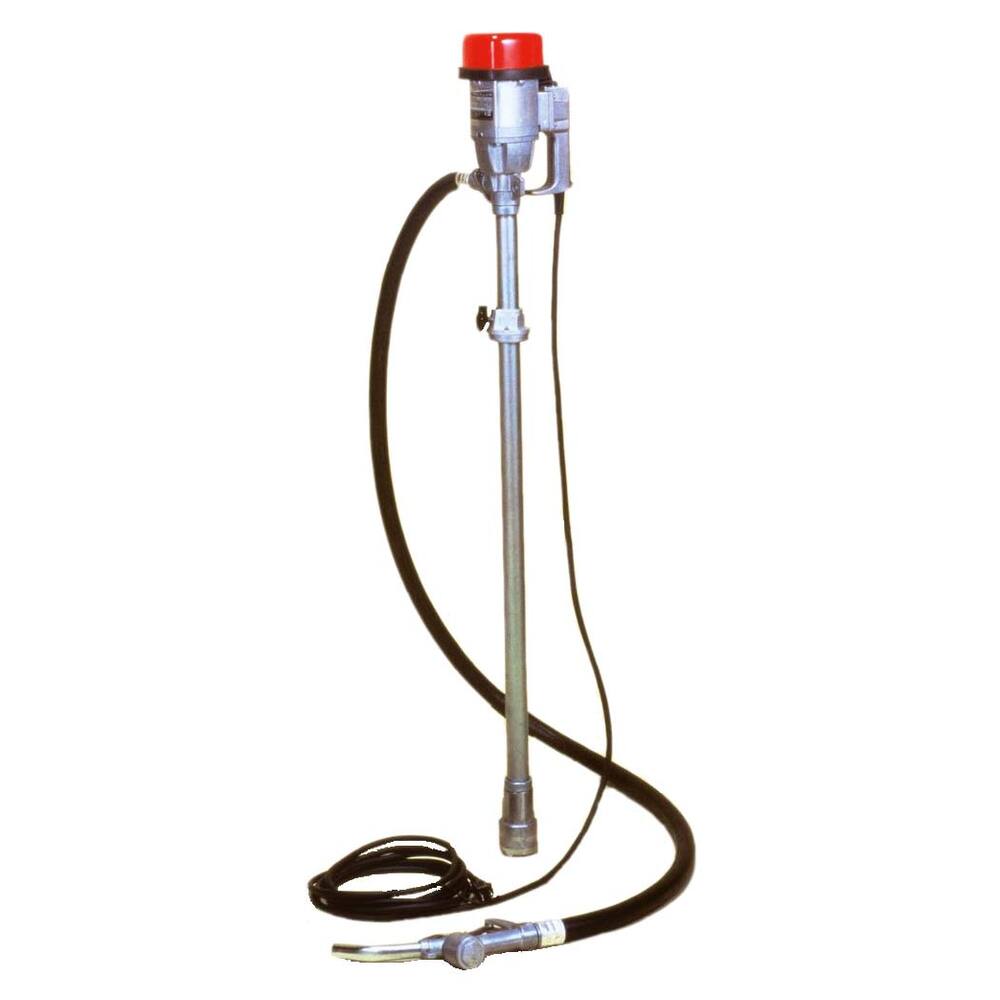

Koshin FA-100 - Drum Pump 230V
Perfect for quickly pumping small amounts of liquid from drums and jerry cans, ideal for industrial, laboratory, and general use.
- Type: FA
- Colour: aluminium
- Pump type: centrifugal pump
- Impeller type: open impeller
- Motor type: brush motor
- Shaft seal: double Viton lip seal
- Material impeller and chamber: aluminium
- Material pump housing: aluminium
- Material pump shaft: steel
- Liquids handled: gas oil, kerosene, petroleum (not petrol or lubricating oil)
- Flow rates at different heads:
- 2 metres head: 2,600 litres/hour
- 4 metres head: 1,800 litres/hour
- 6 metres head: 750 litres/hour
- Maximum discharge head: 7.0 metres
- Particle size max: approx. 2 mm, non-abrasive
- Minimum pumping depth: 10 mm
- Connection: 3/4" internal thread with 2 metre oil resistant rubber hose and nozzle
- Inlet: 900 mm steel suction pipe with drum connection
- Dimensions: diameter 120/56 mm, height 1180 mm
- Weight: 10.5 kg
- Electrical specs: 230 V, 1.0 A, AC, 50 Hz
- Shaft power: 0.1 kW, 0.15 hp, 7500 rpm
- Cable: 5 metre oil resistant rubber cable (no plug)
- Product code: 96.20.100
- Suction head: 0.9 m
- Pipe diameter pressure and suction: 3/4"
- Protection class: IP68
- Free flow: 3000 L/Hour
- Capacity at 5 meter head: 900 L/hour
-
