The Desmi Pump NSA80-250C/10-220 11KW 440/690V Bronze is a highly regarded deck wash and bilge pump for commercial shipping, compliant with classification standards and offered with certification. It features a bronze pump housing for enhanced corrosion resistance and handles water, sea water, and gasoil, providing a maximum flow of 69,000 liters per hour and a max discharge head of 52.5 meters.
- Description
- Ask a Question
-

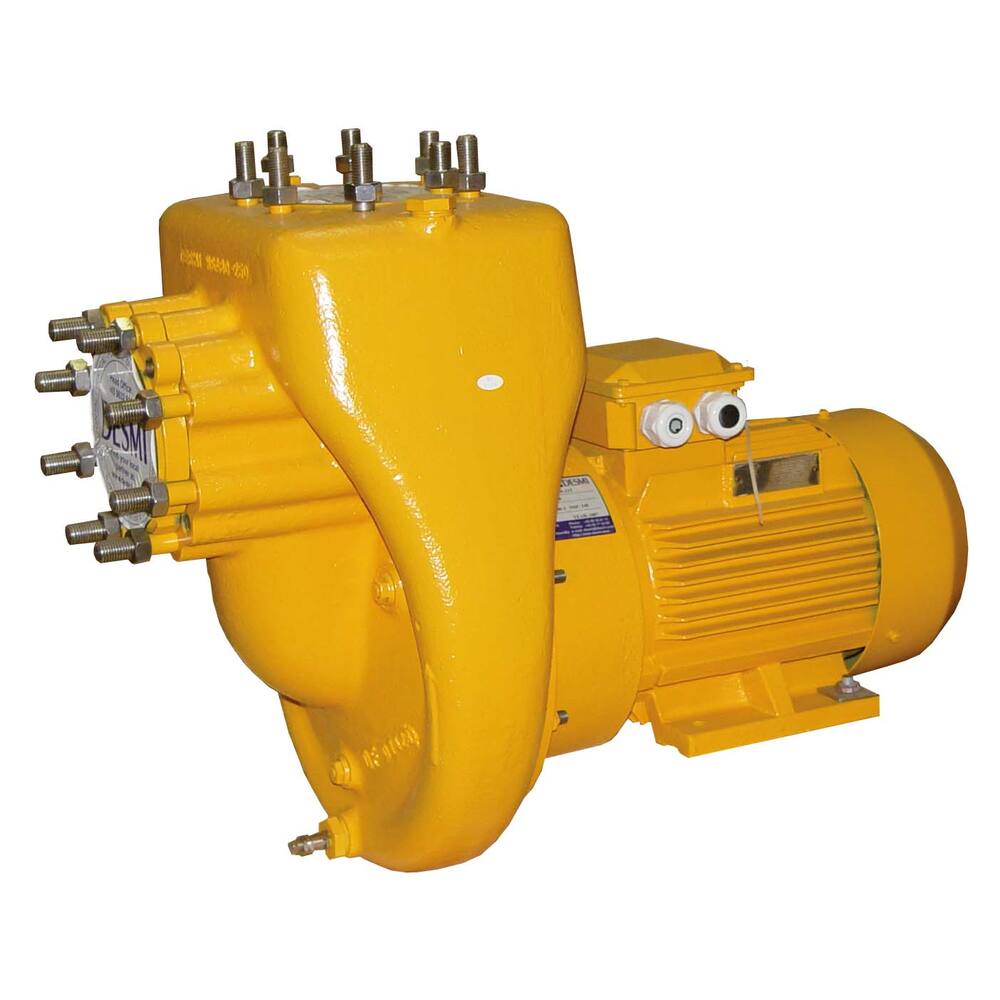

Desmi Pump NSA80-250C/10-220 11KW 440/690V Bronze
A highly regarded deck wash and bilge pump for commercial shipping, compliant with classification standards and offered with certification, featuring a bronze pump housing.
- Type: NSA
- Colour: yellow
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Motor type: short circuit motor
- Fuse: NOT inbuilt
- Shaft seal: brass on carbon mechanical seal
- Material impeller: bronze
- Material wearing plate: bronze
- Material pump housing: bronze
- Material pump shaft: SS
- Liquids: clean and contaminated liquids with coarser particles, such as water, sea water, gas oil etc.
- Performance:
- 30 metres head: 69,000 litres per hour
- 35 metres head: 60,000 litres per hour
- 40 metres head: 51,000 litres per hour
- 45 metres head: 42,000 litres per hour
- 50 metres head: 24,000 litres per hour
- Connections: flange 80 x 160 x pitch circle diam. 125 mm, 4 x M12 (supplied without flange)
- Dimensions (LxWxH): 800 x 375 x 505 mm
- Weight: 178 kg
- Amperage: 8.8 A
- Shaft power: 11.0 kW, 14.6 hp, 2900 rpm
- Product code: 92.08.891
- Suction head: 8.0 m
- Pipe diameter pressure: 50 mm Flange
- Pipe diameter suction: 50 mm Flange
- Model: Bronze pump housing
- Pump type: Dry set-up pump, self-priming
- Medium: Water, water with coarse components, sea water, gasoil
- Particle size: 4 mm
- Discharge head Max.: 52.5 m
- Voltage: 400/690 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow (L/hour): 69,000
- Capacity 5 meter (L/hour): 69,000
-
