ID
1316805
1-2 weeks delivery time
Our managers will contact you and clarify the terms of the order
The Desmi Pump NSA80-250/16-240 4KW 440/690V is a trusted deck wash and bilge pump for commercial shipping, compliant with classification organizations and supplied with certification. It features a cast iron pump housing and bronze impeller, handling water and water with coarse components, with a maximum flow of 78,000 liters per hour and a max discharge head of 18.2 meters.
- Description
- Ask a Question
-

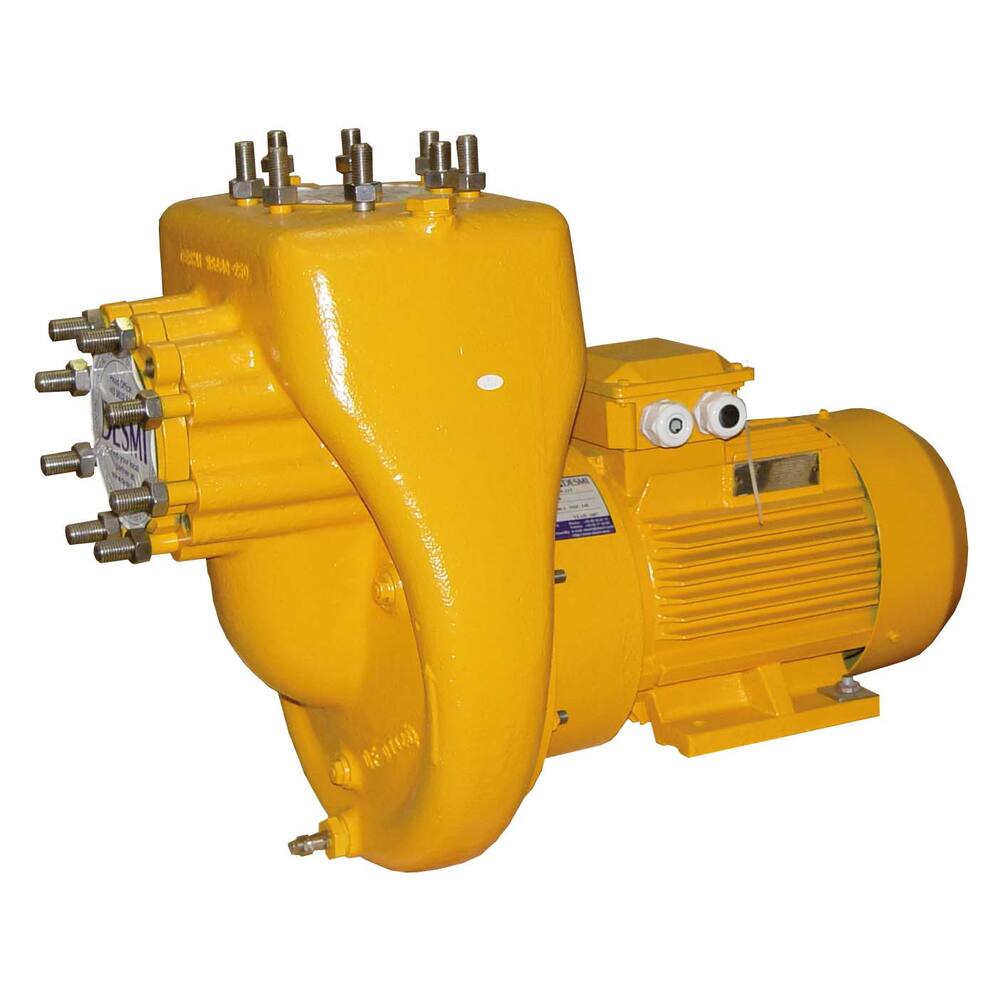

Desmi Pump NSA80-250/16-240 4KW 440/690V
A trusted deck wash and bilge pump designed for commercial shipping, fully compliant with classification organizations and supplied with certification.
- Type: NSA
- Colour: yellow
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Motor type: short circuit motor
- Fuse: NOT inbuilt
- Shaft seal: brass on carbon mechanical seal
- Material impeller: bronze
- Material wearing plate: bronze
- Material pump housing: cast iron
- Material pump shaft: SS
- Liquids: clean and contaminated liquids with coarser particles, such as water, gas oil etc.
- Performance:
- 10 metres head: 78,000 litres per hour
- 15 metres head: 54,000 litres per hour
- Connections: flange 80 x 160 x pitch circle diam. 125 mm, 4 x M12 (supplied without flange)
- Dimensions (LxWxH): 690 x 375 x 505 mm
- Weight: 116 kg
- Amperage: 8.8 A
- Shaft power: 4.0 kW, 5.3 hp, 1450 rpm
- Product code: 92.08.840
- Suction head: 8.0 m
- Pipe diameter pressure: 80 mm Flange
- Pipe diameter suction: 80 mm Flange
- Model: Cast-iron pump housing
- Pump type: Dry set-up pump, self-priming
- Medium: Water, water with coarse components
- Particle size: 4 mm
- Discharge head Max.: 18.2 m
- Voltage: 400/690 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow (L/hour): 78,000
- Capacity 5 meter (L/hour): 78,000
-
