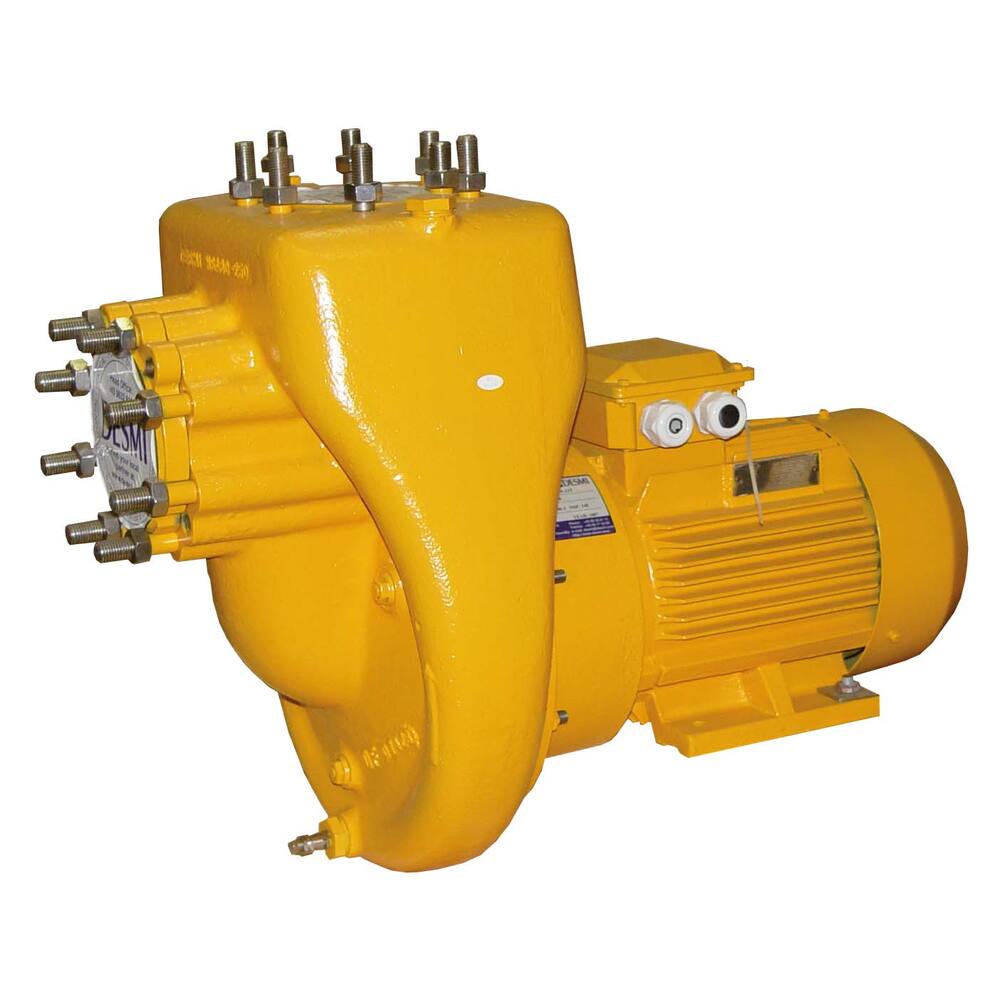

The Desmi Pump NSA50-200/195 7.5KW 400V Bronze is a durable deck wash and bilge pump tailored for commercial shipping, fully compliant with classification standards and offered with certification. It has a bronze pump housing for corrosion resistance and handles water, sea water, and gasoil, providing a maximum flow of 52,000 liters per hour and a max discharge head of 45.3 meters.
- Description
- Ask a Question
-
Desmi Pump NSA50-200/195 7,5KW 400V Bronze
This robust deck wash and bilge pump is tailored for commercial shipping operations, meeting all classification organization standards and offered with certification.
- Type: NSA
- Colour: yellow
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Motor type: short circuit motor
- Fuse: NOT inbuilt
- Shaft seal: brass on carbon mechanical seal
- Material impeller: bronze
- Material wearing plate: bronze
- Material pump housing: bronze
- Material pump shaft: SS
- Liquids handled: clean and contaminated liquids with coarser particles such as water, sea water, gas oil
- Performance at various heads:
- 20 metres head: 52,000 litres per hour
- 25 metres head: 46,000 litres per hour
- 30 metres head: 40,000 litres per hour
- 35 metres head: 32,000 litres per hour
- 40 metres head: 20,000 litres per hour
- Additional 40 metres head: 4,000 litres per hour
- Connections: flange 50 x 160 x pitch circle diam. 125 mm, 4 x M12 (supplied without flange)
- Dimensions (LxWxH): 700 x 300 x 440 mm
- Weight: 121 kg
- Amperage: 8.8 A
- Shaft power: 7.5 kW, 10.0 hp, 2900 rpm
- Product code: 92.08.571
- Suction head: 8.0 m
- Pipe diameter pressure: 50 mm Flange
- Pipe diameter suction: 50 mm Flange
- Model: Bronze pump housing
- Dry set-up pump: self-priming
- Mediums: Water, water with coarse components, sea water, gasoil
- Particle size max: 4 mm
- Max discharge head: 45.3 m
- Voltage: 400/690 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 52,000 L/hour
- Capacity at 5 meter: 52,000 L/hour
-
