ID
1316774
$ 1,149.07
1-2 weeks delivery time
-
+
The City Pumps F1, 150MA + Ball Float 230V is a robust stainless steel fully submersible centrifugal pump designed for demanding shipping, construction, and industrial use. It features a dry motor with thermal safeguard, an open stainless steel impeller, and a ceramic carbon mechanical seal with oil chamber and extra lip seal. The pump handles slightly contaminated and mildly acidic water up to 50°C, pumps down to 30 mm, and delivers flow rates up to 36,000 liters per hour with a maximum discharge head of 23.0 meters, including a float switch for automatic operation.
- Description
- Ask a Question
-

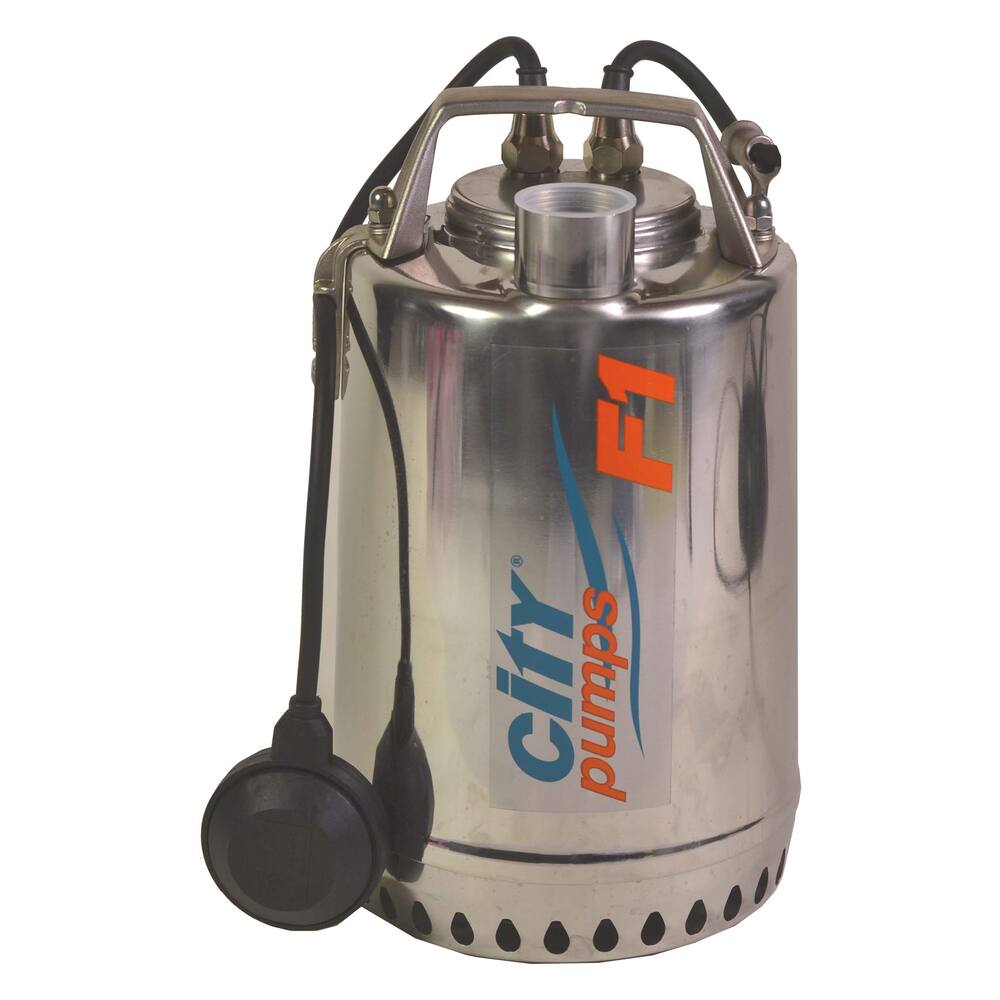

City Pumps F1, 150MA + Ball Float 230V
This robust stainless steel tube pump is designed for demanding shipping, construction, and industrial use, ideal for bilge and ballast pumping with added float switch functionality.
- Type: F1
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: dry motor, IP68, Class F
- Fuse: inbuilt thermal safeguard (230 Volt version only)
- Shaft seal: ceramic carbon mechanical seal with oil chamber and extra lip seal at motor side
- Maximum submersion depth: 10 metres
- Material impeller: stainless steel 304
- Material impeller housing: stainless steel 304
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel EN 10088-3, 1.4104
- Suitable liquids: slightly contaminated water and water with somewhat higher acidity, continuous temperature 50°C (up to 90°C max 3 minutes)
- Flow rates:
- At 10 metres: 14,880 litres/hour
- At 15 metres: 9,120 litres/hour
- At 20 metres: 36,000 litres/hour
- Pumps down to 30 mm (without float)
- Particle size: 10 mm, no sand or gravel
- Connections: 1.1/2" inner thread
- Dimensions: diameter 215 mm, height 355 mm
- Weight: 14.0 kg
- Amperage: 2.0 A
- Shaft power: 1.1 kW, 1.5 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F with earthed plug and connection at pump side
- Product code: 90.09.216
- Pipe diameter pressure: 1.1/2"
- Pipe diameter suction: -
- Pump type: Submersible pump
- Medium: Water
- Discharge head Max.: 23.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: Yes
- Free flow: 21,000 L/hour
- Capacity at 5 meter: 18,000 L/hour
-
