ID
1316765
$ 426.10
1-2 weeks delivery time
-
+
The City Pumps F1, 30M 230V is a sturdy stainless steel tube pump ideal for shipping, construction, and industrial applications, serving effectively as a bilge and ballast pump. It has a dry motor with thermal safeguard, an open stainless steel 304 impeller, and a ceramic carbon mechanical seal with oil chamber and extra lip seal. The pump handles slightly contaminated and mildly acidic water up to 50°C, pumps down to 14 mm, and provides a free flow rate of 10,800 liters per hour with a maximum discharge head of 7.5 meters.
- Description
- Ask a Question
-

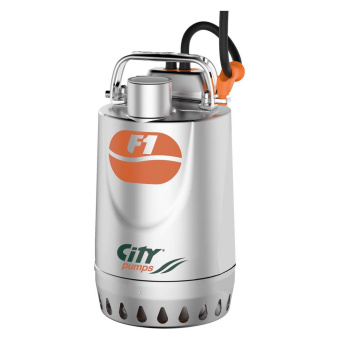

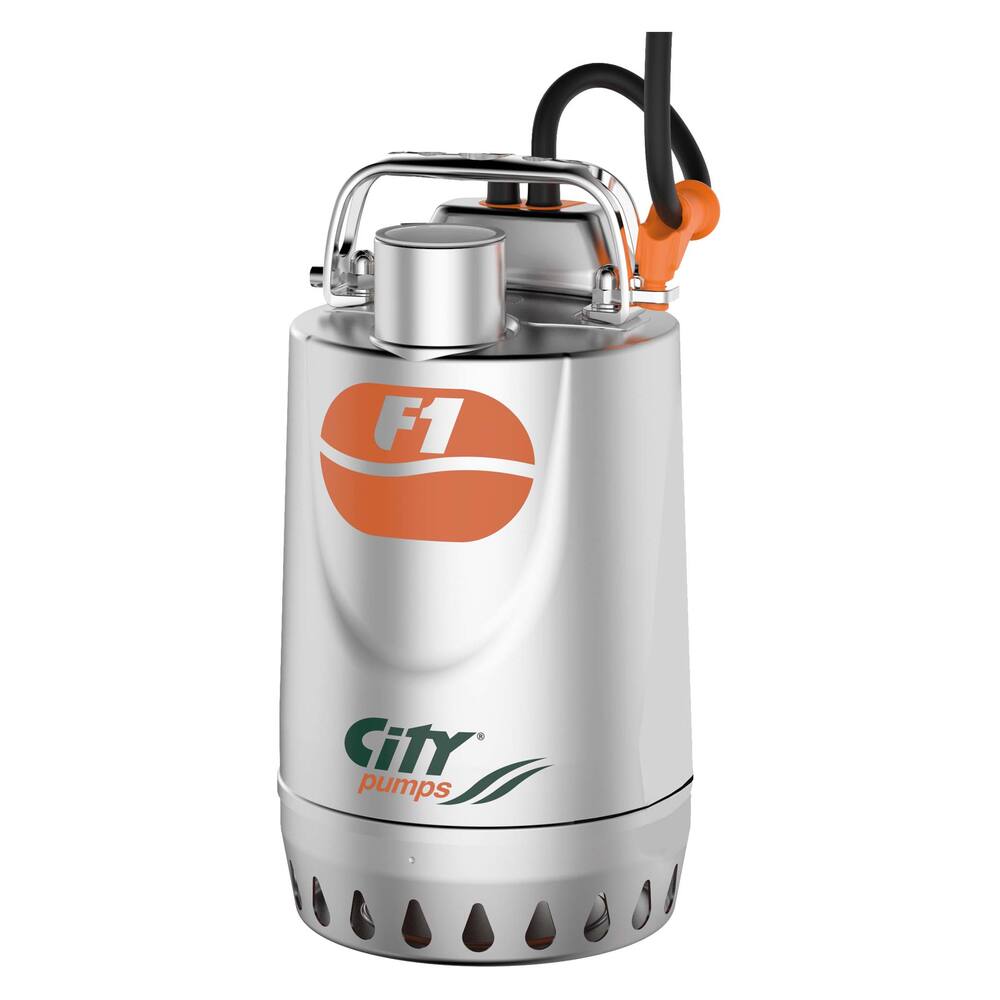

City Pumps F1, 30M 230V
A sturdy stainless steel tube pump ideal for shipping, construction, and industrial applications, serving perfectly as a bilge and ballast pump.
- Type: F1
- Colour: Stainless steel
- Pump type: Fully submersible centrifugal pump
- Impeller: Open impeller made of stainless steel 304
- Motor: Dry motor, IP68, Class F; thermal safeguard fuse built-in (230 V version only)
- Shaft seal: Ceramic carbon mechanical seal with oil chamber and extra lip seal on motor side
- Maximum submersion depth: 10 metres
- Impeller housing: Stainless steel 304
- Motor housing: Stainless steel 304
- Pump shaft: Stainless steel EN 10088-3, 1.4104
- Liquids handled: Slightly contaminated water and mildly acidic water, continuous temp up to 50°C (90°C max for 3 mins)
- Flow rates: 8,400 L/hour at 2 metres head, 5,040 L/hour at 4 metres head
- Pumps down to 14 mm (without float)
- Particle size: 10 mm (no sand or gravel)
- Connections: 1.1/4" inner thread
- Dimensions: Diameter 147 mm, Height 225 mm
- Weight: 4.7 kg
- Electrical: 1.3 A, 0.25 kW (0.33 hp), 2900 rpm
- Cable: 10 metres neoprene H07RN-F with earthed plug and pump side connection
- Product code: 90.09.203
- Pipe diameter pressure: 1.1/4"
- Pump medium: Water
- Discharge head max: 7.5 m
- Voltage: 230 V, AC, 50 Hz
- Protection class: IP68
- Separate float switch: No
- Free flow rate: 10,800 L/hour
- Capacity at 5 meter head: 3,600 L/hour
-
