The City Pumps F1, 100MA + Ball Float 230V is a robust stainless steel fully submersible centrifugal pump designed for heavy-duty use in shipping, construction, and industrial sectors. It features a dry motor with built-in thermal safeguard, an open stainless steel impeller, and a ceramic carbon mechanical seal with oil chamber and extra lip seal. The pump handles slightly contaminated water up to 50°C, pumps down to 30 mm, and delivers a free flow rate of 20,000 liters per hour with a maximum discharge head of 20.0 meters, including a float switch for automatic operation.
- Description
- Ask a Question
-

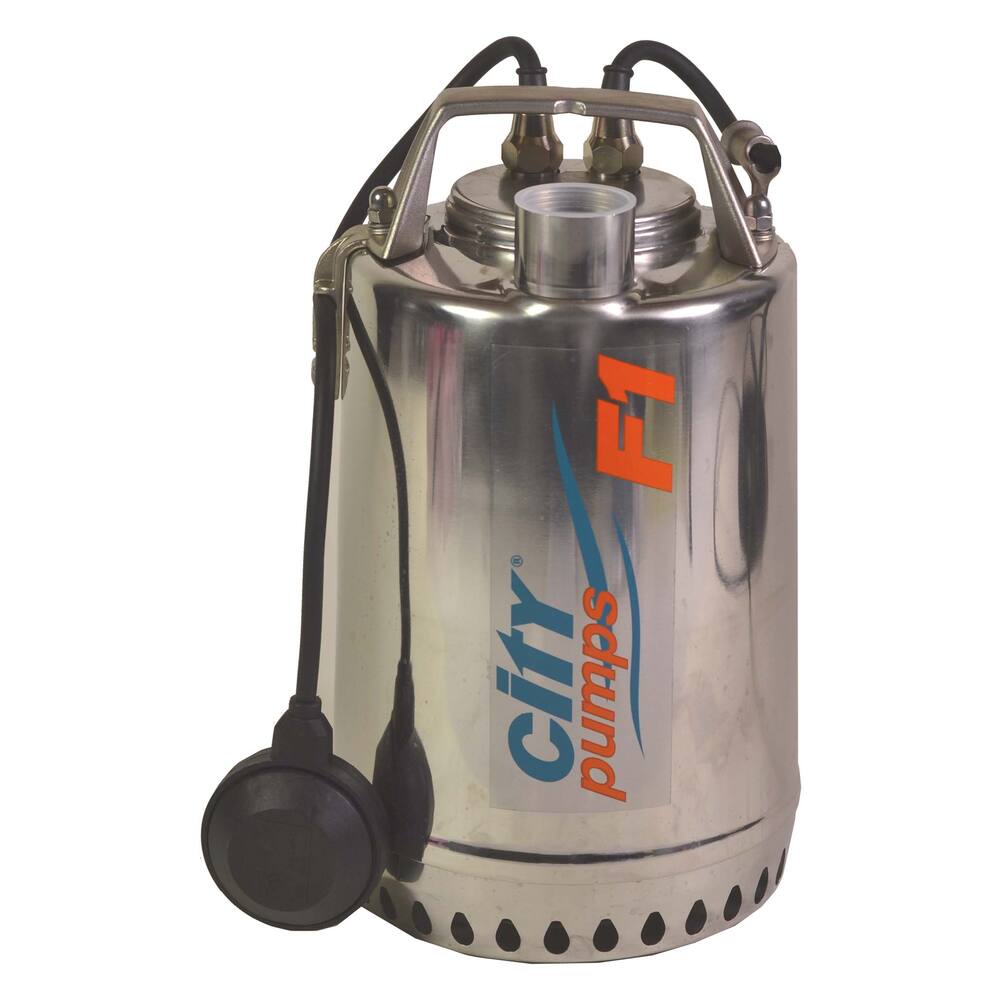

City Pumps F1, 100MA + Ball Float 230V
Designed for heavy-duty use in shipping, construction, and industrial sectors, this robust stainless steel tube pump is perfect as a bilge and ballast pump with reliable performance and float switch integration.
- Type: F1
- Colour: stainless steel
- Pump type: fully submersible centrifugal pump
- Impeller type: open impeller
- Motor type: dry motor, IP68, Class F
- Fuse: thermal safeguard built-in (230 V version)
- Shaft seal: ceramic carbon mechanical seal with oil chamber and extra lip seal on motor side
- Maximum submersion depth: 10 metres
- Impeller material: stainless steel 304
- Impeller housing material: stainless steel 304
- Motor housing material: stainless steel 304
- Pump shaft material: stainless steel EN 10088-3, 1.4104
- Suitable liquids: slightly contaminated water and water with mild acidity up to 50°C continuous (max 90°C for 3 minutes)
- Flow at 10 metres depth: 11,100 litres/hour
- Flow at 15 metres depth: 5,760 litres/hour
- Minimum pumping height: 30 mm (without float)
- Maximum particle size: 10 mm (no sand or gravel)
- Connection: 1.1/2" inner thread
- Dimensions: diameter 215 mm, height 355 mm
- Weight: 13.0 kg
- Amperage: 2.0 A
- Shaft power: 0.75 kW, 1.0 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F with earthed plug and pump-side connection
- Product code: 90.09.211
- Pipe diameter pressure: 1.1/2"
- Maximum discharge head: 20.0 m
- Voltage: 230 V, AC, 50 Hz
- Protection class: IP68
- ATEX certified: No
- Separate float switch: Yes
- Free flow rate: 20,000 L/hour
- Capacity at 5 metres: 16,800 L/hour
-
