The City Pumps Speed 125MA + Ball Float 230V is a compact and cost-effective fully submersible centrifugal pump designed for various applications such as inland shipping, roofing, tennis courts, ponds, and cellars. It features a dry motor with built-in thermal safeguard, an open Noryl impeller, and a double ceramic carbon mechanical seal with lip seal separated by an oil chamber. The pump handles clean or slightly contaminated water up to 40°C, pumps down to 30 mm, and delivers a free flow rate of 24,000 liters per hour with a maximum discharge head of 14.0 meters.
- Description
- Ask a Question
-

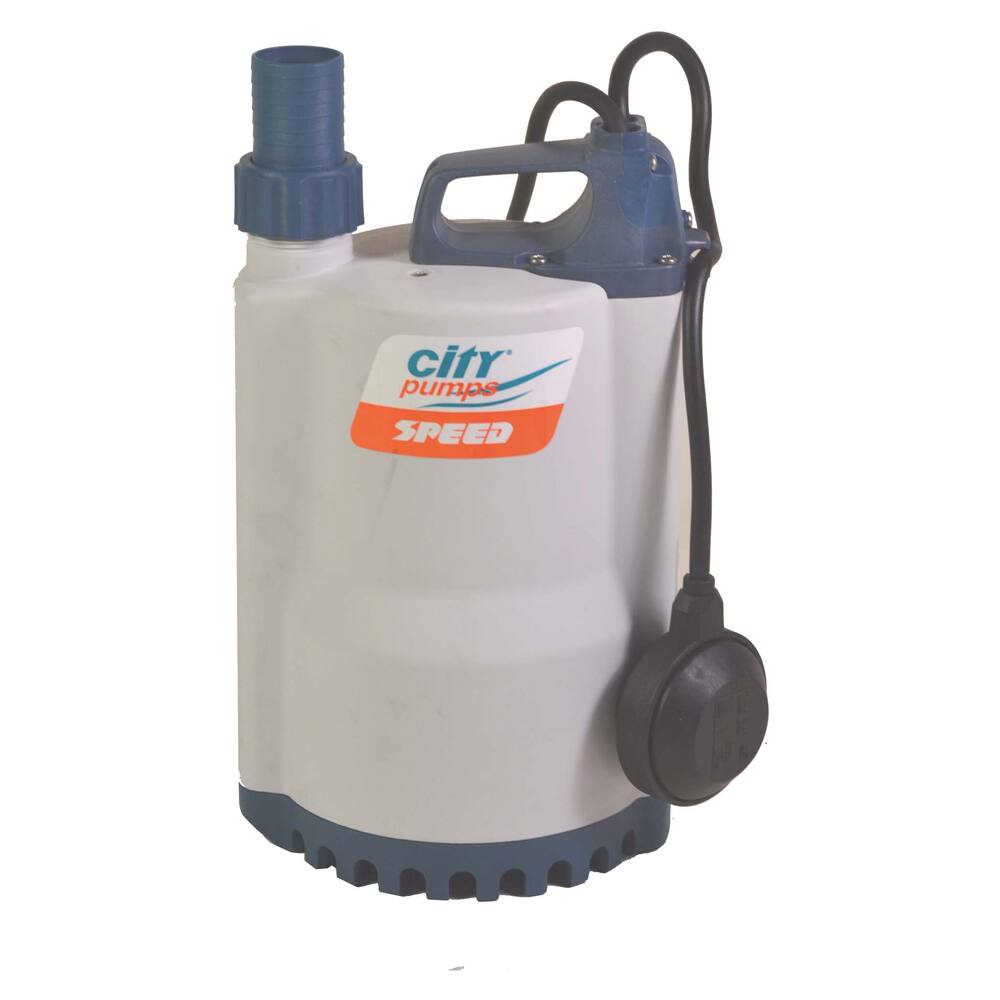

City Pumps Speed 125MA + Ball Float 230V
This compact and cost-effective submersible pump is versatile for various uses including inland shipping, roofing, tennis courts, ponds, and cellars.
- Type: Speed
- Colour: White with blue accents
- Pump type: Fully submersible centrifugal pump
- Impeller: Open impeller made of Noryl
- Motor: Dry motor with built-in thermal safeguard fuse
- Shaft seal: Double ceramic carbon mechanical seal plus lip seal, separated by an oil chamber
- Maximum submersion depth: 3 metres
- Impeller housing: Plastic
- Motor housing: Plastic
- Pump shaft: Stainless steel EN 10088-3, 1.4104
- Suitable liquids: Clean or slightly contaminated water up to +40°C (90°C max for 3 minutes)
- Insulation class: Class F, Protection: IP68
- Performance: 14,000 litres/hour at 10 metres head
- Pumps down to 30 mm (without float)
- Particle size: 10 mm (no sand or gravel)
- Connections: 1.1/2" hose connection and 1.1/2" external thread
- Dimensions: Diameter 204 mm, Height 335 mm
- Weight: 10.8 kg
- Electrical: 3.2 A, 0.92 kW (1.25 hp), 2900 rpm
- Cable: 10 metres neoprene H05-RN-F with earthed plug
- Product code: 90.07.391
- Pipe diameter pressure: 1.1/2"
- Pump medium: Water
- Discharge head max: 14.0 m
- Voltage: 230 V, AC, 50 Hz
- Protection class: IP68
- Separate float switch: Yes
- Free flow rate: 24,000 L/hour
- Capacity at 5 meter head: 18,360 L/hour
-
