ID
1316770
$ 487.22
1-2 weeks delivery time
-
+
The City Pumps F1, 70MA + Ball Float 230V is a robust stainless steel tube pump designed for shipping, construction, and industrial tasks, featuring a ball float switch for automatic operation. It includes a dry motor with thermal safeguard, an open stainless steel 304 impeller, and a ceramic carbon mechanical seal with oil chamber and extra lip seal. The pump handles slightly contaminated and mildly acidic water up to 50°C, pumps down to 30 mm, and offers a free flow rate of 14,400 liters per hour with a maximum discharge head of 12.0 meters.
- Description
- Ask a Question
-

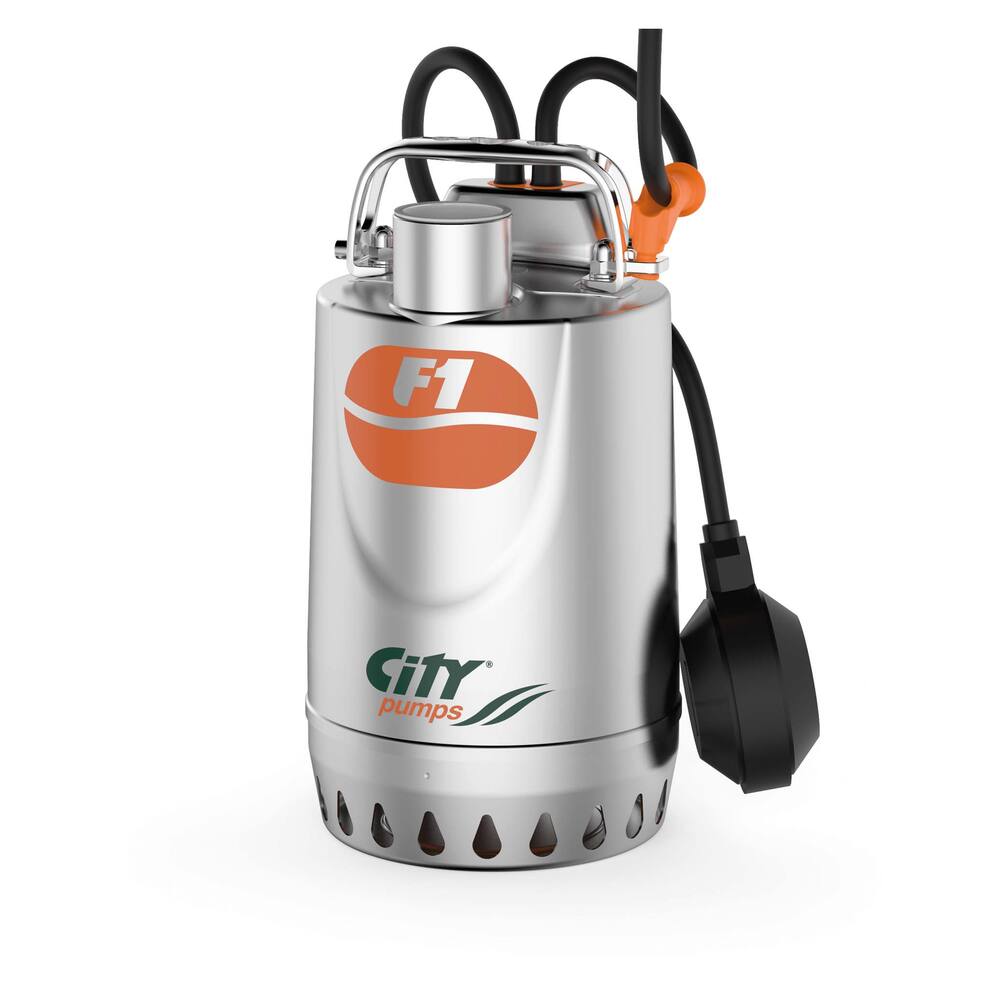

City Pumps F1, 70MA + Ball Float 230V
This stainless steel tube pump offers robust performance ideal for shipping, construction, and industrial tasks. It excels as a bilge and ballast pump with high durability and efficient water handling.
- Type: F1
- Colour: stainless steel
- Pump type: fully submersible centrifugal pump
- Impeller type: open impeller
- Motor type: dry motor, IP68, Class F
- Fuse: thermal safeguard built-in (230 V version)
- Shaft seal: ceramic carbon mechanical seal with oil chamber and extra lip seal on motor side
- Maximum submersion depth: 10 metres
- Impeller material: stainless steel 304
- Impeller housing material: stainless steel 304
- Motor housing material: stainless steel 304
- Pump shaft material: stainless steel EN 10088-3, 1.4104
- Suitable liquids: slightly contaminated water and water with mild acidity up to 50°C continuous (max 90°C for 3 minutes)
- Flow at 10 metres depth: 3,120 litres/hour
- Minimum pumping height: 30 mm (without float)
- Maximum particle size: 10 mm (no sand or gravel)
- Connection: 1.1/4" inner thread
- Dimensions: diameter 147 mm, height 285 mm
- Weight: 7.2 kg
- Amperage: 3.6 A
- Shaft power: 0.55 kW, 0.75 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F with earthed plug and pump-side connection
- Product code: 90.09.208
- Pipe diameter pressure: 1.1/4"
- Maximum discharge head: 12.0 m
- Voltage: 230 V, AC, 50 Hz
- Protection class: IP68
- ATEX certified: No
- Separate float switch: Yes
- Free flow rate: 14,400 L/hour
- Capacity at 5 metres: 10,440 L/hour
-
