The City Pumps F1, 70M 230V is a sturdy stainless steel tube pump engineered for shipping, construction, and industrial sectors, offering enhanced height and power for reliable bilge and ballast pumping. It has a dry motor with thermal safeguard, an open stainless steel 304 impeller, and a ceramic carbon mechanical seal with oil chamber and extra lip seal. The pump handles slightly contaminated and mildly acidic water up to 50°C, pumps down to 30 mm, and delivers a free flow rate of 14,400 liters per hour with a maximum discharge head of 12.0 meters.
- Description
- Ask a Question
-

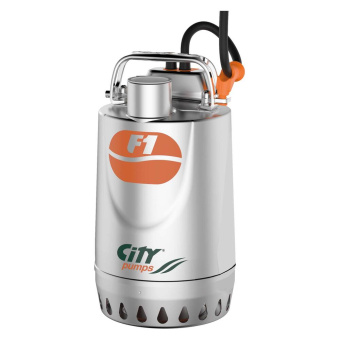

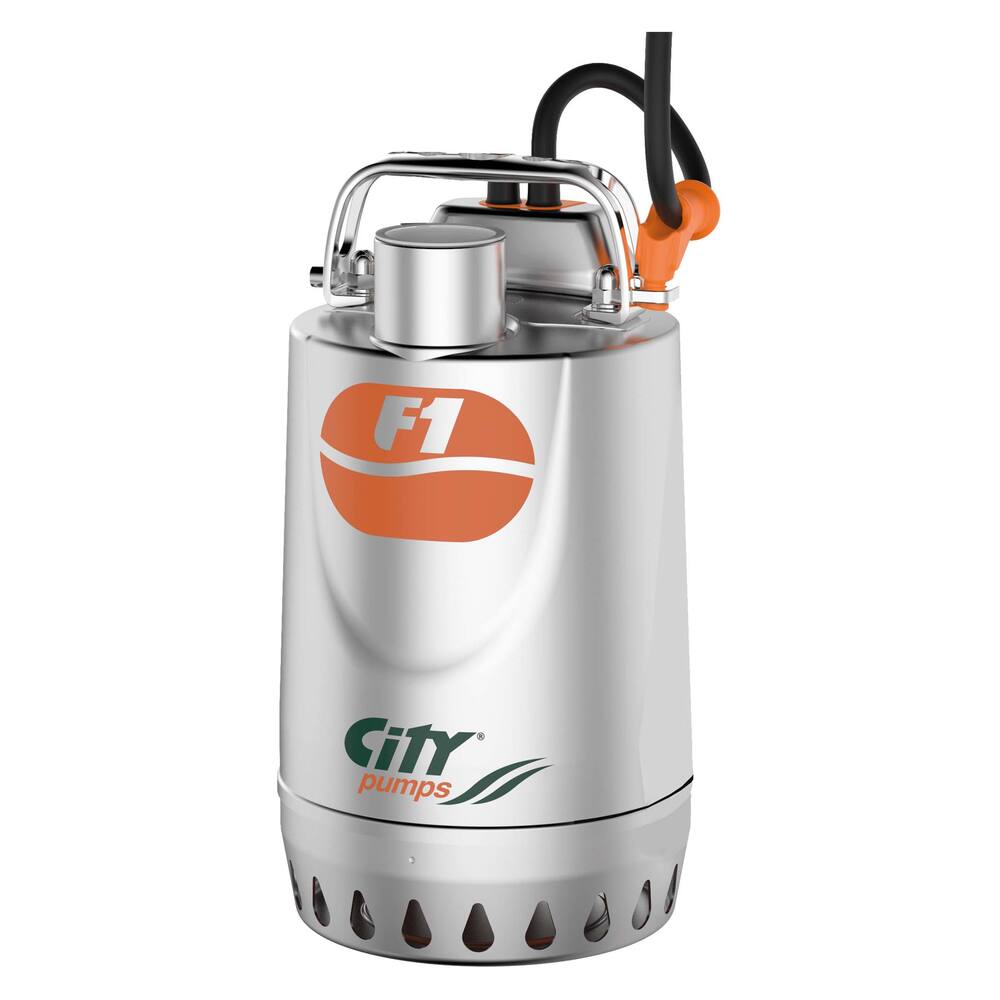

City Pumps F1, 70M 230V
This sturdy stainless steel tube pump is engineered for shipping, construction, and industry sectors. It offers enhanced height and power, making it a reliable bilge and ballast pump.
- Type: F1
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: dry motor, IP68, Class F
- Fuse: inbuilt thermal safeguard (230 Volt version only)
- Shaft seal: ceramic carbon mechanical seal with oil chamber and extra lip seal at motor side
- Maximum submersion depth: 10 metres
- Material impeller: stainless steel 304
- Material impeller housing: stainless steel 304
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel EN 10088-3, 1.4104
- Liquids handled: slightly contaminated water and water with somewhat higher acidity; continuous temperature up to 50°C (max 90°C for 3 minutes)
- Flow rate: 3,120 litres/hour at 10 metres
- Pumps down to 30 mm (only without float)
- Particle size limit: 10 mm, no sand or gravel
- Connections: 1.1/4" inner thread
- Dimensions: diameter 147 mm, height 285 mm
- Weight: 7.2 kg
- Amperage: 3.6 A
- Shaft power: 0.55 kW, 0.75 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F with earthed plug and pump-side plug connection
- Product code: 90.09.207
- Pipe diameter pressure: 1.1/4"
- Pump type: Submersible pump
- Medium: Water
- Discharge head max: 12.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 14,400 L/hour
- Capacity at 5 meter: 10,440 L/hour
-
