ID
1316767
$ 438.32
1-2 weeks delivery time
-
+
The City Pumps F1, 50M 230V is a durable stainless steel tube pump built for demanding environments such as shipping, construction, and industrial settings, excelling as an efficient bilge and ballast pump. It has a dry motor with thermal safeguard, an open stainless steel 304 impeller, and a ceramic carbon mechanical seal with oil chamber and extra lip seal. The pump handles slightly contaminated and mildly acidic water up to 50°C, pumps down to 14 mm, and offers a free flow rate of 14,400 liters per hour with a maximum discharge head of 10.0 meters.
- Description
- Ask a Question
-

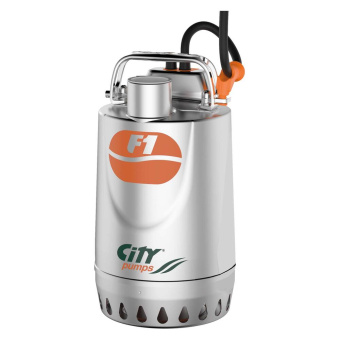

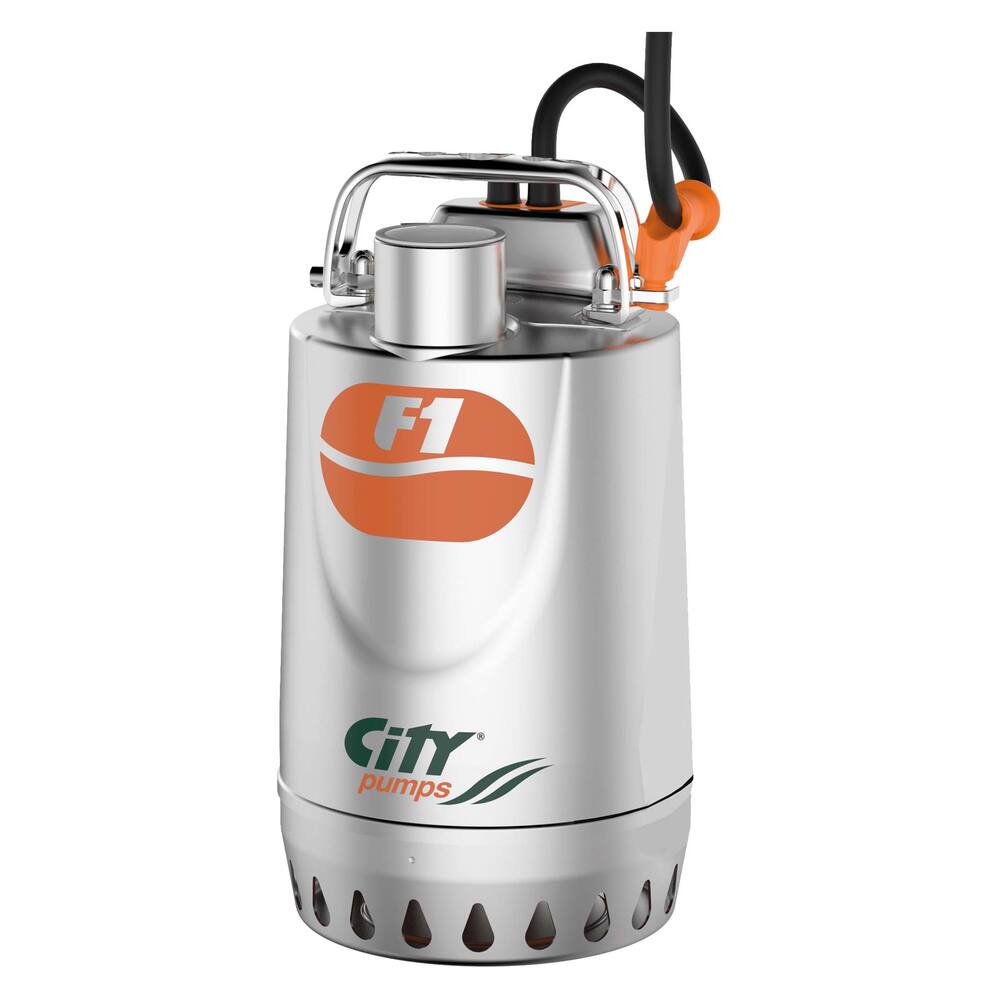

City Pumps F1, 50M 230V
This robust pump features a stainless steel tube construction, designed for demanding environments such as shipping, construction, and industrial settings. It excels as an efficient bilge and ballast pump.
- Type: F1
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: dry motor, IP68, Class F
- Fuse: inbuilt thermal safeguard (230 Volt version only)
- Shaft seal: ceramic carbon mechanical seal with oil chamber and extra lip seal at motor side
- Maximum submersion depth: 10 metres
- Material impeller: stainless steel 304
- Material impeller housing: stainless steel 304
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel EN 10088-3, 1.4104
- Liquids handled: slightly contaminated water and water with somewhat higher acidity; continuous temperature up to 50°C (max 90°C for 3 minutes)
- Flow rates: 13,200 litres/hour at 2 metres, 3,600 litres/hour at 8 metres
- Pumps down to 14 mm (only without float)
- Particle size limit: 10 mm, no sand or gravel
- Connections: 1.1/4" inner thread
- Dimensions: diameter 147 mm, height 225 mm
- Weight: 5.8 kg
- Amperage: 2.0 A
- Shaft power: 0.37 kW, 0.5 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F with earthed plug and pump-side plug connection
- Product code: 90.09.205
- Pipe diameter pressure: 1.1/4"
- Pump type: Submersible pump
- Medium: Water
- Discharge head max: 10.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 14,400 L/hour
- Capacity at 5 meter: 8,400 L/hour
-
