ID
1316763
$ 546.59
1-2 weeks delivery time
-
+
The City Pumps Speed 125M 230V is a submersible centrifugal pump offering higher capacity and power, ideal for inland shipping, roofing, tennis courts, ponds, and cellars. It features a dry motor, open impeller, and double ceramic carbon mechanical seal, pumping water down to 30 mm with a maximum discharge head of 14.0 meters and a free flow rate of 24,000 liters per hour.
- Description
- Ask a Question
-

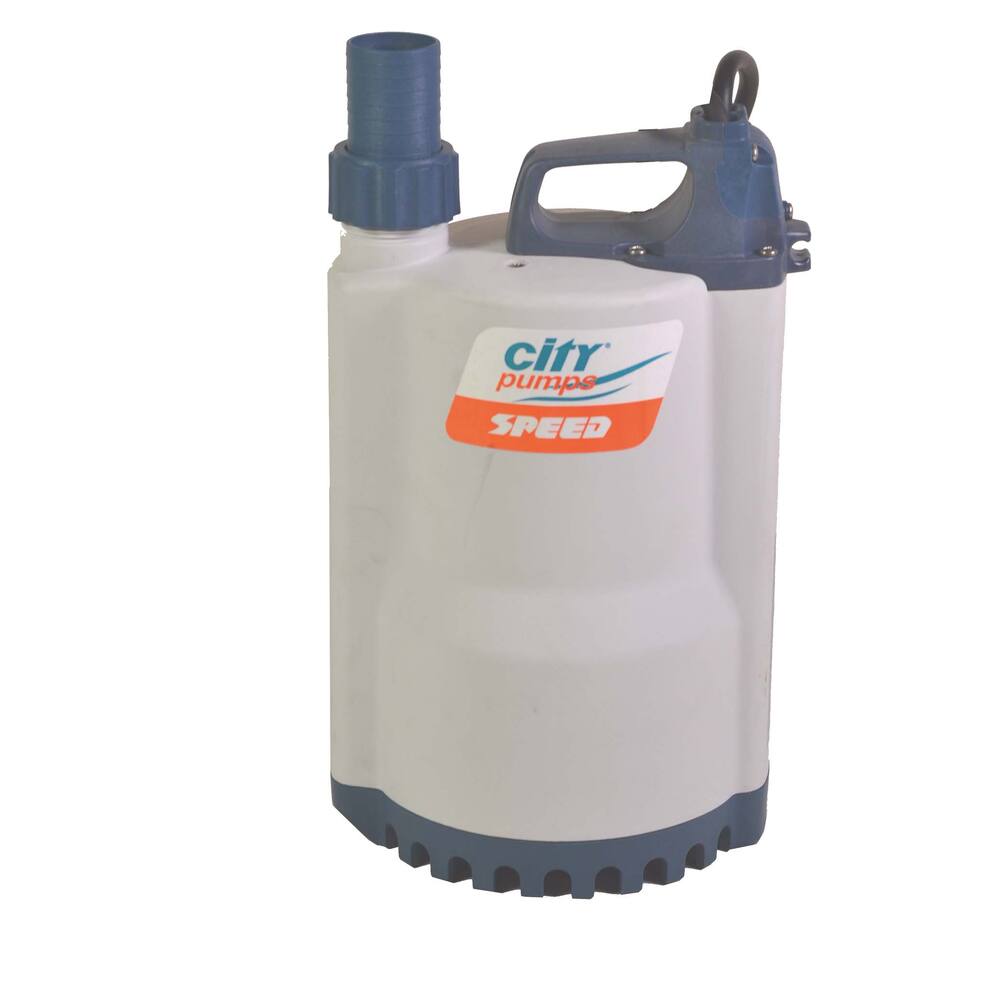

City Pumps Speed 125M 230V
This submersible pump offers slightly higher capacity and power, ideal for inland shipping, roofing, tennis courts, ponds, and cellars.
- Type: Speed
- Colour: white with blue
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: dry motor
- Fuse: inbuilt thermal safeguard
- Shaft seal: double ceramic carbon mechanical seal and lip seal, separated by oil chamber
- Submersion depth: 3 metres
- Material impeller: Noryl
- Material impeller housing: plastic
- Material motor housing: plastic
- Material pump shaft: stainless steel EN 10088-3, 1.4104
- Liquids: clean and slightly contaminated water, max temperature +40°C (+90°C for max 3 minutes)
- Insulation class: Class F, IP68
- 10 metres head flow rate: 14,000 litres per hour
- Pumps down to: 30 mm (only without float)
- Particle size: 10 mm, no sand or gravel
- Connections: 1.1/2" hose connection and 1.1/2" external thread
- Dimensions: diameter 204 mm, height 335 mm
- Weight: 10.8 kg
- Amperage: 3.2 A
- Shaft power: 0.92 kW, 1.25 hp, 2900 rpm
- Cable: 10 metre neoprene H05-RN-F with earthed plug
- Product code: 90.07.390
- Pipe diameter pressure: 1.1/2"
- Pipe diameter suction: -
- Pump type: Submersible pump
- Medium: Water
- Particle size: 10 mm
- Max discharge head: 14.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow rate: 24000 L/hour
- Capacity at 5 meter: 18360 L/hour
-
