ID
1316751
$ 862.20
1-2 weeks delivery time
-
+
The City Jet Pump JSE 30M 400V is a blue self-priming centrifugal pump with an integrated ejector, ideal for pressurizing, garden sprinkling, and transporting clean liquids up to 40°C. It features a limited self-priming centrifugal pump with a closed brass impeller and a 400 V short circuit motor. The pump provides flow rates from 7,200 L/h at 40 m head down to 700 L/h at 70 m head, with a maximum discharge head of 74 m and a suction head of 9 m.
- Description
- Ask a Question
-

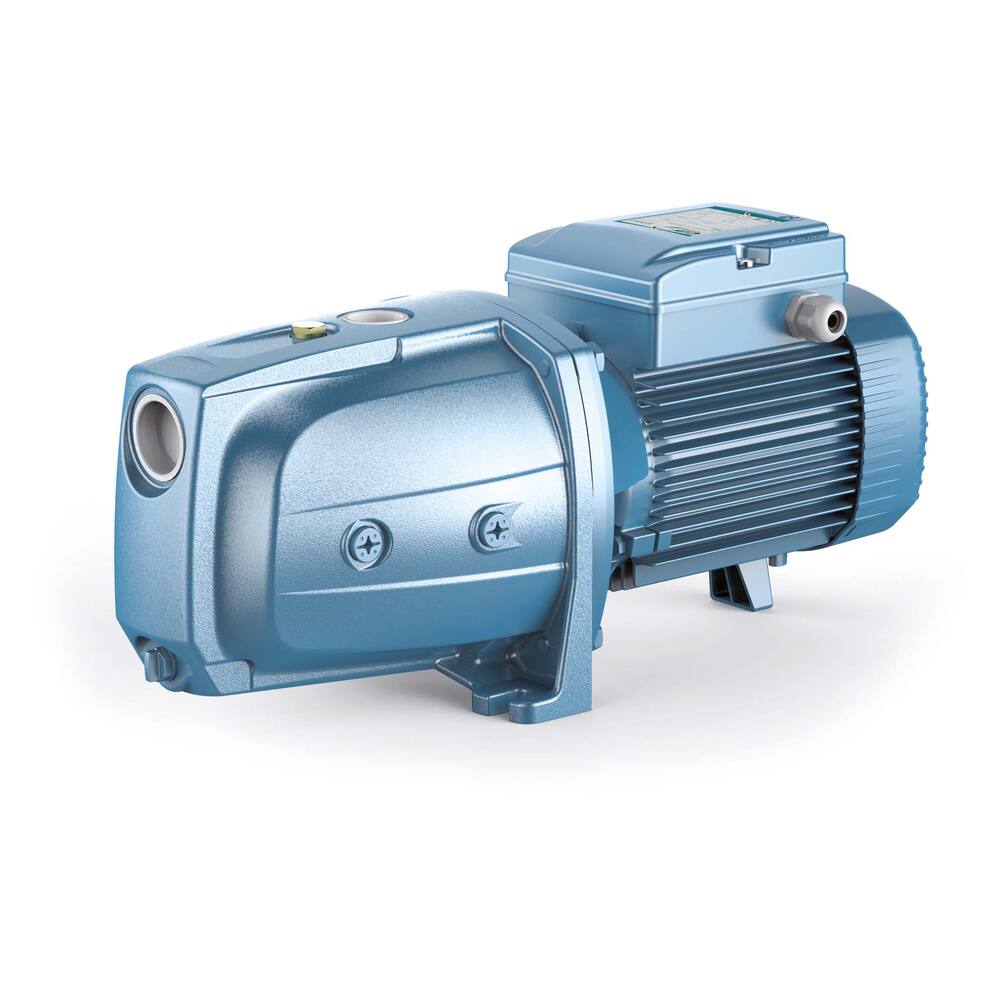

City Jet Pump JSE 30M 400V
The City Jet Pump JSE 30M 400V is a blue self-priming centrifugal pump with an integrated ejector, ideal for pressurizing, garden sprinkling, and transporting clean liquids up to 40°C.
- Type: JSE
- Colour: blue
- Pump type: limited self-priming centrifugal pump
- Impeller type: closed impeller
- Motor type: short circuit motor, 400 volt
- Motor insulation class: F, IP44
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: brass
- Material impeller housing: technopolymer
- Material ejector: technopolymer
- Material pump housing: cast iron
- Material pump shaft: stainless steel EN 10088-3, 1.4104
- Liquids handled: clean water, max temperature 40°C
- Capacity at various heads:
- 40 m head: 7,200 L/h
- 45 m head: 5,760 L/h
- 50 m head: 4,500 L/h
- 55 m head: 3,240 L/h
- 60 m head: 2,250 L/h
- 65 m head: 1,500 L/h
- 70 m head: 700 L/h
- Connection discharge: 1" internal thread
- Connection suction: 1¼" internal thread
- Dimensions (L×W×H): 523 × 206 × 242 mm
- Weight: 26.8 kg
- Electrical amperage: 5.5 A
- Shaft power: 2.2 kW, 3.0 hp, 2900 rpm
- Product code: 93.34.085
- Suction head: 9.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1¼"
- Pump type: dry set-up, self-priming
- Medium: water
- Particle size max: 2 mm
- Max discharge head: 74.0 m
- Voltage: 400 V, AC, 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 7,200 L/hour
- Capacity at 5 m: 7,200 L/hour
-
