ID
1316752
$ 585.12
1-2 weeks delivery time
-
+
The City Pumps Jet 20L operates on 230V AC for household pressurization. This system includes a complete pump setup with pressure vessel, manometer, non-return valve, and pressure switch. It delivers 1,320 L/h at 3.0 bar with a 20-litre horizontal membrane vessel providing 8 litres of useful water capacity.
- Description
- Ask a Question
-

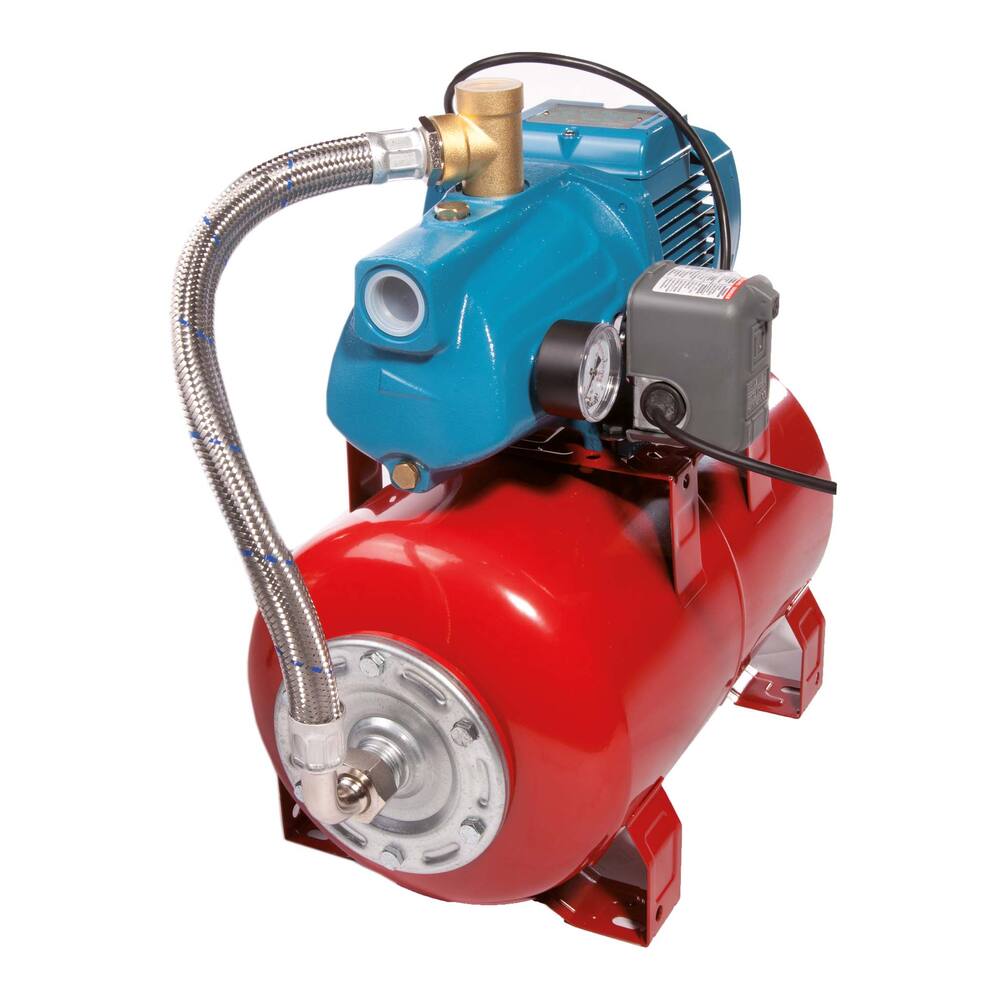

City Pumps Pressurized Water System Jet 20L 230V
This pressurization system is suitable for households or locations with mains voltage availability. It includes a pressure vessel, manometer, non-return valve, pressure switch, and an electric pump, forming a complete pump system.
- Type: JET
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: closed
- Motor type: brushless motor
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: plastic
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids handled: clean water
- Capacity: 1,320 litres per hour at 3.0 bar
- Suction height: 9.0 metres using foot valve
- Type pressure vessel: horizontal 20 litre membrane vessel with approx. 8 litres useful water capacity
- Switch on pressure: 1.5 bar
- Switch off pressure: 3.0 bar
- Dimensions (l x w x h): 480 x 285 x 500 mm
- Weight: 17.1 kg
- Amperage: 3.7 A
- Shaft power: 0.6 kW, 0.8 hp, 2850 rpm
- Product code: 97.34.650
- Number of tapping points: geyser and 2 tapping points
- Suction head: 9.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: pressurized water
- Medium: water
- Particle size: 2 mm
- Discharge head max.: 30.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX certified: No
- Separate float switch: not included
- Free flow: 1,320 L/hour
- Capacity at 5 metres: 1,320 L/hour
-
