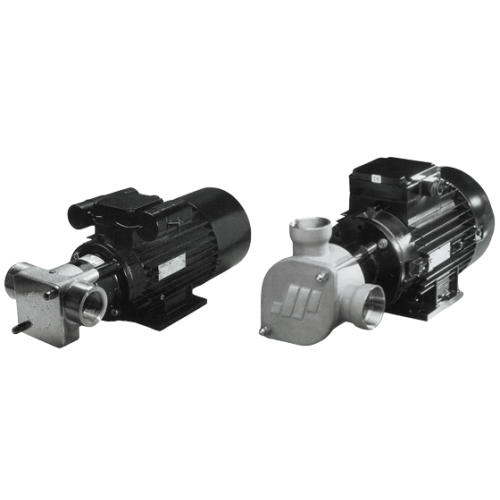

Johnson Pump FIP40 - Heavy-Duty Bronze Impeller Pump for High-Flow Transfer

ID 1331080

$ 6,183.35

1-2 weeks delivery time

- +

Add to cart

The Johnson Pump FIP40 heavy-duty impeller pump delivers 295 l/min capacity from a robust bronze body driven by a 230V single-phase motor for dependable fluid transfer. Self-priming up to 5 m and a maximum head of 25 m support confident suction lift and discharge performance, while the 1-1/2" connection simplifies integration. Designed for 3°C to 80°C operation and supplied with a mechanical seal, this 18.2 kg pump is built for demanding marine and industrial circulation tasks.

Description
Ask a Question

Johnson FIP40 High-Capacity Bronze Impeller Pump Unit

The Johnson Pump FIP40 is a heavy-duty impeller pump designed to provide strong, consistent flow with a durable bronze pump body and a 230V single-phase motor. With self-priming capability and substantial head performance, it supports reliable transfer and circulation where dependable suction and discharge are required.

Application

Circulation applications
Fluid transfer where self-priming up to 5 m is required

Technical Specifications

Article Number	66114588001F
EAN	8719182071686
Model	FIP40-Bronze
Pump Type	Heavy-Duty Impeller Pump
Body Material	Bronze
Voltage	230V (1-Phase)
Capacity	295 l/min
Self-Priming Capability	Up to 5 m
Maximum Head	25 m
Connection	1-1/2"
Temperature Range	3°C - 80°C
Weight	18.2 kg

Product Details

Bronze pump body paired with a 230V single-phase motor
Includes a mechanical seal
Built to maintain strong performance across the stated temperature range

Features

High flow output of 295 l/min for efficient transfer
Self-priming up to 5 m to support suction lift requirements
Maximum head of 25 m for reliable discharge capability
1-1/2" connection for straightforward plumbing integration
