ID
1330992
$ 83.01
1-2 weeks delivery time
-
+
The Johnson Pump 32-1650-01-24 submersible cartridge bilge pump delivers dependable bilge dewatering in a compact L650 format for 24V installations. Tool-free removable motor design simplifies maintenance, while the included check valve and dual discharge fittings (90° bend and straight 19 mm / 3/4 in port) support flexible installation. Rated up to 63 l/min (1000 GPH) at 27V straight and 50 l/min (800 GPH) at 1 m (3 ft) head, with a listed maximum head height of 3.5 m.
- Description
- Ask a Question
-

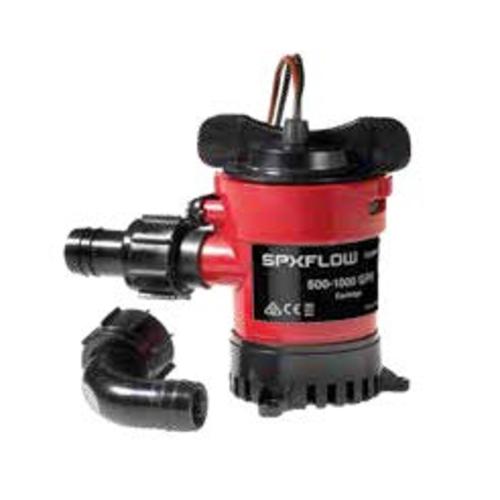

Johnson Pump 32-1650-01-24 L650 Submersible Cartridge Bilge Unit
The Johnson Pump 32-1650-01-24 is a submersible bilge pump from the Cartridge Series, built for convenient service and reliable water removal on board. Its compact form helps it fit in tight bilge spaces, and the cartridge-style construction allows fast upkeep when needed.
Application
- Bilge pumping for marine applications
- Designed for 24V installations
Technical Specifications
Series Cartridge Series Pump Type Submersible bilge pump (cartridge type) Model L650 Voltage 24 V Current Draw (Listed) 1.6 A; 2 A Capacity (27V, Straight) 63 l/min (1000 GPH) Capacity (1 m / 3 ft Head) 50 l/min (800 GPH); 53 l/min Capacity (Listed) 61 l/min Maximum Head Height 3.5 m Dimensions Height 11.0 cm; Width 7.0 cm Diameter 70 mm Discharge Connection 3/4 in (19 mm) Fuse (Listed) 3 A; 5 A Electric Cable 0.75 mm² Seal Type Lip seal Weight (Listed) 0.27 kg Shipping Weight (Listed) 0.70 kg Article Number 663216500124 EAN 8719182072768 Product Portfolio Submersible bilge pumps
Product Details
- Tool-free service: The motor can be removed for maintenance or replacement without tools.
- Included accessories: Check valve plus discharge fittings including a 90° bend and a straight 19 mm (3/4 in) discharge port.
- Dura-Port discharge fittings: Improved discharge connectors intended to help prevent cracking caused by overtightened hose clamps; supplied with both straight and 90° options.
Features
- Compact design for convenient installation
- Cartridge-style construction for easier maintenance
- Versatile discharge configuration with straight and 90° fittings
-
