ID
1330990
$ 159.82
1-2 weeks delivery time
-
+
The Johnson Pump 32-1600-01 heavy duty L1600 bilge pump delivers high-performance water removal for demanding recreational and commercial marine use. Its liquid-cooled 12-pole motor with dual ball bearings supports extended service life, while the seal design helps reduce shaft wear for easier maintenance. Built for 12V operation with 7A power consumption and a 10A fuse, it provides up to 100 l/min (1600 GPH) straight flow and 98 l/min (1550 GPH) at 1 m head, with compact 108 mm maximum diameter and 149 mm height plus dual 28.5 mm and 32 mm hose connections.
- Description
- Ask a Question
-

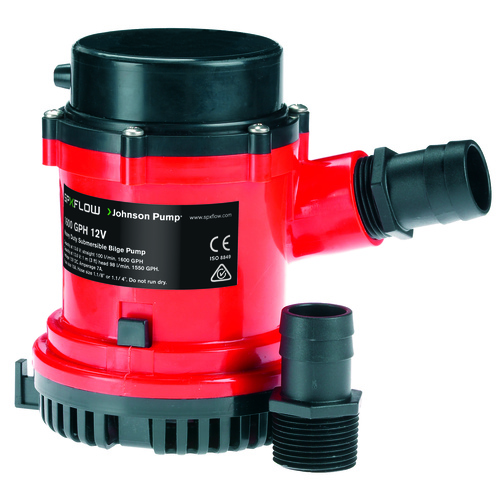

Johnson Pump 32-1600-01 L1600 Heavy Duty Bilge Pump Unit
The Johnson Pump 32-1600-01 is a high-performance, heavy duty submersible bilge pump built to meet the rigorous demands of both recreational and commercial marine applications. With a liquid-cooled motor design and service-friendly construction, it provides efficient bilge water removal in a compact form factor.
Application
- Bilge water removal
- Recreational marine applications
- Commercial marine applications
Technical Specifications
Brand Johnson Pump Part Number 32-1600-01 Article Number 6632160001 EAN 8719182073123 Series Heavy Duty Model L1600 Product Portfolio Submersible bilge pumps Voltage / Current 12V / 7A Fuse 10A Capacity (Straight Flow) 100 l/min (1600 GPH) Capacity at 1 m Head 98 l/min Performance at 0.9 m Delivery Head (13.6V/27V) 98 l/min (1550 GPH) Performance at 0 m Head (13.6V/27V) 100 l/min (1600 GPH) Maximum Head 5 m Maximum Diameter 108 mm Maximum Height 149 mm Weight 1.3 kg Shipping Weight 2.00 kg Cable Diameter 1.3 mm² (16GA) Cable Length 1.8 m (6 ft) Hose Connection Options 28.5 mm (1-1/8 in) and 32 mm (1-1/4 in) Shaft SS2343 Seal Type Lip seal
Product Details
- Motor design: Liquid-cooled 12-pole motor with dual ball bearings
- Seal concept: Mechanical seal described to help prevent shaft wear; seal type listed as lip seal
- Discharge ports: Threaded straight 32 mm (1-1/4 in) and straight 28 mm (1-1/8 in) discharge ports included
- Serviceability: Removable check valve; designed for easy maintenance and replacement
Features
- High-performance, heavy duty submersible bilge pump
- Efficient 12V operation with 7A power consumption and 10A fuse recommendation
- Compact dimensions for flexible installation
- Dual hose connection sizes for installation convenience
-
