ID
1330989
$ 41.51
1-2 weeks delivery time
-
+
The Johnson Pump 32-1015-01 First Mate 400 Series submersible bilge pump delivers reliable bilge water removal with 12V operation and low 2 A current consumption. It provides a stated flow of 30 l/min (400 GPH at 0 m head, 13.6 V/27 V) and is built in a compact, lightweight format (Ø 115 mm x 100 mm, 0.35 kg) with a 3/4" (19 mm) discharge connection and a 5 A fuse for protection. This model is noted as no longer available, with Johnson Pump 10-13626-01 listed as the closest replacement.
- Description
- Ask a Question
-

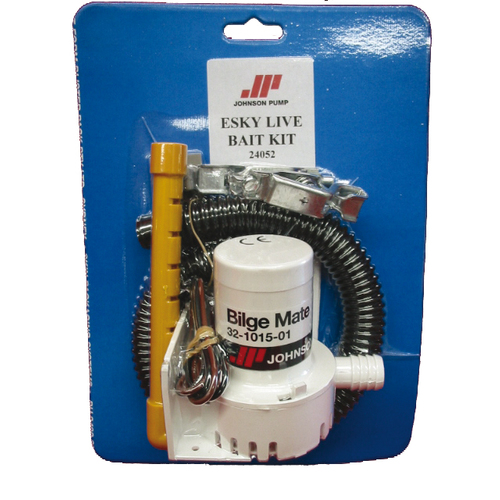

Johnson Pump 32-1015-01 Submersible Bilge Water Removal Unit
The Johnson Pump 32-1015-01 is a submersible bilge pump from the First Mate 400 Series, positioned as a reliable and affordable solution for boat owners who want long life and high performance. It combines compact dimensions with a lightweight build and includes installation and safety elements such as a side mounting bracket and a fuse.
Application
- Bilge water removal on boats
- Submersible bilge pump applications
Technical Specifications
Brand SPX Johnson Pump Part Number 32-1015-01 Article Number 6632101501 Product Portfolio Submersible bilge pumps Rated System Voltage 12 V Operating Voltage (0 m Head) 13.6 V / 27 V Flow Rate 30 l/min Flow Rate (0 m Head) 400 GPH Capacity (Stated) 475 GPH Current Consumption 2 A Fuse 5 A Connection 3/4" (19 mm) Maximum Diameter 115 mm (4.5') Maximum Height 100 mm (4') Dimensions Ø115 x 100 mm Weight 0.35 kg (12 oz.) Shipping Weight 0.60 kg
Product Details
- Also referenced as: Bilge Mate 12V bilge pump
- Motor can be locked in three positions to allow flexible wiring
- Includes an integrated side mounting bracket for easier installation
- Includes a limited 3-year warranty
Features
- Cost-effective alternative focused on long life and high performance
- Low current consumption (2 A) for efficient 12V operation
- 5 A fuse support for added electrical protection
- Compact, lightweight design for space-sensitive bilge installations
Availability and Replacement
- Not available anymore
- Closest replacement: Johnson Pump 10-13626-01
-
