The Johnson Pump 32-1600-02 L1600 bilge dewatering unit is a heavy-duty submersible pump built for demanding marine use on 24 VDC systems. It combines high flow performance (up to 100 l/min straight flow and 98 l/min at 1 m head) with a liquid-cooled 12-pole motor and double ball bearings for long service life. An automatic clip-on contactor starts the pump when water is detected, while the stainless steel shaft (SS2343) and durable thermoplastic body support reliable operation in harsh bilge conditions, with dual hose connections for flexible installation.
- Description
- Ask a Question
-

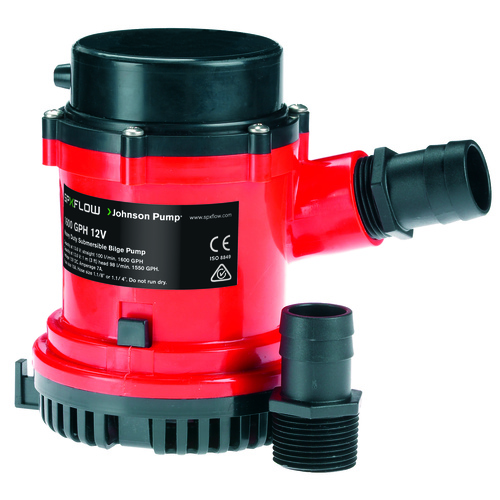

Johnson Pump 32-1600-02 L1600 Submersible Bilge Pump System
The Johnson Pump 32-1600-02 is a high-performance, heavy-duty submersible bilge pump designed to handle tough dewatering demands in both recreational and commercial marine applications. Built around a liquid-cooled motor concept and rugged materials, it supports dependable bilge protection with automatic operation when paired with the clip-on contactor.
Application
- Bilge dewatering for heavy-duty marine applications
- Suitable for recreational and commercial marine use
- Optimized for 24V electrical systems
- Submersible bilge pumps are not self-priming and must be installed at the lowest point of the bilge
Technical Specifications
Manufacturer Reference 32-1600-02 Article Number 6632160002 Model L1600 EAN 8719182073123 Voltage 24 VDC Current Consumption 3.5 A Recommended Fuse 6 A Flow Rate (Stated) 92 l/min Flow at 1 m (Listed) 88 l/min Capacity at 1 m Head 98 l/min Straight Flow Capacity 100 l/min (1600 GPH) Performance at 0.9 m Delivery Height (13.6V / 27V) 98 l/min (1550 GPH) Performance at 0 m Delivery Height (13.6V / 27V) 100 l/min (1600 GPH) Maximum Head 5 m Dimensions Max. Ø108 x 149 mm Height / Maximum Diameter (Listed) 14.9 cm / 10.8 cm Maximum Diameter (Listed) 149 mm Weight 1.3 kg Shipping Weight (Listed) 2.00 kg Hose Connection 1-1/8 in (28.5 mm) and 1-1/4 in (32 mm) Cable Diameter 1.3 mm² (16 GA) Cable Length 1.8 m (6 ft)
Product Details
- Motor: Liquid-cooled 12-pole motor with double ball bearings
- Automatic Operation: Automatic clip-on contactor starts the pump when water is detected in the bilge
- Shaft Material: Stainless steel shaft (SS2343)
- Body Material: Durable thermoplastic body
- Seal: Lip seal (listed); also described with a mechanical seal that helps prevent shaft wear and supports maintenance and replacement
- Discharge Ports: Threaded straight 32 mm (1-1/4 in) and straight 28 mm (1-1/8 in) discharge port included
- Check Valve: Removable check valve
Features
- High-performance, heavy-duty submersible bilge pump
- Designed to meet demanding dewatering requirements
- Versatile mounting options and availability across multiple flow rates (30 to 250 l/min range referenced for the pump series)
- Robust construction for exceptional longevity
-
