Johnson Pump 11-45874-01F - Heavy Duty Bronze Impeller Pump for Fluid Transfer

ID 1331070

$ 4,324.06

1-2 weeks delivery time

- +

Add to cart

The Johnson Pump FIP25 heavy duty impeller pump with bronze body delivers 158 l/min capacity from a 230V single-phase motor and provides dependable self-priming up to 5 m for practical installation in marine and industrial fluid transfer. With a maximum head of 25 m, a 1" connection, and an operating temperature range of 3°C to 80°C, it supports stable performance across varying conditions while the mechanical seal and 13.2 kg build emphasize robust, long-service operation.

Description
Ask a Question

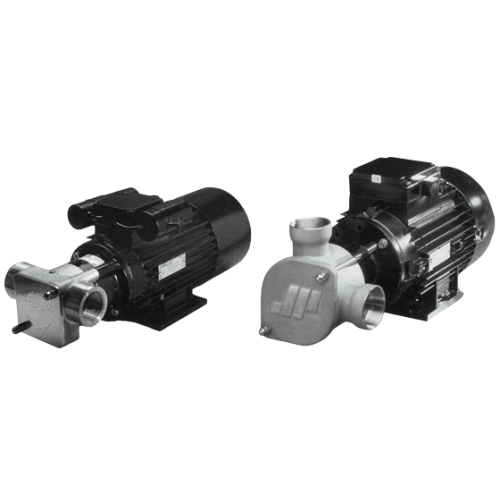

Johnson FIP25 Heavy Duty Bronze Impeller Pump Unit

The Johnson Pump FIP25 is a heavy duty impeller pump built with a bronze body and supplied with a 230V single-phase motor. It is engineered to deliver strong flow performance with self-priming capability, making it a solid choice for demanding fluid transfer and circulation duties.

Application

Fluid circulation and transfer applications
Self-priming installations up to 5 m

Technical Specifications

Article Number	66114587401F
EAN	8719182071686
Model	FIP25-Bronze
Voltage	230V (1-Phase)
Capacity	158 l/min
Self-Priming	Up to 5 m
Max. Head	25 m
Operating Temperature	3°C - 80°C
Connection	1"
Weight	13.2 kg

Product Details

Pump Type: Heavy duty impeller pump
Body Material: Bronze
Seal: Mechanical seal
Motor: 230V single-phase motor

Features

High flow output of 158 l/min for efficient transfer
Self-priming performance up to 5 m to simplify installation
Maximum head of 25 m to support longer runs and elevation changes
Operates within 3°C to 80°C for versatile service conditions
1" connection for straightforward plumbing integration
