Johnson Pump FIP40 - HD Impeller Pump for Harsh Environments

ID 1331074

$ 5,059.11

1-2 weeks delivery time

- +

Add to cart

The Johnson Pump FIP40 heavy-duty impeller pump range delivers 295 l/min flow with a 1-1/2" connection, self-priming performance up to 5 m, and a maximum head of 25 m. It is offered in stainless steel with a 230V single-phase motor (16.7 kg) or bronze with a 400V three-phase motor (18.2 kg), both rated for 3°C to 80°C operation and equipped with a mechanical seal for dependable service in demanding environments.

Description
Ask a Question

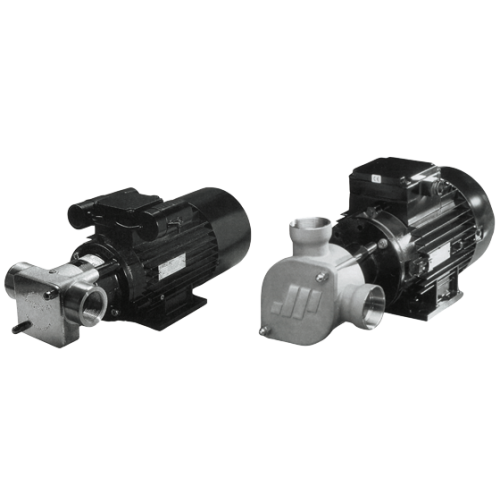

Johnson FIP40 Heavy-Duty Self-Priming Impeller Pump Range

The Johnson Pump FIP40 series is built for applications that need a sturdy, self-priming pump with consistent output in harsh and industrial environments. With the same hydraulic performance across both versions, you can select the material and motor supply that best fits the installation.

Application

Applications requiring a sturdy, self-priming pump
Harsh environments
Industrial environments

Technical Specifications

Specification	FIP40 Stainless Steel (230V)	FIP40 Bronze (400V)
Model	FIP40-Stainless Steel	FIP40-Bronze
Material	Stainless Steel	Bronze
Voltage	230V (1-phase)	400V (3-phase)
Capacity	295 l/min	295 l/min
Connection Size	1-1/2"	1-1/2"
Self-Priming	Up to 5 m	Up to 5 m
Maximum Head	25 m	25 m
Operating Temperature Range	3°C to 80°C	3°C to 80°C
Seal	Mechanical seal	Mechanical seal
Weight	16.7 kg	18.2 kg
Article Number	66111321401F	66114588003F
EAN	8719182071686	8719182071686

Product Details

Pump Type: HD impeller pump
Performance: 295 l/min capacity with self-priming up to 5 m and 25 m maximum head
Connections: 1-1/2" connection size

Features

Self-priming capability up to 5 m for faster starts and easier installation
Mechanical seal included for dependable operation
Choice of stainless steel (corrosion resistance and durability) or bronze (robust construction)
