The Johnson Pump 10-32058-1 flexible impeller cooling-water pump (F5B-9) is a self-priming bronze engine cooling unit for Volvo Penta applications, built with a neoprene impeller and a flange mount for secure installation. It supports 1-1/4 inch hose inlet and outlet connections, can lift water up to 3 meters for easier system layout, and is designed with replaceable wear parts with service kits available for standard models.
- Description
- Ask a Question
-

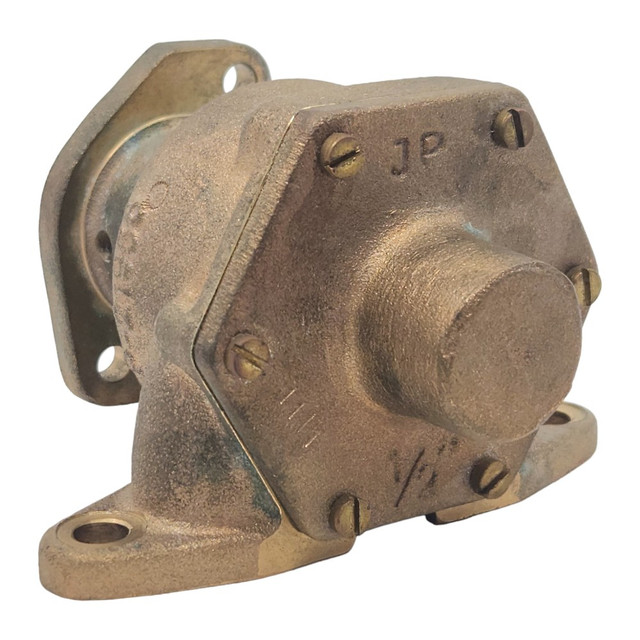

Johnson Pump 10-32058-1 F5B-9 Engine Cooling Impeller Pump
The Johnson Pump 10-32058-1 is a self-priming, flexible impeller engine cooling water pump built for marine inboard cooling duties. With a bronze construction and flange mounting, it supports robust, long-lasting operation while keeping maintenance straightforward through replaceable wear components and available service kits.
Application
- Engine cooling pump for marine inboard cooling systems
- Designed for Volvo Penta engines
- Replacement for OEM part number 831178
Compatibility
- Volvo Penta engines
Technical Specifications
Brand Johnson Pump Part Number 10-32058-1 Model F5B-9 Product Portfolio Impeller Pumps OEM Part Number 831178 Article Number 6610320581 Material Bronze Mounting Type Flange Connection Flange Adapter Impeller Material Neoprene Impeller Hub Spline Drive Drive/Shaft End Double Flat Drive Inlet Port 1-1/4 Inch Hose Inlet Discharge Port 1-1/4 Inch Hose Outlet Self-Priming Lift Up to 3 meters Maximum Capacity Up to 625 liters/min (9900 gal/hr) Shipping Weight 1.40 kg Availability Not available anymore Alternative Part Number Johnson Pump 10-32058-11
Product Details
- Self-priming operation helps simplify installation by reducing the need to mount below the waterline or manually prime.
- Flexible impeller design is described as capable of handling large solids without clogging.
- Serviceability is supported by easily replaceable wear parts and available service kits for standard models.
- Operating note: flexible impeller pumps should not be run dry for more than 30 seconds; the impeller and seals rely on water for lubrication.
Features
- Self-priming (water lift up to 3 meters)
- Bronze construction
- Neoprene impeller
- Flange-mounted design with flange adapter connection
- Maximum capacity up to 625 liters/min (9900 gal/hr)
-
