ID
1330958
$ 495.52
1-2 weeks delivery time
-
+
The Johnson Pump 10-24664-10 CM90P7 magnetic-drive circulating pump delivers heavy-duty, seal-less circulation for fresh water or water/glycol mixtures (up to 60% glycol) and is constructed for continuous operation. A waterproof and dustproof IP67 DC motor (12/24 V DC, with versions optimized for 24V systems) supports reliable service in vehicle and marine environments, with built-in thermal overload protection, high starting torque, and up to 30 minutes dry-running capability. With hose connections specified for 38 mm and additional connection options listed, it provides up to 115 litres per minute flow and handles liquid temperatures from -40°C to +100°C and system pressure up to 2.5 bar.
- Description
- Ask a Question
-

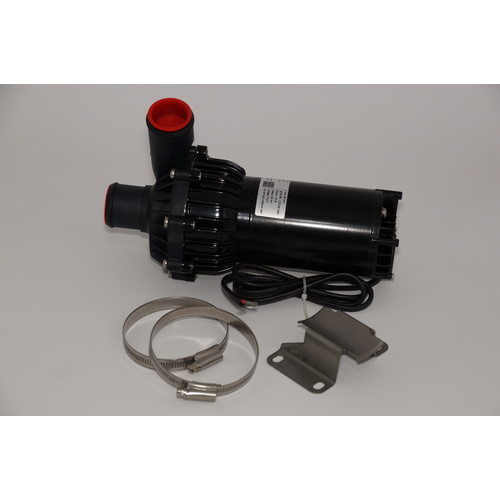

Johnson Pump 10-24664-10 CM90P7 Magnetic-Drive Circulation Unit
The Johnson Pump 10-24664-10 is a heavy-duty, seal-less centrifugal circulating pump built for continuous circulation in heating and cooling circuits. Its magnetic-drive design supports leak-proof operation, while an IP67-rated DC motor helps protect performance in demanding vehicle and marine installations.
Application
- Circulation of water/antifreeze in heating systems
- Circulation for cooling fresh water/coolants in vehicles
- Suitable for cars
- Suitable for boats
- Suitable for recreation vehicles
- Suitable for trains
- Suitable for buses
- Suitable for commercial vehicles
- Suitable for motorhomes
- Can be a direct replacement for many original equipment intercooler circulation pumps
Technical Specifications
Pump Type Magnetic-driven, seal-less centrifugal circulating pump (non-self-priming; requires flooded suction) Rated Voltage 12/24 V DC (24V DC motor listed with nominal voltage 27.2V) Motor Protection IP67 (waterproof and dustproof) Motor Construction Permanent magnet, ball-bearing motor; brush motor with permanently lubricated ball bearings; constructed for continuous operation Thermal Protection Built-in thermal overload protection Flow Rate 115 litres/min at 0.1 bar; 85 litres/min at 0.25 bar Maximum Power Consumption 125 W Electrical (Listed) Amperage 4.6 A; fuse size 6 A Permitted Liquids Pure fresh water; water/glycol mixture (also stated as water/glucol mixture), maximum 60% glycol Liquid Temperature Range -40°C to +100°C Ambient Temperature Range -40°C to +90°C System Pressure Maximum 2.5 bar; range -0.2 to +2.5 bar; stationary maximum 4.0 bar Dry Running Maximum 30 minutes Hose Connection (Listed) Diameter 20 mm (3/4 inch) or diameter 38 mm (1 1/4 inch) Hose Connection (Design) For diameter 38 mm (1 1/2 inch) hose inner diameter Dimensions Length 253 mm; width 120 mm; height 149.5 mm (also listed as length 25.3 cm, width 12.0 cm, height 15.0 cm) Weight (Listed) 3.9 kg (8.6 lbs) Weight (Alternative Listing) 3.0 kg Shipping Weight (Listed) 3.50 kg EAN 8719182066941 Article Number (Listed) 66102466402
Product Details
- Pump housing: PPA thermoplastic
- Impeller: PA12 thermoplastic
- Shaft: Stainless steel
- Mounting: Universal bracket for flat mounting (included; also described as separate universal bracket)
Features
- Seal-less, leak-proof magnetic drive for cleaner, more dependable circulation
- IP67-rated DC motor for use in vehicle and marine environments
- Continuous-duty construction with permanently lubricated ball bearings (rated for up to 10,000 hours continuous use)
- High torque supports reliable starting under difficult conditions
- Dry-run tolerance up to 30 minutes
-
