ID
1330957
$ 495.52
1-2 weeks delivery time
-
+
The Johnson Pump 10-24664-09 circulation pump is a heavy-duty, magnetic-driven, seal-less unit built for continuous operation in heating and cooling systems. It runs on 12/24 V DC (12 V DC motor listed with nominal voltage 13.6 V) with IP67 motor protection and built-in thermal overload protection, delivering up to 115 liters per minute while handling fresh water or water/glycol mixtures up to 60% glycol across a -40°C to +100°C liquid temperature range.
- Description
- Ask a Question
-

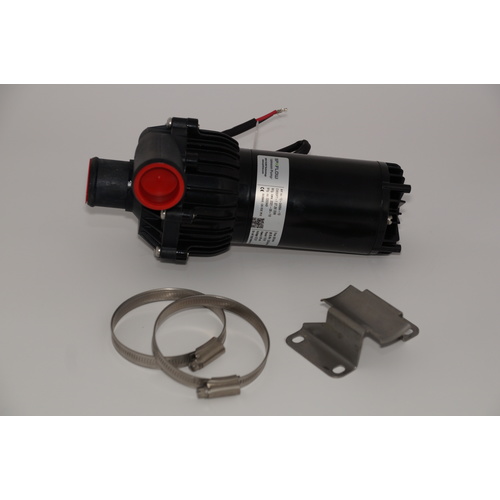

Johnson Pump 10-24664-09 CM90 Circulation Unit
The Johnson Pump 10-24664-09 CM90 series circulation pump is designed to keep heating and cooling circuits moving reliably in demanding mobile and marine environments. Its magnetic-driven, seal-less construction supports leak-resistant circulation, while the IP67-rated DC motor is intended for continuous duty operation.
Application
- Circulation of water or antifreeze in vehicle heating systems
- Circulation for cooling fresh water or coolants in vehicles
- Suitable for cars
- Suitable for boats
- Suitable for recreational vehicles
- Suitable for motorhomes
- Suitable for trains
- Suitable for buses
- Suitable for commercial vehicles
- Can be a direct replacement for many original equipment intercooler circulation pumps
Technical Specifications
Product Type Circulation pump Series / Model CM90P7-1 (CM90) Motor Voltage 12/24 V DC (12 V DC motor listed with nominal voltage 13.6 V) Motor Protection IP67 Power Consumption Max. 125 W Amperage 10 A Recommended Fuse Size 12 A Flow Rate 115 liters/min at 0.1 bar; 85 liters/min at 0.25 bar System Pressure Max. 2.5 bar System Pressure Range -0.2 to +2.5 bar; stationary max. 4.0 bar Compatible Liquids Fresh water; water/glycol mixtures up to 60% glycol Liquid Temperature Range -40°C to +100°C Ambient Operating Temperature Range -40°C to +90°C Dry Running Tolerance Max. 30 minutes Priming Non-self-priming; requires flooded suction Hose Connection Options 20 mm (3/4 in) or 38 mm (1 1/4 in) Connection Note Connection fits 38 mm (1 1/2 in) hose inner diameter Length 253 mm Width 120 mm Height 149.5 mm (also listed as 15.0 cm) Weight 3.9 kg (also listed as 3.0 kg) Shipping Weight 3.50 kg EAN 8719182066941 Article Number 66102466401
Product Details
- Pump housing material: PPA thermoplastic
- Impeller material: PA12 thermoplastic
- Shaft material: Stainless steel
- Motor design: Permanent magnet, ball-bearing motor; brushed motor; constructed for continuous operation
- Mounting: Universal bracket for flat mounting (included)
Features
- Heavy-duty magnetic-driven, seal-less design for leak-resistant operation
- IP67 waterproof and dustproof DC motor for continuous use
- Built-in thermal overload protection
- High torque motor for reliable starts under difficult conditions
- Up to 10,000 hours uninterrupted service rating (as listed)
-
