ID
1330941
$ 234.63
1-2 weeks delivery time
-
+
The SPX Johnson Pump 10-24501-04 circulation pump delivers efficient circulation of water and antifreeze for heating systems and cooling applications in vehicles including cars, boats, and recreational vehicles. Its heavy-duty, magnetic-driven, seal-less design provides leak-proof operation with a 24V DC brushed motor rated for up to 5000 hours of continuous service, IP67 water and dust protection, and high torque for reliable starts. Designed for flooded suction (non-self-priming), it provides up to 15 l/min at 0.1 bar (12 l/min at 0.15 bar), withstands dry running for up to 30 minutes, and supports fresh water or water/glycol mixtures up to 60% glycol across a -40°C to +100°C liquid temperature range.
- Description
- Ask a Question
-

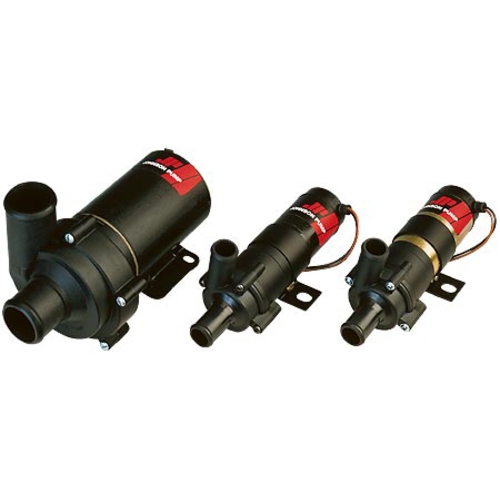

SPX Johnson Pump 10-24501-04 Magnetic-Drive 24V Circulation Unit
The SPX Johnson Pump 10-24501-04 is a heavy-duty circulation pump built for dependable fluid movement in heating and cooling circuits. With a magnetic-driven, seal-less construction for leak-proof operation and an included universal mounting bracket, it supports demanding installations where continuous circulation of water or antifreeze is required.
Application
- Circulation of water and antifreeze in vehicle heating systems
- Circulation for cooling of fresh water and coolants in vehicles
Compatibility
- Cars
- Boats
- Recreational vehicles
- Motorhomes
- Trains
- Buses
- Commercial vehicles
- Intercooler circulation pump replacement applications (original equipment replacement for many systems)
Technical Specifications
Brand SPX Johnson Pump Product Portfolio Circulation Pumps Model / Type CM10P7-1 Voltage 24V DC Amperage 0.6 A Recommended Fuse 0.8 A Flow Rate 15 l/min at 0.1 bar; 12 l/min at 0.15 bar Maximum System Pressure 2.5 bar Ingress Protection IP67 (waterproof and dust-proof) Dry-Running Tolerance Up to 30 minutes Liquid Compatibility Fresh water; water/glycol mixture (max 60% glycol) Liquid Temperature Range -40°C to +100°C Ambient Operating Temperature -40°C to +70°C Hose Connection 5/8 in hose connection; Ø16 mm inner diameter Additional Hose Connection Listed Ø20 mm (3/4 in) Dimensions (L × W × H) 177 mm × 68 mm × 85 mm Weight 0.53 kg Shipping Weight 0.90 kg Service Life Rating Up to 5000 hours continuous use Power Consumption (Listed for CM10) Max 14 W Article Number 66102450104 EAN 8719182065142 Spare Parts Available
Product Details
- Drive concept: Heavy-duty, magnetic-driven, seal-less (leak-proof)
- Motor: Brushed DC motor with permanently lubricated ball bearings; permanent magnet; designed for continuous operation
- Start behavior: High torque for safe starts under difficult conditions
- Priming: Non-self-priming; requires flooded suction
- Materials (listed): Pump housing PPA plastic; impeller PPA plastic; stainless steel shaft
- Mounting: Universal bracket included for flat-surface mounting
Features
- Leak-proof operation through a seal-less magnetic drive
- IP67-rated motor protection for wet and dusty environments
- Supports fresh water and water/glycol mixtures up to 60% glycol
- Rated for up to 5000 hours of continuous service
- Withstands dry running for up to 30 minutes
-
