ID
1330945
$ 253.37
1-2 weeks delivery time
-
+
The Johnson Pump 10-24504-04 CM30P7-1 circulation unit delivers continuous-duty fluid circulation on 24V DC with IP67 protection for demanding marine and vehicle environments. Its magnetic-driven, seal-less (leak-proof) design supports fresh water or water/glycol mixtures up to 60% glycol, with liquid temperatures from -40°C to +100°C and a maximum system pressure of 2.5 bar. With a Ø20 mm (3/4") hose connection, dry-running capability up to 30 minutes, and up to 26.0 l/min flow at 0.1 bar, it provides reliable circulation for heating and cooling circuits while using durable materials such as a PPA plastic housing/impeller and a stainless steel shaft.
- Description
- Ask a Question
-

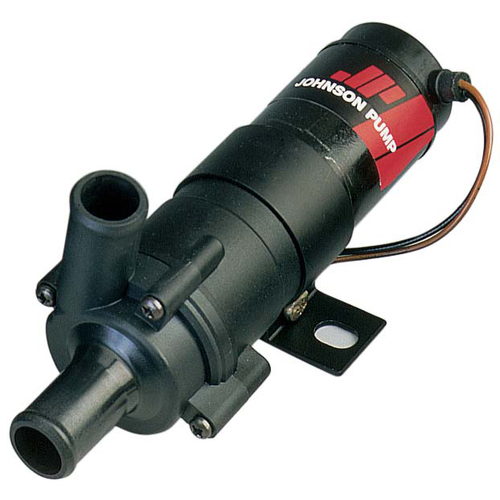

Johnson Pump 10-24504-04 CM30P7-1 24V Circulation Unit
The Johnson Pump 10-24504-04 is a heavy-duty circulation pump built for continuous operation in heating and cooling circuits. Featuring a magnetic-driven, seal-less (leak-proof) design and IP67 motor protection, it is engineered to circulate fresh water or water/glycol mixtures in marine and vehicle applications.
Application
- Circulation of water/antifreeze in heating systems for cars
- Circulation of water/antifreeze in heating systems for boats
- Circulation of water/antifreeze in heating systems for recreational vehicles
- Circulation for cooling fresh water and coolants in vehicles
- Suitable for heating and cooling systems on boats
- Suitable for heating and cooling systems on trains
- Suitable for heating and cooling systems on buses
- Suitable for heating and cooling systems on commercial vehicles
- Suitable for heating and cooling systems on motorhomes
Technical Specifications
Model CM30P7-1 Part Number 10-24504-04 Article Number 66102450404 EAN 8719182065449 Voltage 24V DC (motor specified as 12/24V DC) Ingress Protection IP67 Flow Rate 26.0 l/min at 0.1 bar; 19.5 l/min at 0.2 bar Maximum System Pressure 2.5 bar Suitable Liquids Fresh water; water/glycol mixture (maximum 60% glycol) Liquid Temperature Range -40°C to +100°C Ambient Temperature Range -40°C to +70°C Hose Connection Ø 16 mm or Ø 20 mm (3/4") Dry Running Maximum 30 minutes Power Consumption Maximum 27W (CM30) Current Draw 1.1A Recommended Fuse Size 1.6A Mounting Universal holder/bracket; flat mounting position Dimensions (L x W x H) 177 mm x 68 mm x 85 mm (17.7 cm x 6.8 cm x 8.5 cm) Weight 0.60 kg (1.3 lbs) Shipping Weight 1.00 kg
Product Details
- Pump housing: PPA plastic
- Impeller: PPA plastic
- Shaft: Stainless steel
- Motor design: Permanent magnet; ball-bearing; brush motor
- Service rating: Up to 5000 hours of uninterrupted service (brush motor)
- Hydraulic note: Non-self-priming; requires flooded suction
Features
- Constructed for continuous operation
- Magnetic-driven, seal-less (leak-proof) heavy-duty design
- IP67 waterproof and dustproof motor protection
- High torque for reliable starting in difficult conditions
- Withstands dry running for up to 30 minutes
- Universal mounting bracket included for flat surfaces
-
