$ 531.97
1-2 weeks delivery time
-
+

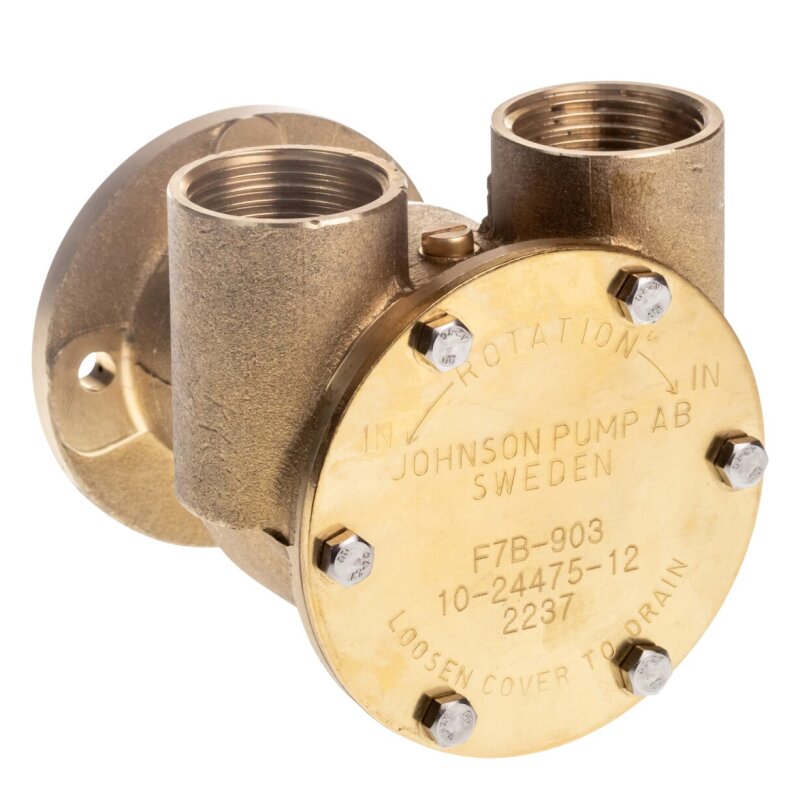

The Johnson Pump 10-24475-12 bronze impeller pump is a self-priming cooling water unit in size F7, built in a 2/3 cam version for dependable operation. Its bronze pump body supports flange mounting, while the ISO 7/1 Rp1 threaded ports simplify integration into compatible plumbing. The pump is driven via a tapered mount with lock nut (M10 thread) and is supplied with an MC97 impeller, making it a frequently used choice for Lombardini GENSET V3800 and LDW 2204 MD applications.
- Description
- Ask a Question
-
Johnson Pump 10-24475-12 Self-Priming Bronze Impeller Unit
The Johnson Pump 10-24475-12 is a self-priming cooling water impeller pump designed for marine and generator set cooling-water circulation needs. Built with a bronze body and a flange mounting configuration, it supports robust installation and long service life in demanding environments.
Application
- Cooling water pump (size F7)
- Frequently used on Lombardini GENSET V3800
- Frequently used on Lombardini LDW 2204 MD
Compatibility
- Lombardini GENSET V3800
- Lombardini LDW 2204 MD
Technical Specifications
Brand Johnson Pump Part Number 10-24475-12 Pump Type Impeller pump Application Type Cooling water pump Size F7 Cam Version 2/3 Material Bronze Mounting Type Flange Connection ISO 7/1 Rp1 threaded connections Impeller Hub Spline Drive Drive / Shaft End Tapered mount / lock nut
Product Details
- Version: Flange version
- Drive interface: Conical mount / shaft end with M10 thread for lock nut
- Supplied with: MC97 impeller
- Manual / spare part overview: English
Features
- Self-priming cooling water pump design (size F7)
- Bronze pump body supports durable service and flange mounting
- ISO 7/1 Rp1 ports for standardized threaded connections
- Spline-drive impeller hub with tapered mount and lock nut drive arrangement
Alternative Part References
- Johnson Pump Marine 10-24475-02 (OEM)
- Johnson Pump 10-24475-12 (Open Market)
- Lombardini 65844400
-
