ID
1330944
$ 253.37
1-2 weeks delivery time
-
+
The Johnson Pump 10-24504-03 circulation pump is built for continuous-duty fluid circulation in heating and cooling systems, using a seal-less magnetic drive design with an IP67-protected DC motor. It supports fresh water and water/glycol mixtures up to 60% glycol, handles liquid temperatures from -40°C to +100°C, and withstands up to 2.5 bar system pressure. With up to 26.0 l/min flow performance, Ø16 mm or Ø20 mm hose connections, and a universal holder for flat mounting, it delivers robust, compact installation for demanding applications.
- Description
- Ask a Question
-

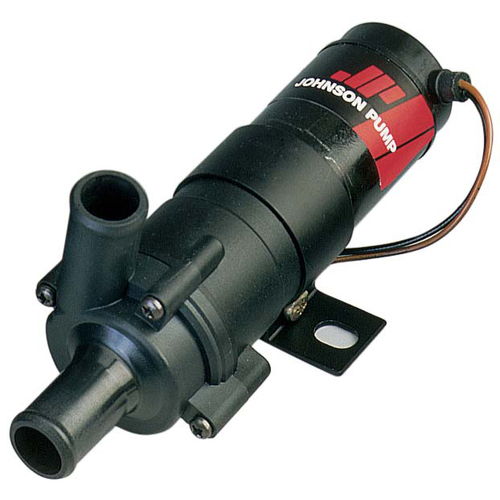

Johnson Pump 10-24504-03 Continuous-Duty Circulation Unit
The Johnson Pump 10-24504-03 is a heavy-duty circulation pump engineered for reliable liquid circulation in heating and cooling systems. It combines a compact form factor with a seal-less, magnetic drive concept and an IP67-protected DC motor to support dependable operation in demanding installations.
Application
- Circulation of water/antifreeze in heating systems for cars, boats, and recreational vehicles
- Circulation for cooling fresh water and coolants in vehicles
- Requires flooded suction (non-self-priming)
Compatibility
- Compatible liquids: fresh water
- Compatible liquids: water/glycol mixture (maximum 60% glycol)
Technical Specifications
Brand Johnson Pump Part Number 10-24504-03 Model CM30P7-1 Article Number 66102450403 EAN 8719182065449 Voltage 12V DC (motor listed as 12/24V DC) Ingress Protection IP67 Power Consumption Maximum 27W (CM30) Amperage 2.2A Fuse Size 3.0A Flow Rate 26.0 l/min at 0.1 bar; 19.5 l/min at 0.2 bar Maximum System Pressure 2.5 bar Liquid Temperature Range -40°C to +100°C Ambient Operating Temperature -40°C to +70°C Hose Connection Options Ø16 mm or Ø20 mm (3/4 inch) Dry Running Capability Maximum 30 minutes Dimensions (L x W x H) 177 mm x 68 mm x 85 mm Weight 0.6 kg Shipping Weight 1.00 kg
Product Details
- Pump housing: PPA plastic
- Impeller: PPA plastic
- Shaft: stainless steel
- Drive concept: magnetic driven, seal-less (leak-proof)
- Motor type: permanent magnet, ball-bearing brush motor
- Service rating: up to 5000 hours of uninterrupted service (as listed)
- Mounting: universal holder / separate universal bracket for flat surfaces
Features
- Designed for continuous operation
- High torque supports reliable starts under difficult conditions
- Waterproof and dustproof construction (IP67)
- Compact size for flexible installation
-
